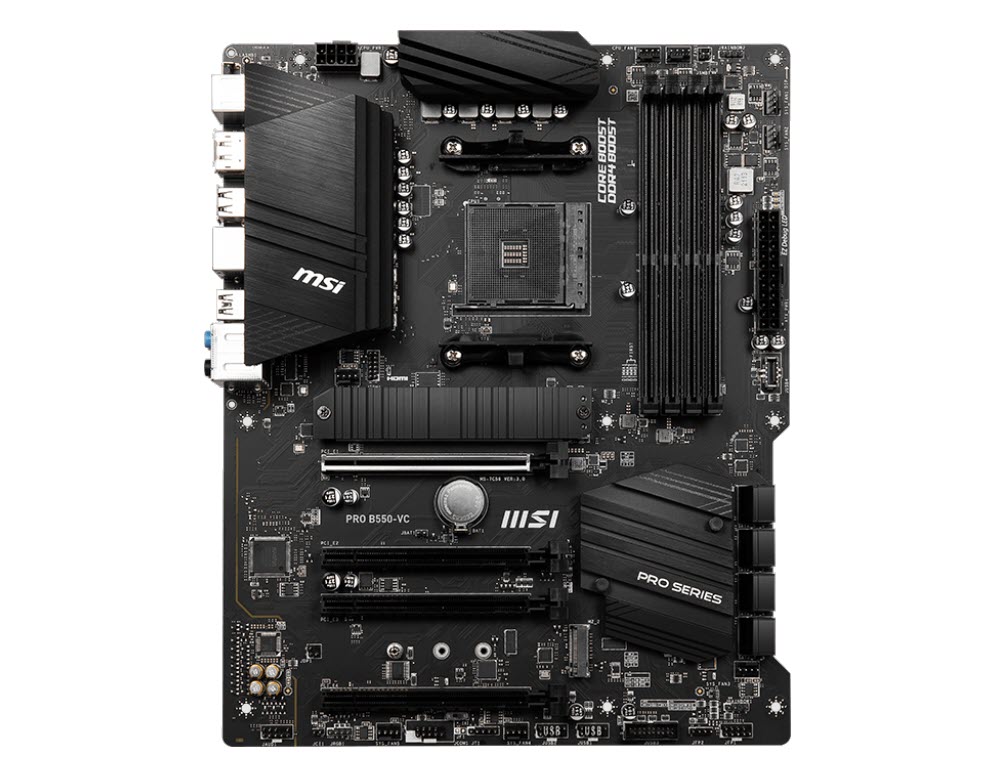

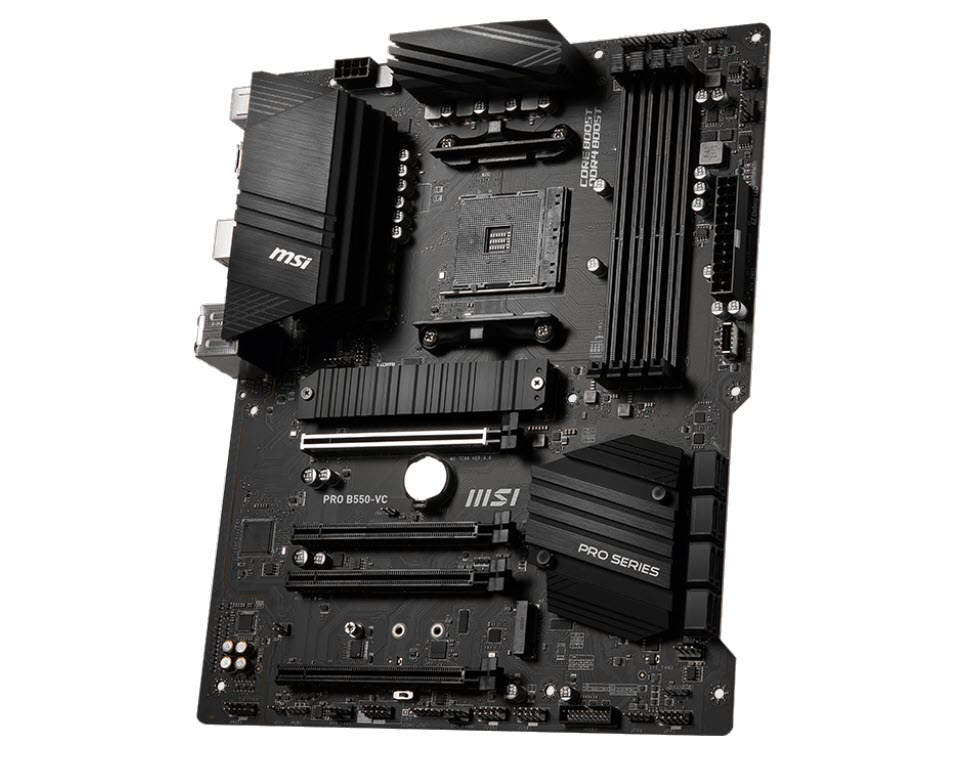

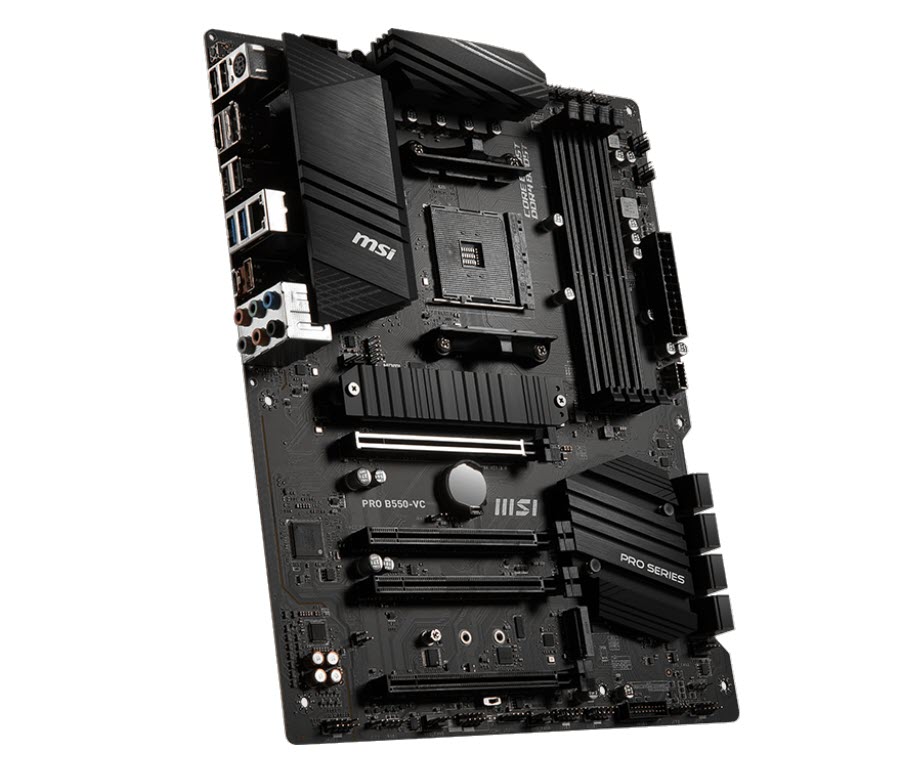

MSI Pro B550-VC

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Form Factor

• ATX Form Factor, 12 in. x 9.6 in.

CPU

• Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Chipset

• AMD B550 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE, 1DPC 1R Max speed 4800 MHz, 1DPC 2R max speed 3866 MHZ, 2DPC 1R max speed 4000 MHZ, 2DPC 2R max speed 3600 MHZ, Dual channel memory architecture, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory (non-ECC mode), Supports un-buffered memory

Graphics

• 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz, Support HDCP 1.4 & 2.3, 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz, Maximum shared memory of 16 GB

Multi-GPU

• Supports 2-Way AMD CrossFire™ Technology

Expansion Slots

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1, 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2, 2x PCIe 3.0 x1 slots, 1- The supported specification depends on installed processor. 2- When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

Storage

• 6x SATA 6Gb/s ports, 2x M.2 slots (Key M), M2_1 slot (from AMD Processor), Supports PCIe 4.0/ 3.0 x4, Supports SATA 6GB/s, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot (from AMD B550 chipset), Supports PCIe 3.0x4, Supports 2242/ 2260/ 2280 storage devices, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN

• 1x Realtek® 8111H Gigabit LAN controller

Audio

• Realtek® ALC892/ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

• AMD B550 Chipset; 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector), 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors), AMD Processor; 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel), 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

OS Support

• Windows 10 64 bit

Internal I/O Ports

• 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 1xTPM module connector, 1x Clear CMOS jumper

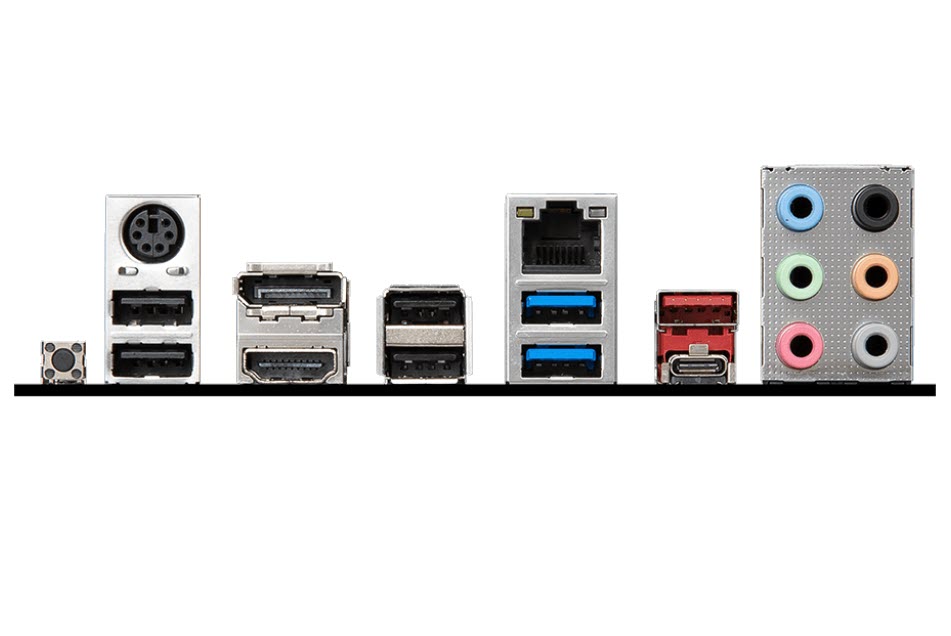

Back I/O Ports

• Keyboard / Mouse, DisplayPort, LAN Port, 5 x HD Audio Connectors, Flash BIOS Button, 4 x USB 2.0, HDMI, 2 x USB 3.2 Gen 1 5Gbps Type-A, 1 x USB 3.2 Gen 2 10Gbps Type-A, 1 x USB 3.2 Gen 2 10Gbps Type-C
