MSI PRO B660M-P DDR4 - mATX, s1700, 4xDDR4, 1xM.2, 1xVGA, 1xHDMI, 1xDP
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
MSI
Manufacturer #:
PROB660MPD4
Part Status:
Phase-Out
Milwaukee PC SKU:
264551
Price:
$124.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1700
Brand: MSI
Chipset Manufacture: Intel / B660
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 1 Slots
NVMe Support: No
eSata Ports: None
USB C Ports: 1 Port
USB 3.x Ports (3.0 or higher): 1 Port
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 2.0 Ports: 4 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
VGA Ports: 1 Port
DVI Ports: NONE
HDMI Ports: 1 Ports

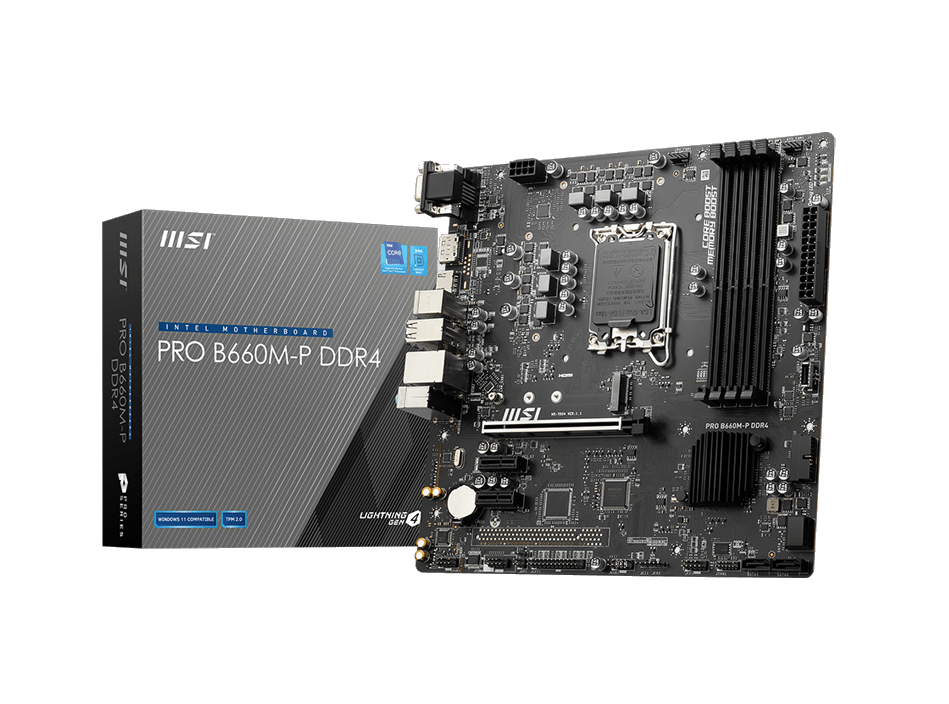

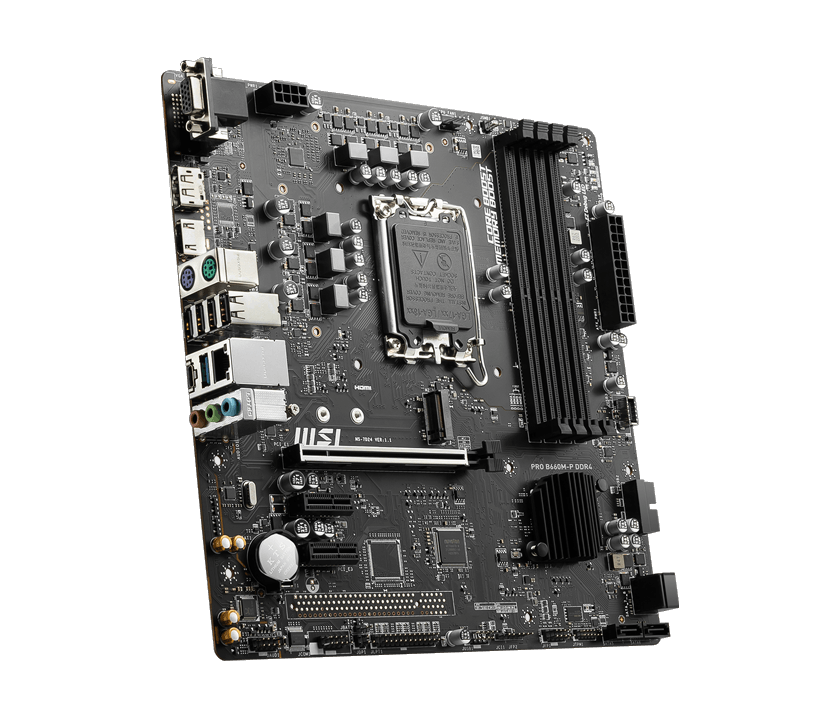

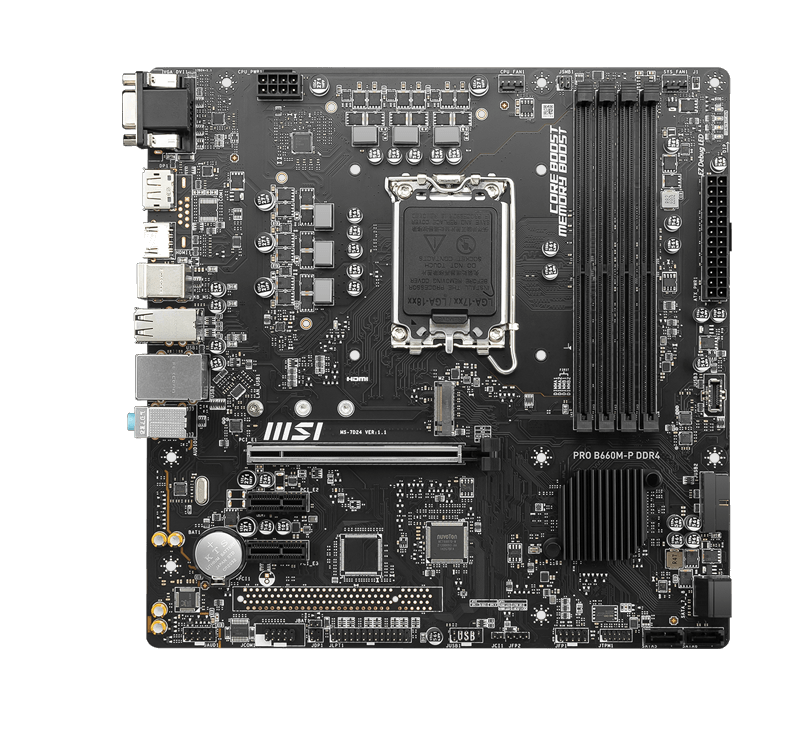

MSI PRO B660M-P DDR4

Form Factor

  • M-ATX Form Factor, 9.6 in. x 9.6 in.

CPU

  • Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, Processor socket LGA1700

Chipset

  • Intel® B660 chipset

Memory

  • 4x DDR4 memory slots, supporting up to 128GB, Supports 1R 2133/2666/3200 MHz (by JEDEC & POR), Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz, 1DPC 2R Max speed up to 4000+ MHz, 2DPC 1R Max speed up to 4000+ MHz, 2DPC 2R Max speed up to 3600+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP)

Graphics

  • 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz, 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz, 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Expansion Slots

  • 1x PCIe x16 slot, PCI_E1 (From CPU), Supports up to PCIe 4.0 x16, 2x PCIe x1 slots, PCI_E2 & PCI_E3 (Fom B660 chipset), Supports up to PCIe 3.0

Storage

  • 4x SATA 6Gb/s ports (From B660 chipset) 1, 1x M.2 slot (Key M), M2_1 slot (From B660 Chipset), Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices, SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

  • 1x Realtek® RTL8111H 1Gbps LAN controller

Audio

  • Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

  • 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset), 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset), Supports additional 2 USB 3.2 Gen 1 5Gbps ports, 1x USB 2.0 Type-A connector (From B660 chipset), Supports additional 2 USB 2.0 ports

OS Support

  • Windows 10 64 bit

Internal I/O Ports

  • 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 1x parallel port connector, 1x Serial port, 1x Clear CMOS jumper

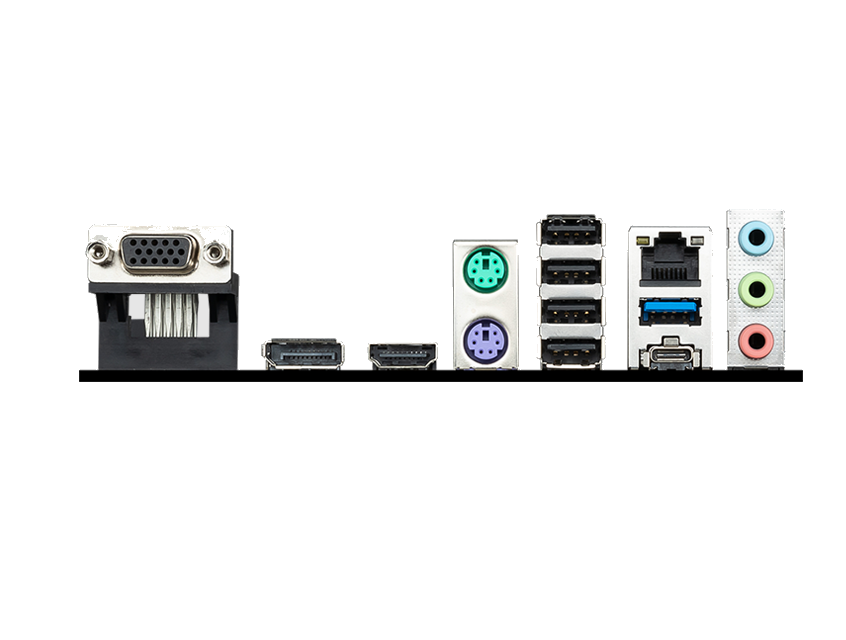

Back I/O Ports

  • VGA, DisplayPort, HDMI, Keyboard / Mouse, 4 x USB 2.0 Ports, LAN Port, 3 x Audio Connectors, 1 x USB 3.2 Gen 2 10Gbps Type-C, 1 x USB 3.2 Gen 1 5Gbps Type-A

LED Feature

  • 4x EZ Debug LED
