Gigabyte X570S AORUS MASTER - ATX, AM4, 4xDDR4, 3xM.2, AMD Quad-GPU CrossFire, 2-Way AMD CrossFire
Product Type:
Motherboards
Type Detail:
AMD Socket AM4
Manufacturer:
Gigabyte
Manufacturer #:
X570SAORUSMASTER
Part Status:
Discontinued
Milwaukee PC SKU:
264522
Price:
$526.99

Quick Tech Specs

Processor Manufacture: AMD
Socket: AM4
Brand: Gigabyte
Chipset Manufacture: AMD / X570
Form Factor: ATX
SLI Support: NONE
Crossfire Support: YES / Quad-GPU CrossFire
Number of Memory Slots: 4 Slots
Max Memory: 128GB
Memory Type: DDR4
PCI Express x16 Slots: 3 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.2
RAID Support: RAID 0/1/10
M.2 Slots: 3 Slots
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
NVMe Support: Yes
eSata Ports: None
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 4 Ports
Display Ports: NONE
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: None
Network Ports: 2.5 Gigabit
USB 3.x Ports (3.0 or higher): 7 Ports
Legacy Ports: NONE
USB C Ports: 1 Port

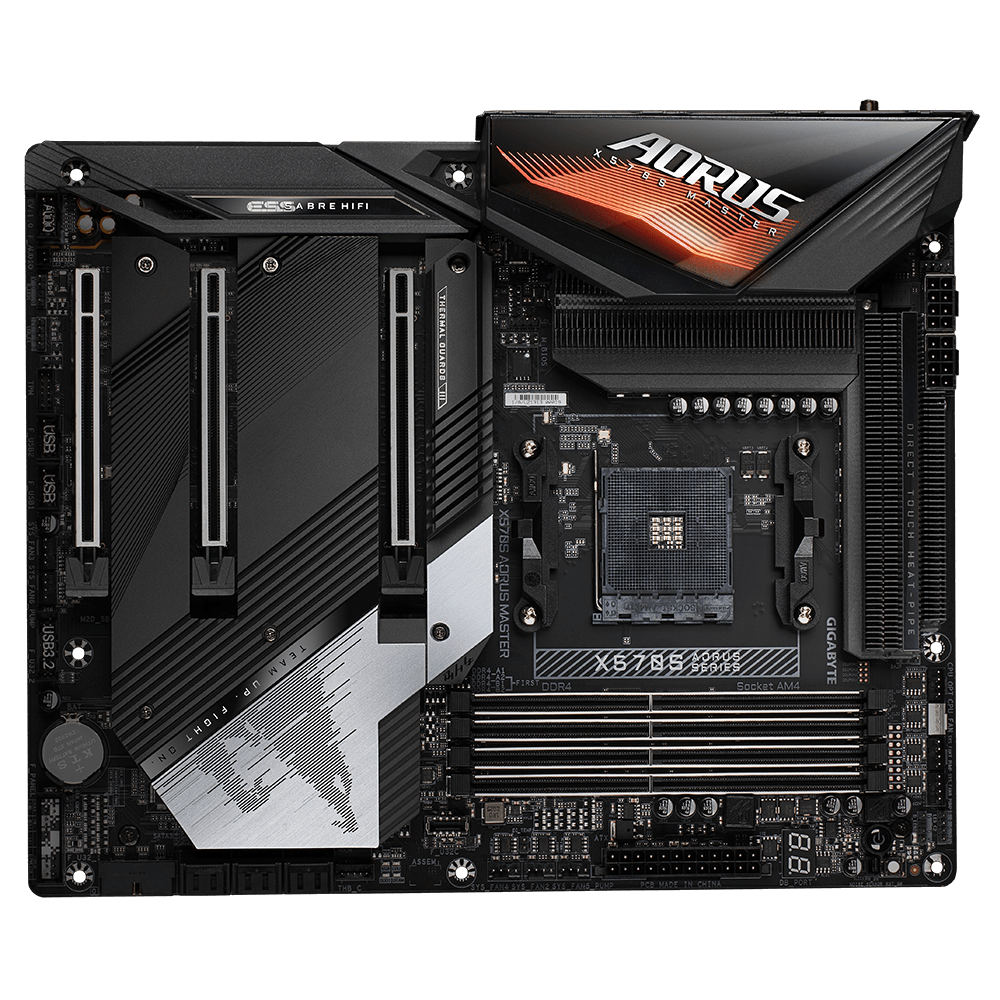

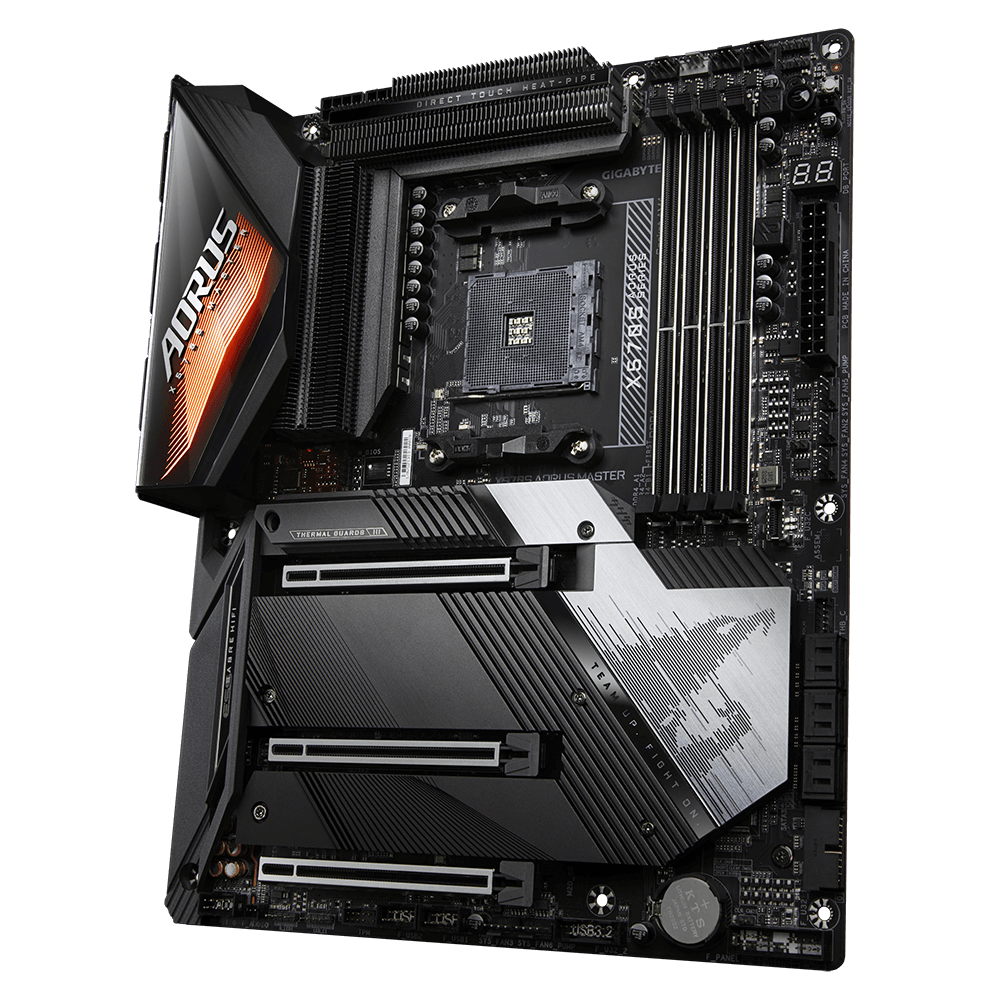

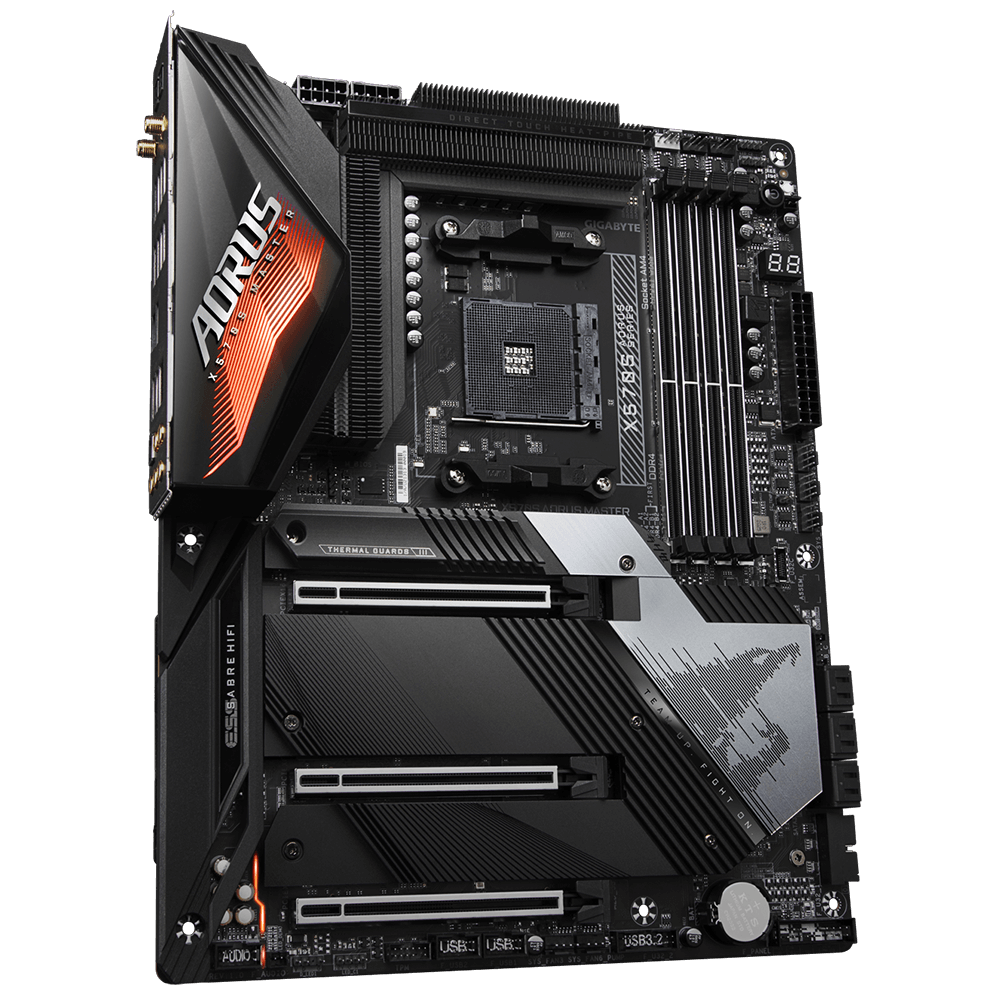

Gigabyte X570S AORUS MASTER

Form Factor

  • ATX Form Factor; 30.5cm x 24.4cm

CPU

  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors

Chipset

  • AMD X570

Memory

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*, * ECC memory (ECC mode) support varies by CPU, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Multi-Graphics Technology

  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies, For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.

Expansion Slots

  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 mode, AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 mode, AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode, 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 mode, AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 mode, AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot, * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0* /3.0 x4 mode

Storage

  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs, 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs, * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs, * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10

LAN

  • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

  • Intel® Wi-Fi 6E AX210, WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.2, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Audio

  • Realtek® ALC1220-VB audio CODEC, * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip, Support for DTS:X® Ultra, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out

USB Ports

  • CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 2 x USB 3.2 Gen 1 ports on the back panel, Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support, Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header, 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 4 x USB 3.2 Gen 1 ports, available through the internal USB headers, Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

OS Support

  • Windows 10 64-bit

Internal I/O Ports

  • 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 4 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 4 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x noise detection header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Thunderbolt™ add-in card connector, 2 x temperature sensor headers, 1 x power button, 1 x reset button, 1 x Clear CMOS jumper, Voltage Measurement Points

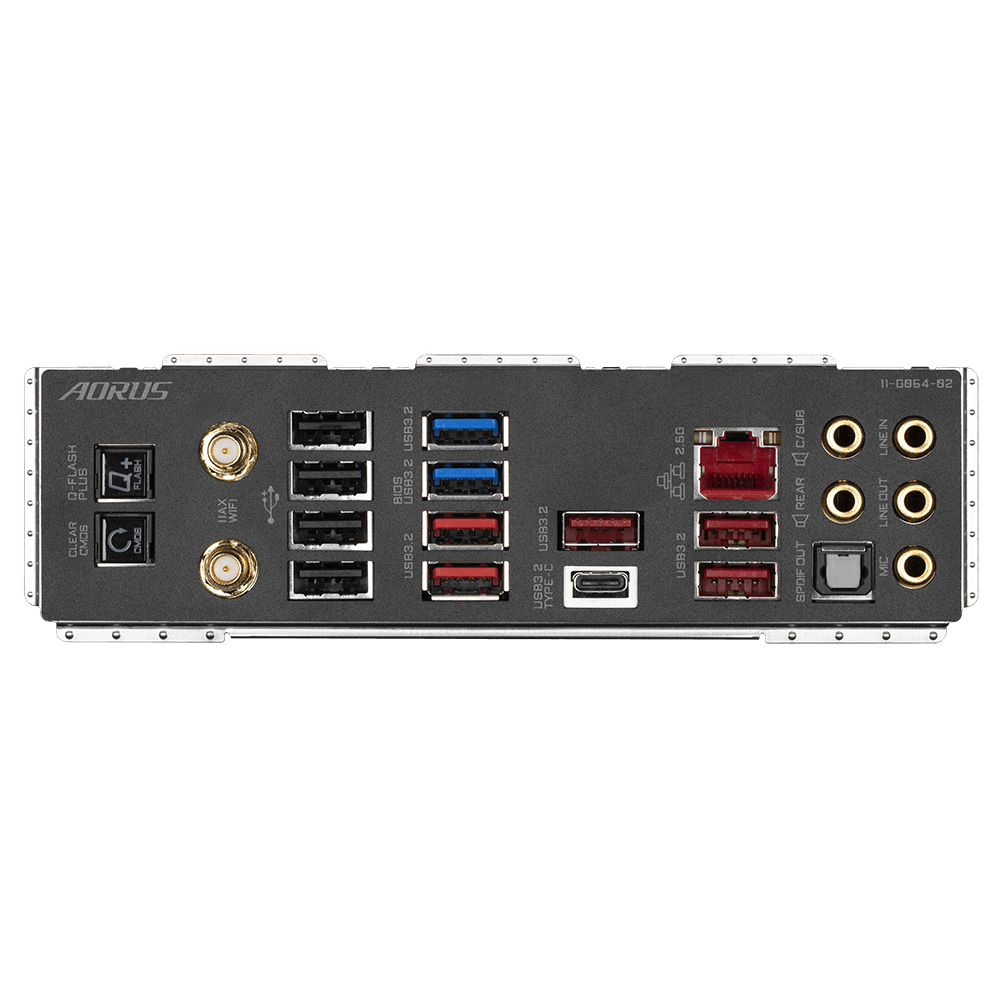

Back I/O Ports

  • 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 5 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 5 x audio jacks

H/W Monitoring

  • Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control, * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection

Special Features

  • Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications. @BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install

Bundled Software

  • Norton® Internet Security (OEM version), cFosSpeed
