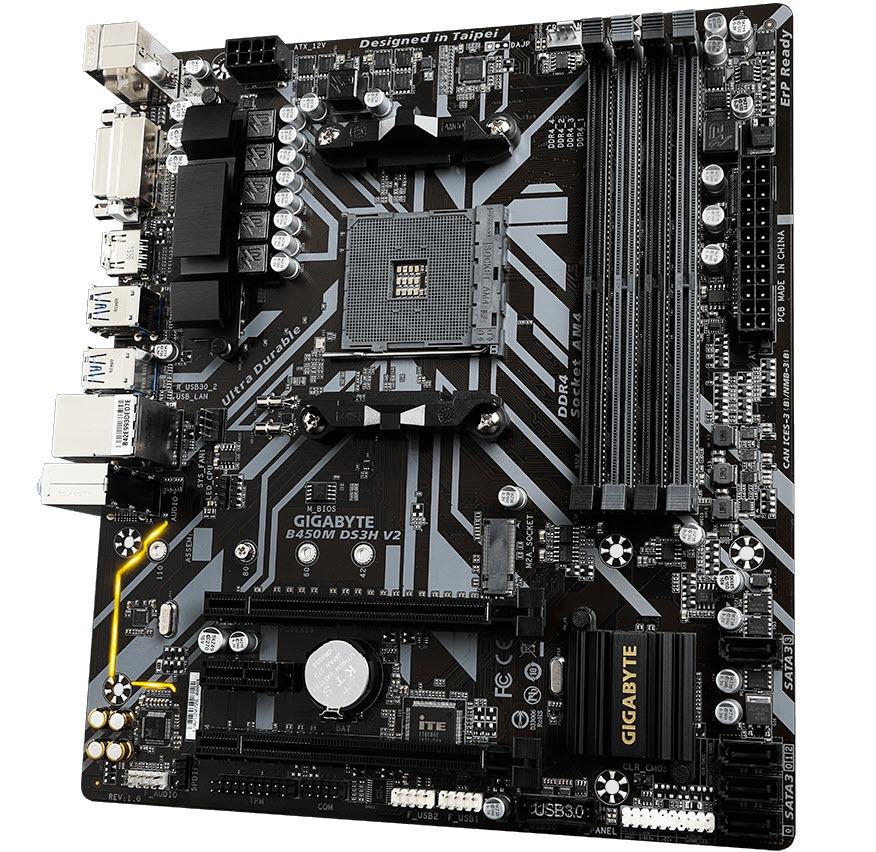

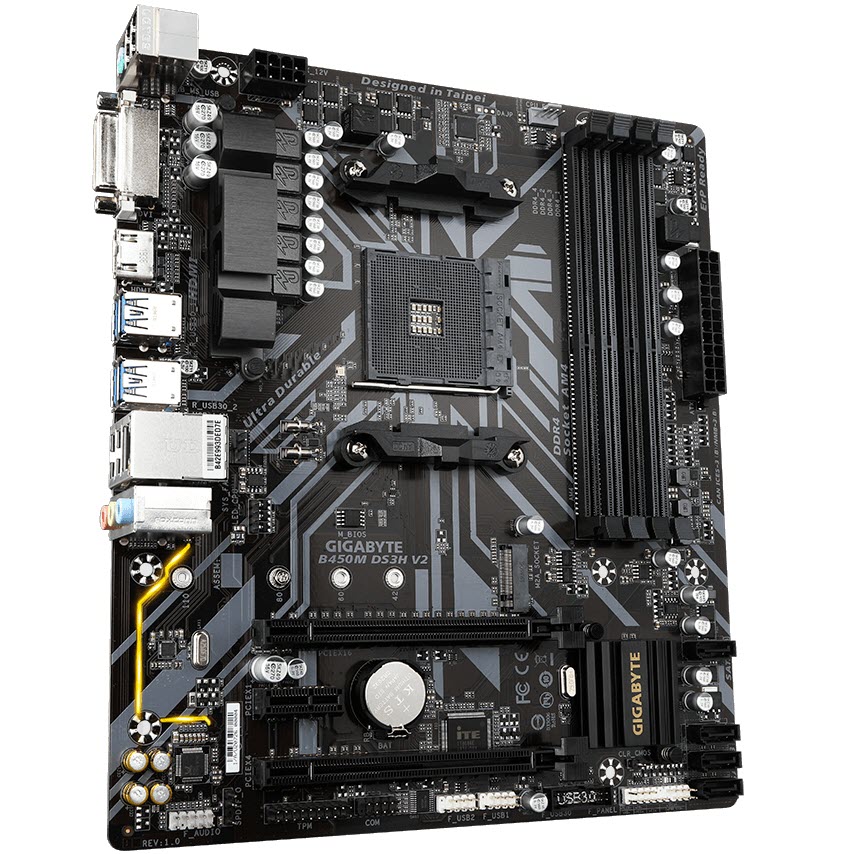

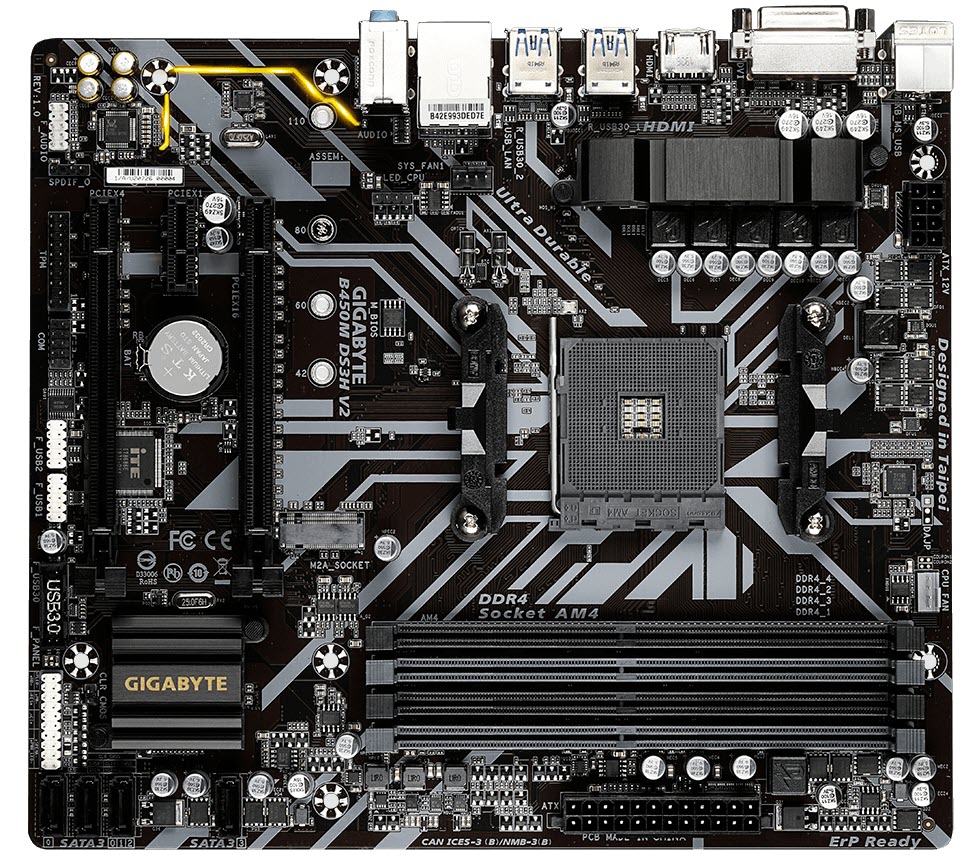

Gigabyte B450M DS3H V2

Form Factor

• Micro ATX Form Factor; 24.4cm x 21.5cm

CPU

• AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset

• AMD B450

Memory

• 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory, Dual channel memory architecture, Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Graphics

• Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note), * Support for HDMI 2.0 version and HDCP 2.2.(Note), Maximum shared memory of 16 GB

Multi-Graphics Technology

• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Expansion Slots

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support), * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10

LAN

• Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

• Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

USB Ports

• Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header, 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), CPU: 4 x USB 3.1 Gen 1 ports on the back panel

OS Support

• Support for Windows 10 64-bit, Support for Windows 7 64-bit, * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x CPU cooler LED strip/RGB LED strip header, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper

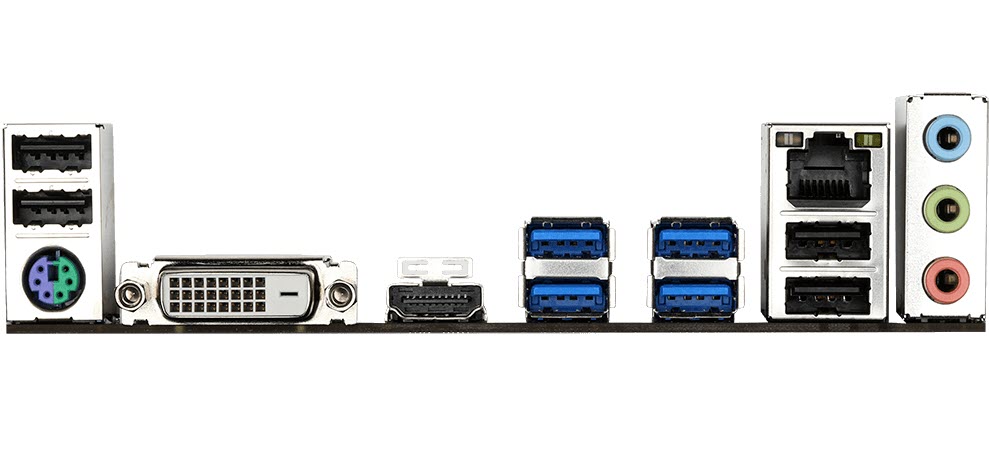

Back I/O Ports

• 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks

H/W Monitoring

• Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control

Special Features

• Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, Smart Survey, System Information Viewer, USB Blocker, V-Tuner, Support for Q-Flash, Support for Xpress Install

Bundled Software

• Norton® Internet Security (OEM version), cFosSpeed
