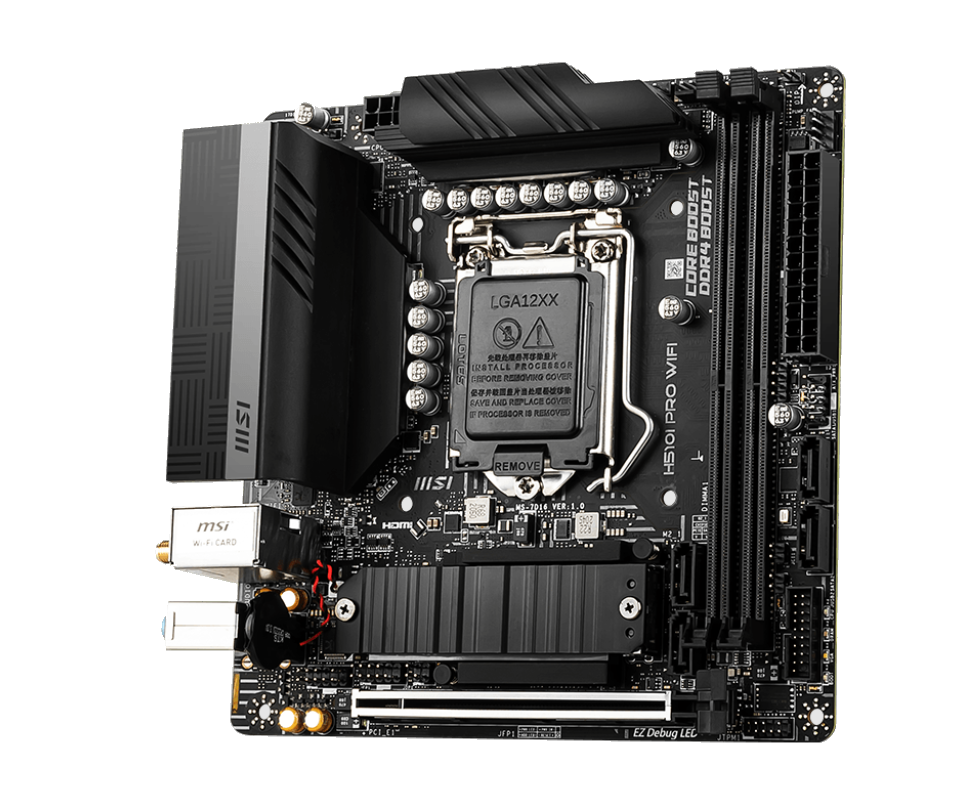

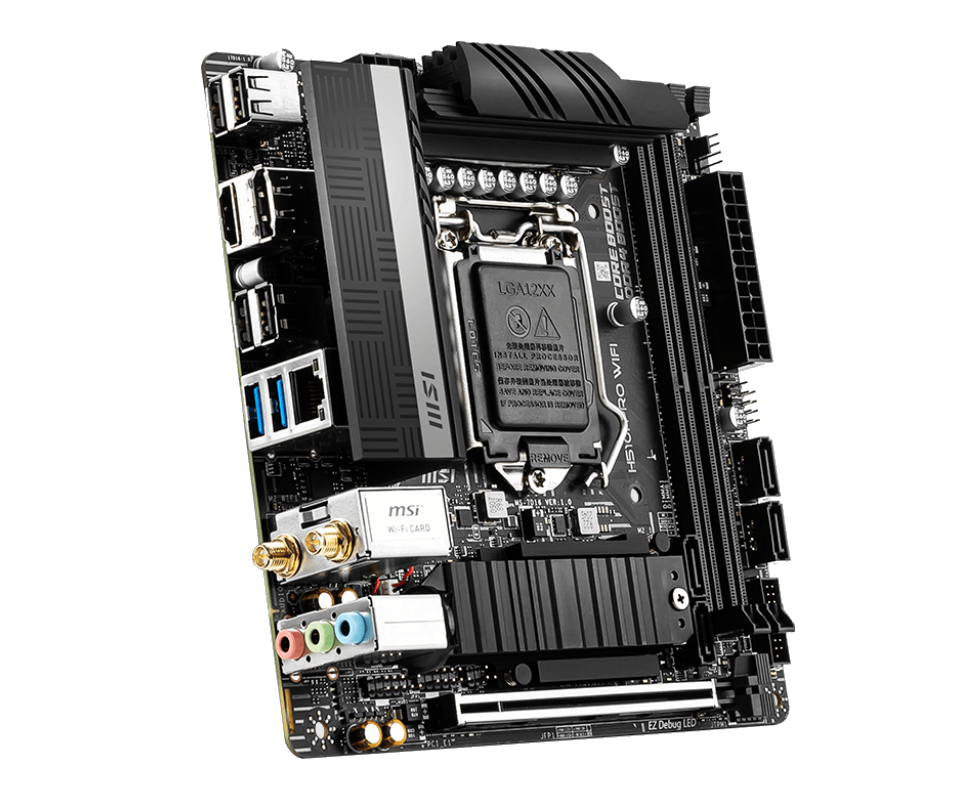

MSI H510I PRO WiFi - Mini-ITX, s1200, 2xDDR4, 1xM.2, 1xDP, 1xHDMI, BT 5.1
Product Type:
Motherboards
Type Detail:
Intel Socket 1200 (4xx/5xx Chipset)
Manufacturer:
MSI
Manufacturer #:
H510IPWIFI
Part Status:
Current Stock
Milwaukee PC SKU:
264491
Price:
$149.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1200
Brand: MSI
Chipset Manufacture: Intel
Form Factor: ITX / Mini-ITX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 2 Slots
Max Memory: 64GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.1
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 1 Slots
NVMe Support: No
eSata Ports: None
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 4 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 2 Ports
USB C Ports: None


MSI H510I PRO WiFi - Mini-ITX, s1200, 1xDP, 1xHDMI

Form Factor

  • Mini-ITX Form Factor, 6.7 in. x 6.7 in

CPU

  • Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, Processor socket LGA1200

Chipset

  • Intel® H510 Chipset

Memory

  • 2x DDR4 memory slots, support up to 64GB, Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR), Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR), Max frequency: 1DPC 1R Max speed up to 3200+ MHz, 1DPC 2R Max speed up to 3200+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP)

Graphics

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz

Expansion Slots

  • 1x PCIe x16 slot; Support up to PCIe 4.0 for 11th Gen Intel® CPU, Support up to PCIe 3.0 for 10th Gen Intel® CPU

Storage

  • 4x SATA 6Gb/s ports (from H510 chipset), 1x M.2 slot (from H510 chipset), Support up to PCIe 3.0, Supports SATA 6Gb/s, Supports 2280 storage devices

LAN

  • 1x Realtek® 8125B 2.5Gbps LAN controller

WIRELESS/BLUETOOTH

  • Intel® Wi-Fi 6 AX201, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, WiFi 6 pre certified, Supports Bluetooth® 5.1, FIPS, FISMA

Audio

  • Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

  • Intel® H510 Chipset; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors), 4x USB 2.0 Type-A ports on the back panel, GL850G Hub; 2x USB 2.0 ports available through the internal USB connector

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1x USB 2.0 connectors (supports additional 2 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 1x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TPM module connector

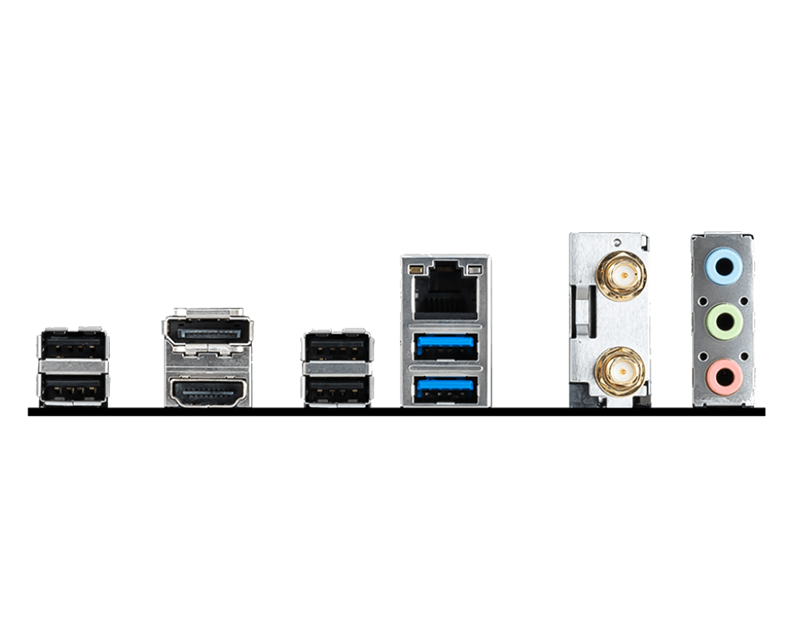

Back I/O Ports

  • 4 x USB 2.0, DisplayPort, LAN Port, Wi-Fi/Bluetooth, 3 x Audio Connectors, HDMI, 2 x USB 3.2 Gen1 Ports
