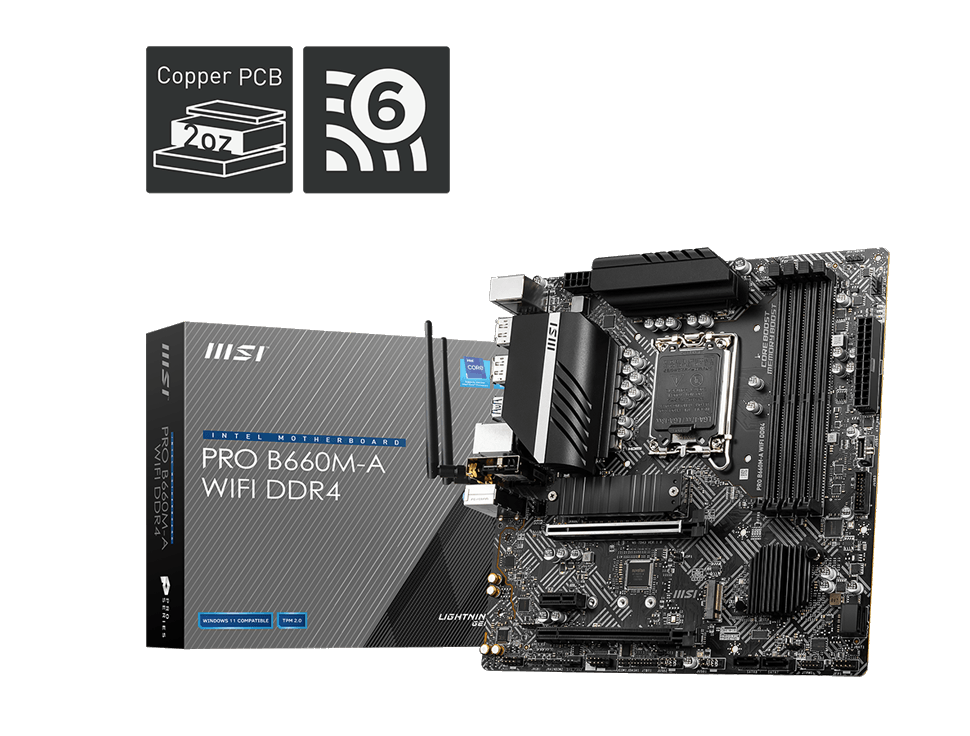

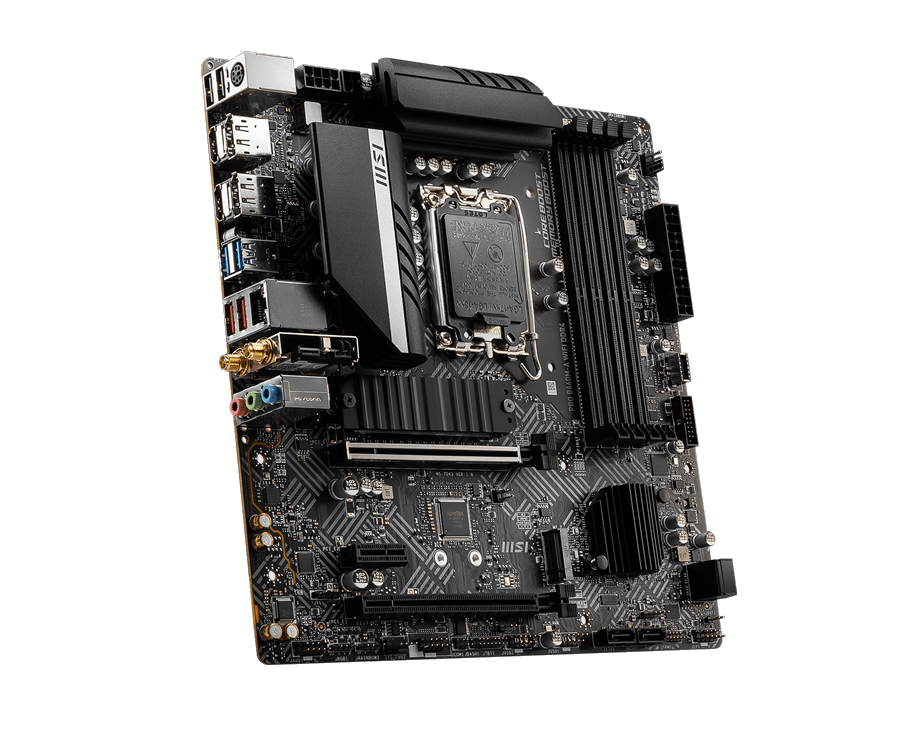

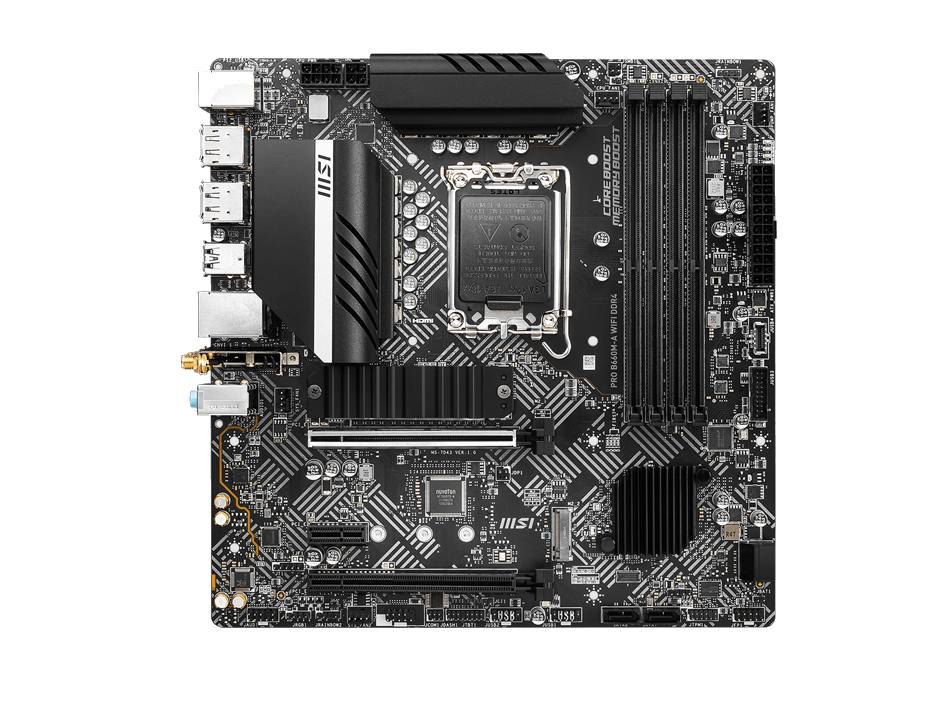

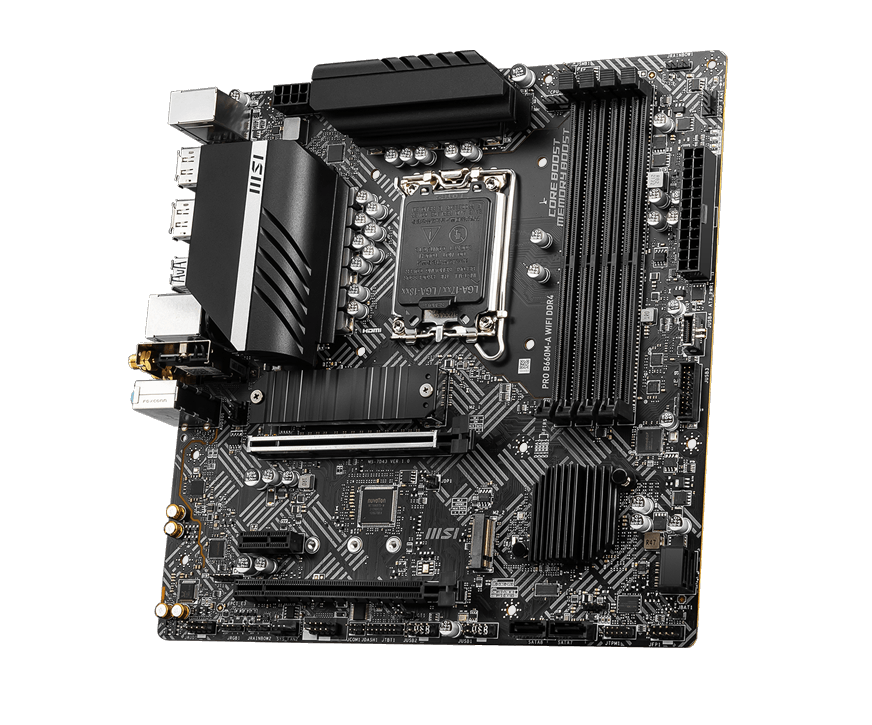

MSI PRO B660M-A WIFI DDR4 - mATX, s1700, 4xDDR4, 2xM.2, 2xHDMI, 2xDP, BT 5.2
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
MSI
Manufacturer #:
PROB660MAWID4
Part Status:
Current Stock
Milwaukee PC SKU:
264474
Price:
$159.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1700
Brand: MSI
Chipset Manufacture: Intel / B660
Form Factor: Micro ATX
Crossfire Support: YES / AMD® CrossFire™
SLI Support: NONE
Memory Type: DDR4
Max Memory: 128GB
Number of Memory Slots: 4 Slots
PCI Express x1 Slots: 1 Slots
PCI Express x16 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.2
RAID Support: RAID 0/1/5/10
Sata Express 16 Gbits/s Ports (3.2): None
Sata 3 Gbits/s Ports (2.0): None
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
M.2 Slots: 2 Slots
NVMe Support: Yes
eSata Ports: None
USB C Ports: None
USB 3.x Ports (3.0 or higher): 4 Ports
Legacy Ports: NONE
Thunderbolt Ports: NONE
Network Ports: 2.5 Gigabit
DVI Ports: NONE
VGA Ports: NONE
Display Ports: 1 Port
USB 2.0 Ports: 2 Ports
USB 3.0 Ports: None
HDMI Ports: 2 Ports


MSI PRO B660M-A WIFI

Form Factor

  • Micro-ATX Form Factor, 9.6 in. x 9.6 in

CPU

  • Supports 12th Gen Intel® Core™ Processors, Processor socket LGA1700

Chipset

  • Intel® B660 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB, Supports 1R 2133/2666/3200 MHz (by JEDEC & POR), Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz, 1DPC 2R Max speed up to 4000+ MHz, 2DPC 1R Max speed up to 4000+ MHz, 2DPC 2R Max speed up to 3600+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP)

Graphics

  • 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz, 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60

MULTI-GPU

  • Supports AMD® CrossFire™ Technology

Expansion Slots

  • 2x PCIe x16 slots, PCI_E1 (From CPU), Support PCIe 4.0 x16, PCI_E3 (From B660 chipset), Support PCIe 3.0 x4, 1x PCIe 3.0 x1 slot (Fom B660 chipset)

Storage

  • 4x SATA 6Gb/s ports (From B660 chipset), 2x M.2 slots (Key M), M2_1 slot (From CPU), Supports up to PCIe 4.0 x4, Supports 2242/ 2260/ 2280 storage devices, M2_2 slot (From B660 chipset), Supports up to PCIe 4.0 x4, Supports up to SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, Supports Intel® Optane™ Memory, Support Intel® Smart Response Technology for Intel Core™ processors, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

  • 1x Realtek® RTL8125BG 2.5Gbps LAN controller

WI-FI & BLUETOOTH®

  • Intel® Wi-Fi 6, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.2

Audio

  • Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

  • 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset), 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074), Supports additional 2 USB 3.2 Gen 1 5Gbps ports, 2x USB 2.0 Type-A connectors (From B660 chipset), Supports additional 4 USB 2.0 ports

OS Support

  • Windows 10 64bit

Internal I/O Ports

  • 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 2x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 1x Tuning Controller connector, 1x TBT connector (supports RTD3), 1x Serial port, 1x Clear CMOS jumper

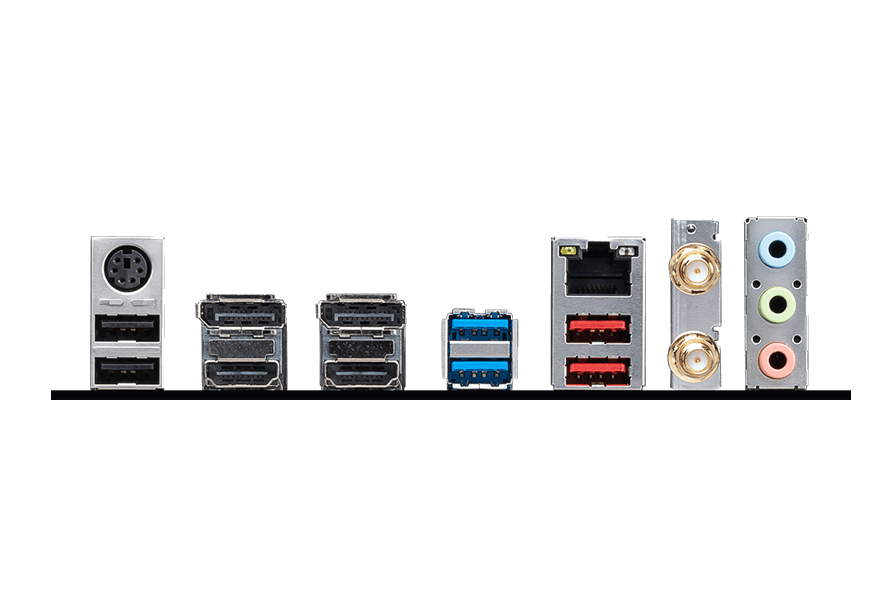

Back I/O Ports

  • Keyboard/Mouse, 2 x DisplayPort, 2 x USB 3.2 Gen Ports, LAN Port, Wi-Fi/Bluetooth, 3 x Audio Connectors, 2 x USB 2.0 Ports, 2 x HDMI, 2 x USB 3.2Gen2 Ports
