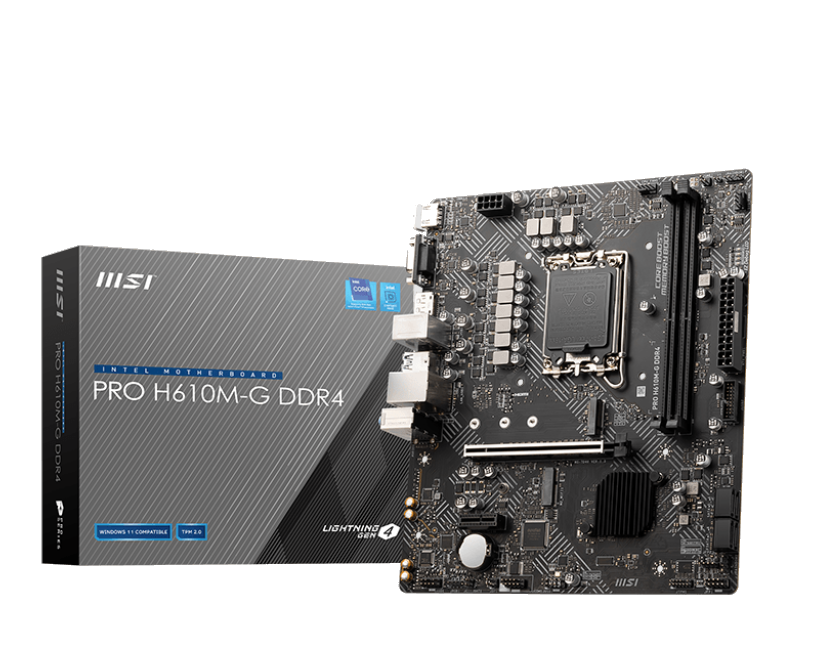

MSI Pro H610M-G DDR4 - mATX, s1700, 2xDDR4, 1xM.2, 1xHDMI, 1xDP, 1xVGA
Product Type:
Motherboards
Type Detail:
Intel Socket 1700 (6xx/7xx Series)
Manufacturer:
MSI
Manufacturer #:
PROH610MGD4
Part Status:
Special Order Only
Milwaukee PC SKU:
264473
Price:
$99.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1700
Brand: MSI
Chipset Manufacture: Intel / H610
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 2 Slots
Max Memory: 64GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 1 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 1 Slots
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 2 Ports
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 4 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
VGA Ports: 1 Port
DVI Ports: NONE
HDMI Ports: 1 Ports

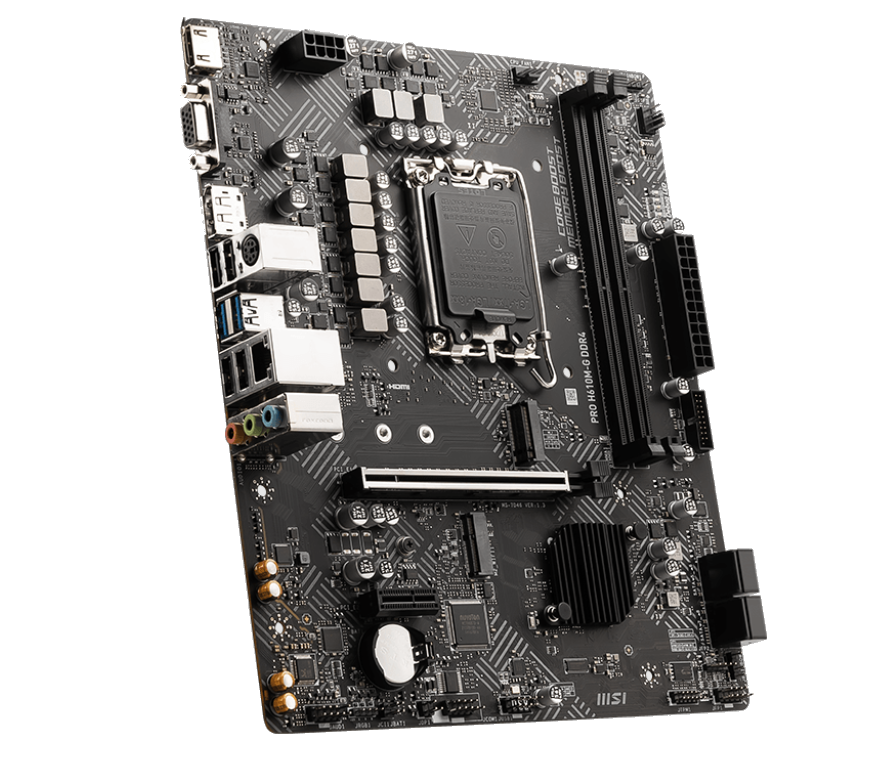

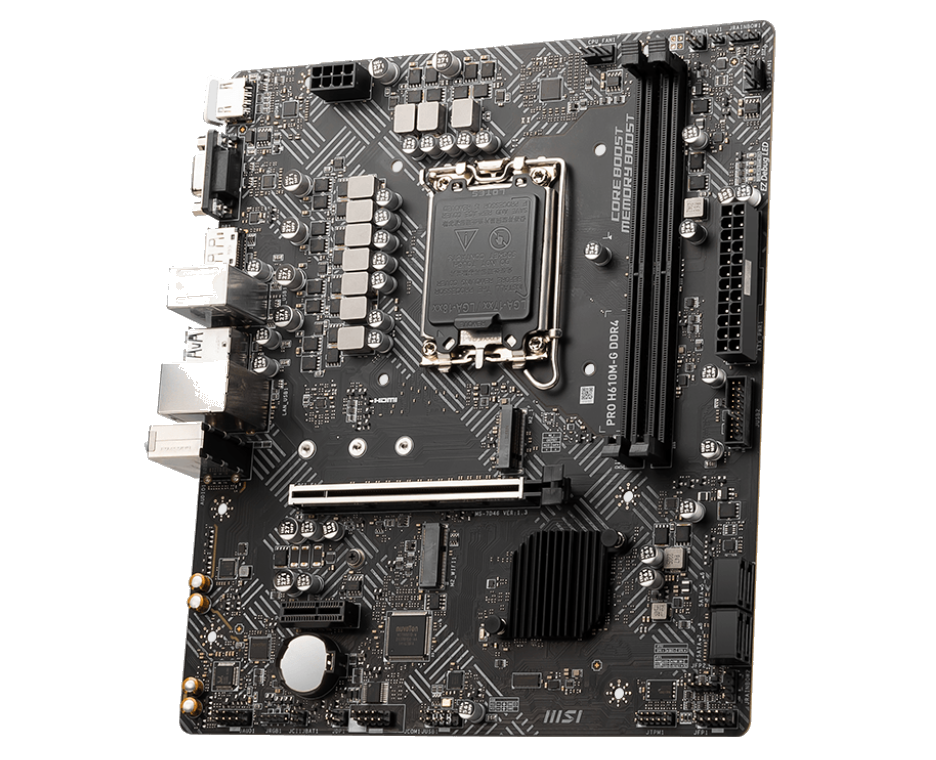

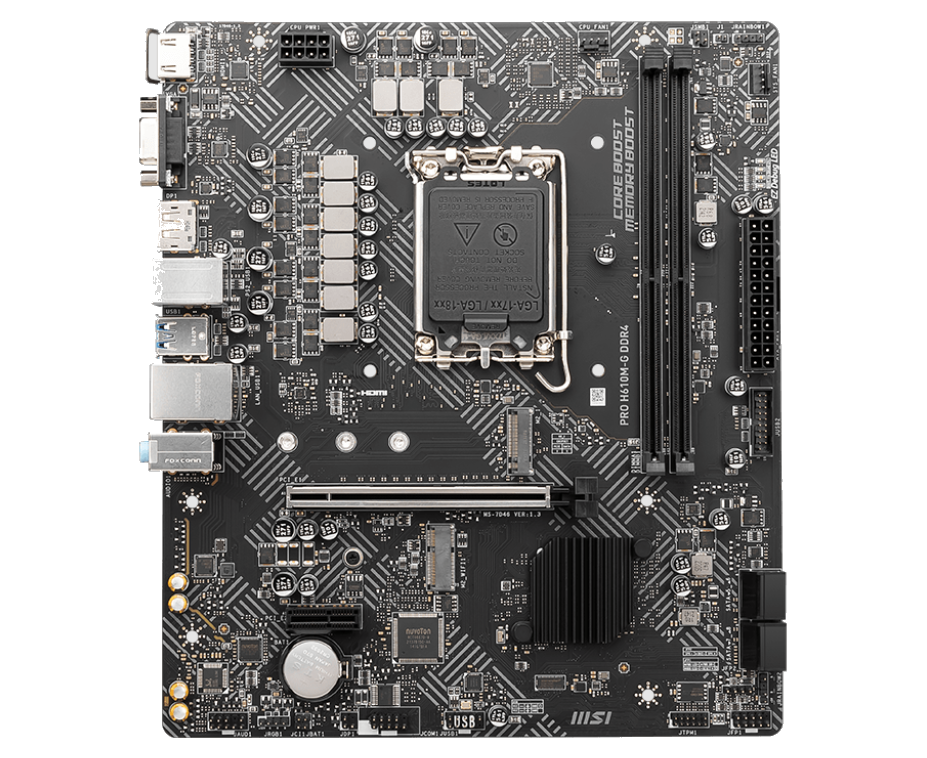

MSI Pro H610M-G DDR4

Form Factor

  • mATX Form Factor, 9.61 x 8.31 in

CPU

  • Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, Processor socket LGA1700

Chipset

  • Intel® H610 Chipset

Memory

  • 2x DDR4 memory slots, support up to 64GB, Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR), Supports Dual-Channel mode, Supports non-ECC, un-buffered memory

Graphics

  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

SATA Ports

  • 4x SATA 6Gb/s ports

M.2 SSD Slot

  • 1x M.2 slot (Key M, from chipset), Supports up to PCIe 3.0 x4, Supports up to SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, Supports Intel® Smart Response Technology for Intel Core™ processors

LAN

  • 1x Intel® I219V 1Gbps LAN controller

Audio

  • Realtek® ALC892/ ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

  • Intel® H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector), 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

OS Support

  • Support for Windows® 11 64-bit

Internal I/O Ports

  • 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 1x Clear CMOS jumper

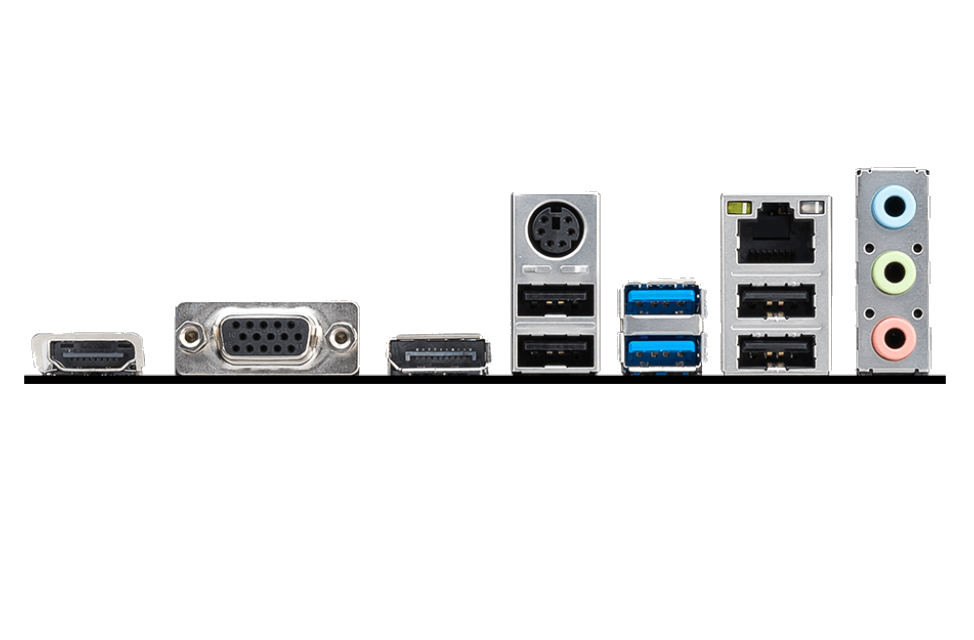

Back I/O Ports

  • HDMI, VGA, DisplayPort, Keyboard/Mouse, 2 x USB 3.2 Gen 1 5Gbps Type-A, Lasn Port, 3 x Audio Connectors, 4 x USB 2.0 Ports

LED Features

  • 1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 4x EZ Debug LED
