PRIME TRX40 ProS AMD sTRX4 G3
Product Type:
Motherboards
Type Detail:
AMD Socket TRX4
Manufacturer:
Asus
Manufacturer #:
90MB14J0-M0AAY0
Part Status:
Special Order Only
Milwaukee PC SKU:
264275
Price:
$626.99

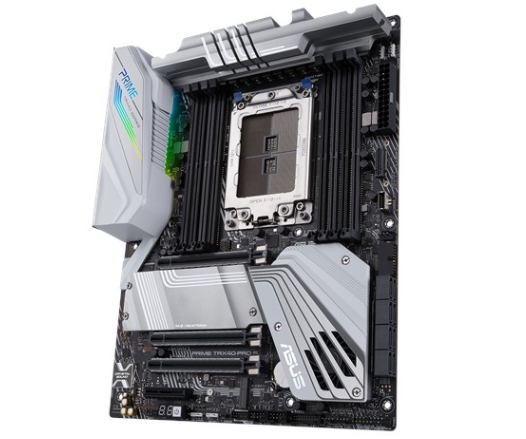

ASUS PRIME TRX40-PRO S is AMD sTRX4 socket motherboard. Designed for 3rd Gen Ryzen Threadripper CPU. With 16 power stages ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery and comprehensive cooling design makes it a perfect motherboard for content creator who wants to fully utilize 64 core CPUs. Comprehensive thermal solutions: VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers. Three PCIe 4.0 M.2 slots, USB 3.2 Gen 2 front-panel Type-C connector, and Intel Gigabit Ethernet. ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels.

Quick Tech Specs

Processor Manufacture: AMD
Brand: ASUS
Chipset Manufacture: AMD
Form Factor: ATX
SLI Support: YES
Crossfire Support: YES
Number of Memory Slots: 8 Slots
Memory Type: DDR4
PCI Express x16 Slots: 3 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: NONE
RAID Support: RAID 0/1/10
Sata 6 Gbits/s Ports (3.0/3.1): 8 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 2 Slots
NVMe Support: Yes
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: 6 Ports
USB 2.0 Ports: None
Network Ports: Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: NONE
HDMI Ports: None


Asus PRIME TRX40 ProS AMD sTRX4 ATX


Form Factor

  • ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

  • AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors, Supports CPU up to 64 cores

Chipset

  • Build in AMD TRX40

Memory

  • 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors, 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.) /4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.) /3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

Multi-GPU Support

  • Supports NVIDIA® Quad-GPU SLI® Technology, Supports NVIDIA® 2-Way SLI® Technology, Supports AMD Quad-GPU CrossFireX™ Technology, Supports AMD 2-Way CrossFireX Technology

Expansion Slots

  • 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors, 3 x PCIe 4.0 x16 (x16/x16/x16), AMD TRX40 chipset; 1 x PCIe 4.0 (x4 mode)

Storage

  • 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode), AMD TRX40 chipset : 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

LAN

  • Intel® I211-AT, ASUS Turbo LAN Utility, ASUS LAN Guard

Audio

  • Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in), Audio Feature : - DTS X®:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs

USB Ports

  • AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset : 6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) AMD TRX40 chipset : 2 x USB 2.0 port(s) (2 at mid-board) ASMedia® USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) GL852G USB Hub : 2 x USB 2.0 port(s) (2 at mid-board)

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • 1 x Q_Code, 2 x Aura RGB Strip Header(s), 2 x Addressable Gen 2 header(s), 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 1 x M.2 with E key for Wi-Fi module, 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 3 x Chassis Fan connector(s) (3 x 4 -pin), 1 x AIO_PUMP connector (1 x 4 -pin), 1 x W_PUMP+ connector (1 x 4 -pin), 1 x 24-pin EATX Power connector(s), 2 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Q-Connector) x With flexkey function, 1 x Thermal sensor connector(s), 1 x Power-on button(s), 1 x Clear CMOS jumper(s), 1 x Node Connector(s), 1 x USB 3.2 Gen 2 front panel connector

Back I/O Ports

  • 1 x LAN (RJ45) port(s), 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™), 6 x USB 3.2 Gen 1 (blue), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS FlashBack™ Button(s)

Special Features

  • ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App ASUS SafeSlot - Protect your graphics card Investment AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Crystal Sound 3 - Armoury Crate - Pre-mounted I/O Shield ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack™ - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

Accessories

  • User's manual, 1 x Vertical M.2 bracket set, 4 x SATA 6Gb/s cable(s), 2 x M.2 Screw Package, 1 x Supporting DVD, 1 x Q-Connector, 1 x Extension Cable for RGB strips (40 cm), 1 x Extension cable for Addressable LED, 1 x CPU Fan Holder
