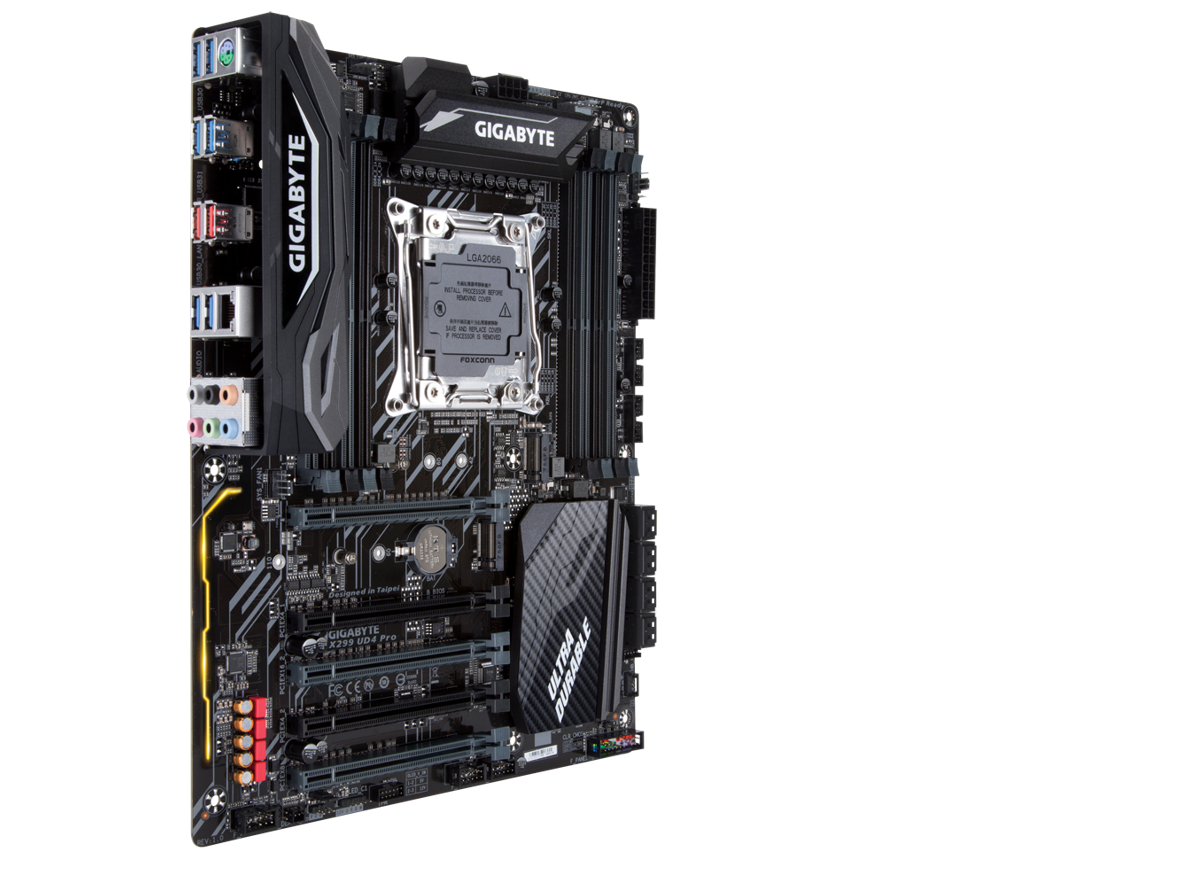

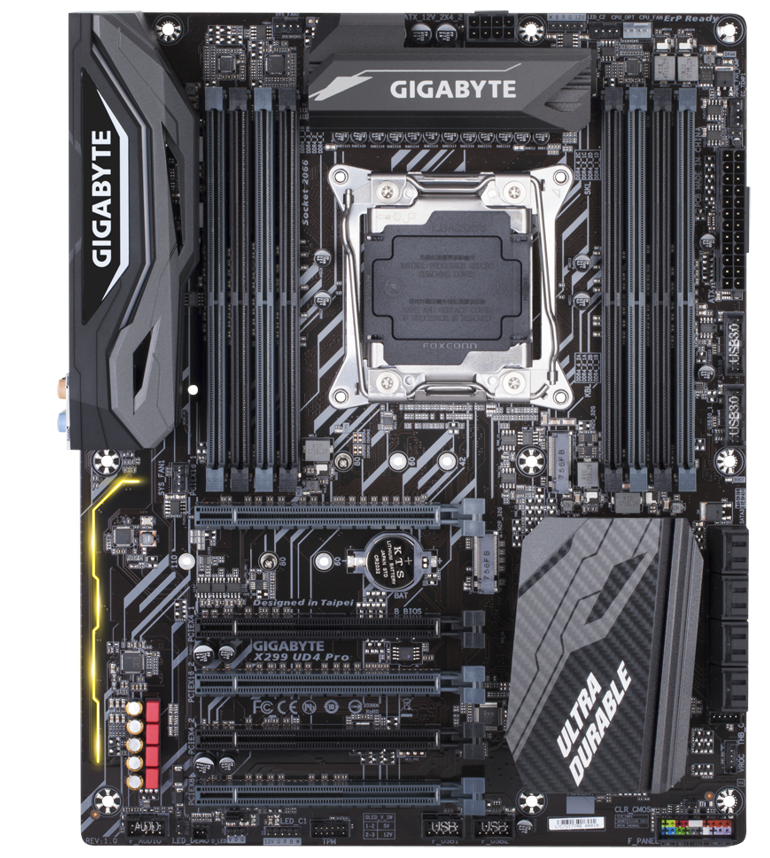

Gigabyte X299 UD4 PRO, LGA2066, ATX
Product Type:
Motherboards
Type Detail:
Intel Socket 2066
Manufacturer:
Gigabyte
Manufacturer #:
X299UD4PRO
Part Status:
Discontinued
Milwaukee PC SKU:
264235
Price:
$315.99

Intel X299 Ultra Durable motherboard with RGB Fusion, Digital LED strip support, Dual M.2, 120dB SNR ALC1220, Intel Gaming LAN, USB 3.1 gen 2 Type-ASupports Intel Core X-Series Processor FamilyQuad Channel Non-ECC Unbuffered DDR4, 8 DIMMsIntel Optane Memory ReadyIntel VROC readyASMedia 3142 USB 3.1 Gen 2 with USB Type-A3-Way Graphics SupportServer-Class Digital Power DesignALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitorRGB FUSION support Digital LED and RGBW Light StripsSmart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOPDual Ultra-Fast M.2 with PCIe Gen3 x4 interfaceNVMe PCIe Gen3 x4 U.2 support by optional adaptorIntel GbE LAN Gaming Network with cFosSpeed Internet Accelerator SoftwareAnti-Sulfur Resistor DesignUltra Durable 25KV ESD and 15KV Surge LAN ProtectionLightning-Fast Intel Thunderbolt 3 AIC SupportGIGABYTE UEFI DualBIOSAPP Center Including EasyTune and Cloud Station Utilities

Quick Tech Specs

Processor Manufacture: Intel
Brand: Gigabyte
Chipset Manufacture: Intel
Form Factor: ATX
Crossfire Support: YES
SLI Support: YES
Memory Type: DDR4
Max Memory: 128GB
Number of Memory Slots: 8 Slots
PCI Express x1 Slots: None
PCI Express x16 Slots: 5 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: RAID 0/1/5/10
M.2 Slots: 2 Slots
NVMe Support: Yes
eSata Ports: None
Sata Express 16 Gbits/s Ports (3.2): None
Sata 3 Gbits/s Ports (2.0): None
Sata 6 Gbits/s Ports (3.0/3.1): 8 Ports
Legacy Ports: NONE
Thunderbolt Ports: NONE
HDMI Ports: None
DVI Ports: NONE
Display Ports: NONE
Network Ports: Gigabit (10/100/1000)
USB 2.0 Ports: None
USB 3.0 Ports: 6 Ports


Gigabyte X299 UD4 PRO, LGA2066, ATX


Form Factor

  • ATX Form Factor; 30.5cm x 24.4cm

CPU

  • Support for Intel® Core™ X series processors in the LGA2066 package

Chipset

  • Intel® X299 Express Chipset

Memory

  • 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory. * Supported when using a 44-lane or 28-lane CPU (6-core or above). 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. * Supported when using a 16-lane CPU (4-core). 4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above). Dual channel memory architecture. Supported when using a 16-lane CPU (4-core). Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM memory modules, Support for Extreme Memory Profile (XMP) memory modules

Multi-Graphics Technology

  • Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies, Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies

Expansion Slots

  • 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

Storage

  • Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G), 8 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready, Intel® VROC Ready

LAN

  • Intel® GbE LAN chip (10/100/1000 Mbit)

Audio

  • Realtek® ALC1220 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out

USB Ports

  • Chipset+ASMedia® USB 3.1 Gen 2 Controller: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel, Chipset: 10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers), 4 x USB 2.0/1.1 ports available through the internal USB headers

OS Support

  • Windows 10 64-bit

Internal I/O Ports

  • 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 2 x system fan headers, 1 x 3 Amp fan/water cooling pump header, 1 x digital LED strip header, 1 x digital LED strip power select jumper, 2 x RGB (RGBW) LED strip extension cable headers, 2 x M.2 Socket 3 connectors, 8 x SATA 6Gb/s connectors, 1 x Intel® VROC Upgrade Key header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 2 x USB 3.1 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x Thunderbolt™ add-in card connector, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x temperature sensor header, 1 x Clear CMOS jumper

Back I/O Ports

  • 1 x PS/2 keyboard/mouse port, 2 x USB 3.1 Gen 2 Type-A ports (red), 6 x USB 3.1 Gen 1 ports, 1 x RJ-45 port, 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

H/W Monitoring

  • Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control

Special Features

  • Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD, @BIOS, AutoGreen, BIOS Setup, Color Temperature, Cloud Station, EasyTune, Easy RAID, Fast Boot, Game Boost, ON/OFF Charge, Platform Power Management, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, System Information Viewer, USB Blocker, V-Tuner, Support for Q-Flash, Support for Xpress Install

Bundled Software

  • Norton® Internet Security (OEM version), cFosSpeed
