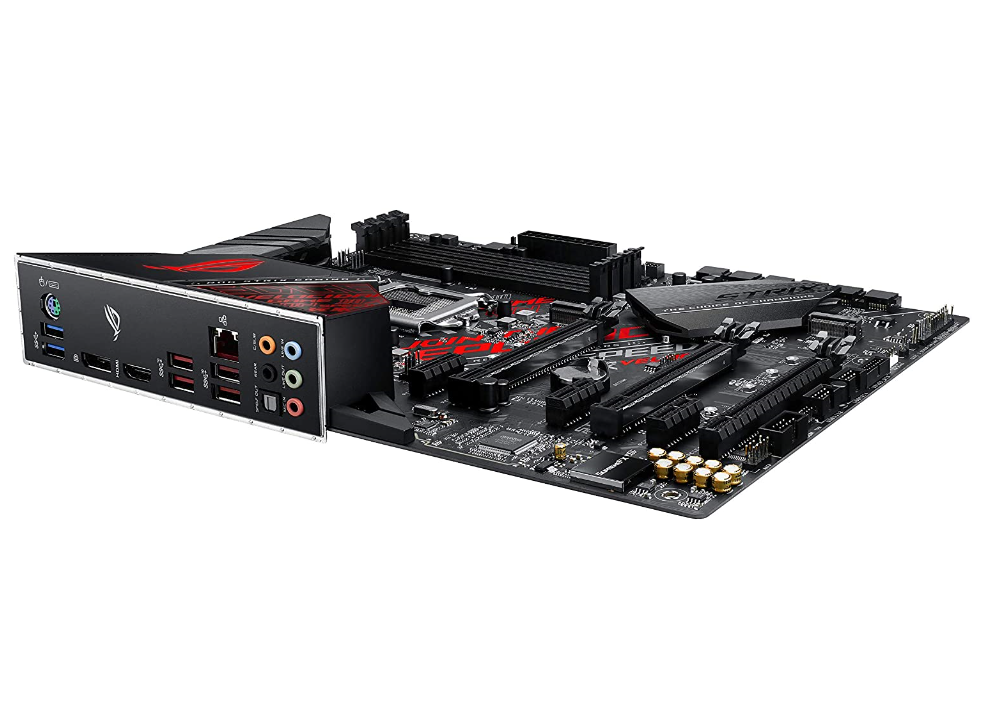

Asus ROG Strix Z390 H Gaming

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® Z390

Memory

• 4 x DIMM, Max. 64 GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.) /3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.) /2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Graphics

• Integrated Graphics Processor- Intel® HD Graphics support, Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2304 @ 24 Hz / 3840 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Multi-GPU Support

Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

• Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), Intel® Z390 Chipset, 1 x PCIe 3.0/2.0 x16 (x2 mode), 3 x PCIe 3.0/2.0 x1

Storage

• Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel® Optane™ Memory Ready

LAN

• Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY), Anti-surge LANGuard, ROG GameFirst Technology

Audio

• ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback, Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III

USB Ports

• Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, red) Intel® Z390 Chipset : , 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board), Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 1 x AAFP connector, 1 x Aura RGB Strip Header, 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x TPM connector(s) , 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x AIO_PUMP connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x MemOK! II switch(es), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x Thermal sensor connector, 1 x CPU_OV jumper

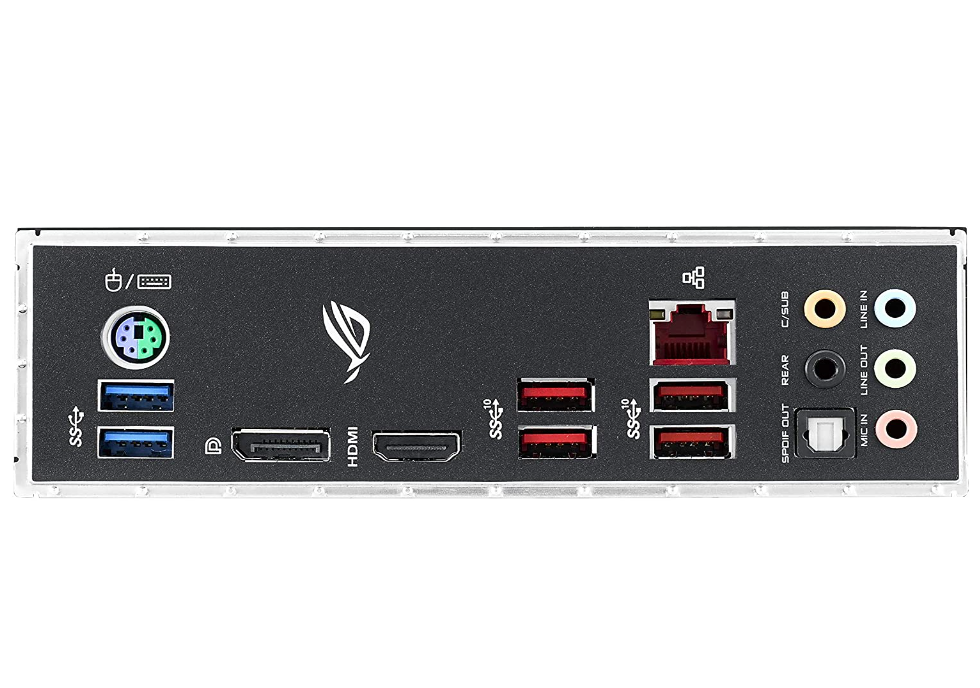

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 2 Type-A, 2 x USB 3.1 Gen 1, 1 x Optical S/PDIF out, 5 x Audio jack(s)

ROG Exclusive Features

• ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III

Special Features

• Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS Optimem II: - Improved DDR4 Stability, ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices, ASUS Exclusive Features : - MemOK! II - AI Suite 3 - Ai Charger - Armoury Crate - Pre-mounted I/O Shield - 3D Printing Friendly, ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3, ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM, Gaming Aesthetics : - AURA-RGB Lighting, DIY Friendly Design - Procool - SafeSlot - Digi+ VRM - DRAM Overcurrent Protection - Highly Durable components - ESD Guards

Accessories

• User's manual, 1 x ASUS Fan Holder, 4 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x SLI HB BRIDGE(2-WAY-M), 1 x ROG Strix stickers
