Asus ROG STRIX TRX40 E GAMING - ATX, sTRX4, 8xDDR4, 2xM.2, 2-Way SLI, 2-Way CrossFireX, WiFi6
Product Type:
Motherboards
Type Detail:
AMD Socket TRX4
Manufacturer:
Asus
Manufacturer #:
90MB12E0-M0AAY0
Part Status:
Special Order Only
Milwaukee PC SKU:
264156
Price:
$688.99

.

Quick Tech Specs

Processor Manufacture: AMD
Socket: AMD sTRX4
Brand: ASUS
Chipset Manufacture: AMD / TRX40
Form Factor: ATX
SLI Support: YES
Crossfire Support: YES
Number of Memory Slots: 8 Slots
Max Memory: 256GB
Memory Type: DDR4
PCI Express x16 Slots: 3 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: Wi-Fi 6 / BT 5.0
RAID Support: RAID 0/1/10
Sata 6 Gbits/s Ports (3.0/3.1): 8 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 2 Slots
NVMe Support: No
eSata Ports: None
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 4 Ports
Display Ports: NONE
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: None
Legacy Ports: NONE
USB C Ports: 1 Port
Network Ports: 2.5 Gigabit
USB 3.x Ports (3.0 or higher): 7 Ports

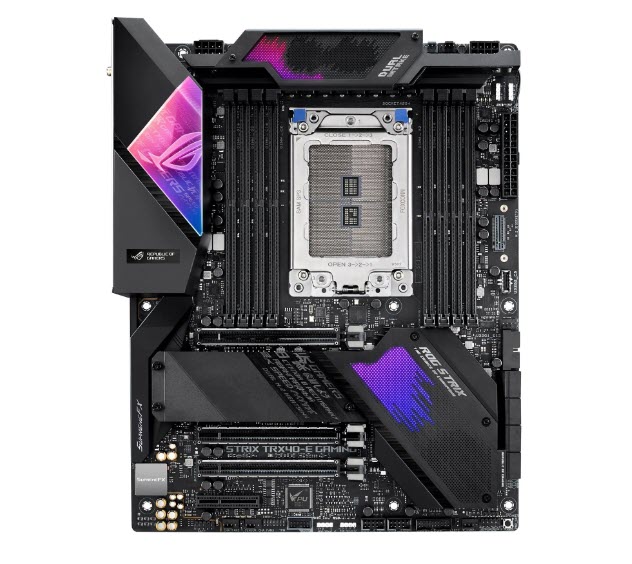

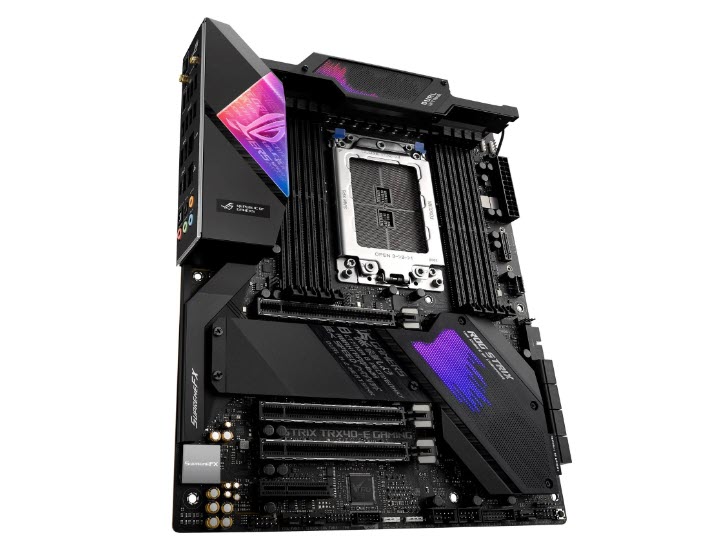

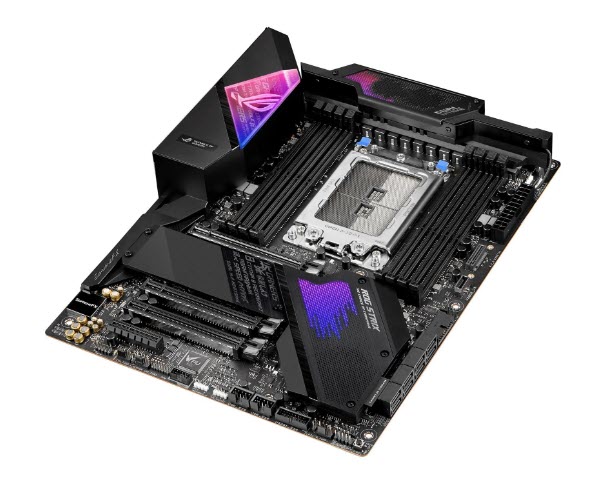

Asus ROG STRIX TRX40 E GAMING

ROG Strix TRX40-E Gaming blends stunning gaming aesthetics with high-end desktop performance for do-it-all builds for users that like to work hard and play hard. A variety of design touches show off its cyberpunk origins, including a translucent I/O shroud glows under Aura lighting and a striking rainfall pattern on the VRM & chipset heatsinks. When it comes to performance, ROG Strix TRX40-E Gaming delivers with a wealth of ultrafast connectivity options, including three PCIe 4.0 M.2 slots, the latest 2.5G Ethernet and Wi-Fi 6 networking, and eight USB 3.2 Gen 2 ports.

Form Factor

  • ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

  • Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors

Chipset

  • AMD TRX40

Memory

  • 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors, 8 x DIMM, Max. 256GB, DDR4 4666(O.C.) /4600(O.C)/4400(O.C)/4333(O.C.) /4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400, (O.C.)/3200/ 2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory, Quad Channel Memory Architecture

Multi-GPU Support

  • Supports NVIDIA® 2-Way SLI® Technology, Supports AMD 2-Way CrossFireX Technology

Expansion Slots

  • 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors, 3 x PCIe 4.0 x16 (x16/x16/x16), 1 x PCIe 4.0 x4

Storage

  • 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode), AMD TRX40 chipset : 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), AMD TRX40 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

LAN

  • Realtek® RTL8125-CG 2.5G LAN, Intel® I211-AT, 1 x Gigabit LAN Controller(s), Anti-surge LANGuard, ROG GameFirst V Technology

Wireless Data Network

  • Intel® Wi-Fi 6 AX200, Wi-Fi 802.11 ax, Bluetooth® 5.0, Supports dual band frequency 2.4/5 GHz, Supports 2x2 MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Bluetooth

  • Bluetooth® 5.0

Audio

  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Dual OP Amplifiers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output 108 dB SNR recording input - Supports up to 32-Bit/192kHz playback, Audio Feature : - SupremeFX Shielding™ Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS® Sound Unbound - Optical S/PDIF out port(s) at back panel - Sonic Radar III

USB Ports

  • 3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red), AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s), AMD TRX40 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C), AMD TRX40 chipset : 8 x USB 2.0 port(s), ASMedia® USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at mid-board)

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • 2 x Aura RGB Strip Header, 2 x Addressable Gen 2 header(s), 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode), 1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 1 x TPM header, 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x W_PUMP+ connector, 1 x 24-pin EATX Power connector(s), 2 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Thermal sensor connector(s), 1 x Power-on button(s), 1 x Clear CMOS jumper(s), 1 x Node Connector(s), 1 x USB BIOS FlashBack™ button(s), 1 x System panel connector, 1 x USB 3.2 Gen 2 front panel connector, 1 x Speaker connector, 1 x Chipset Fan Header, 1 x VRM_HS_FAN Header

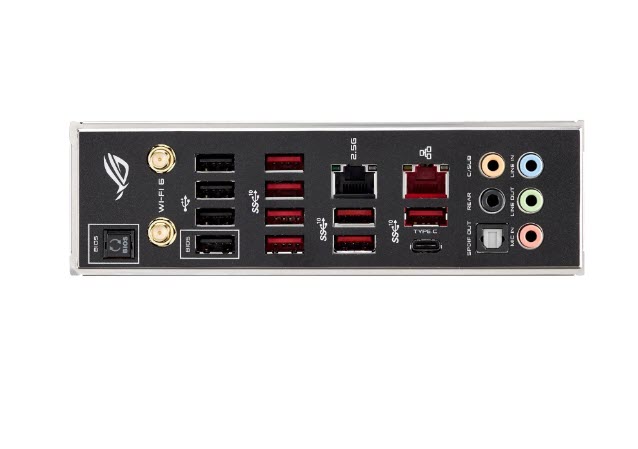

Back I/O Ports

  • 1 x LAN (RJ45) port(s), 8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C), 4 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x Anti-surge 2.5G LAN (RJ45) port, 1 x USB BIOS FlashBack™ Button(s)

ROG Exclusive Features

  • ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III - Overwolf

Special Features

  • 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Gamer's Guardian: - DRAM Overcurrent Protection - Highly Durable Components - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports, LiveDash OLED 1.3 ”, AURA : - Aura Lighting Control - Addressable Gen 2 Header, ASUS Exclusive Features : - USB BIOS FlashBack™ - AI Suite 3 - Ai Charger - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - BIOS FlashBack™ Button, ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3, ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

Accessories

  • 1 x Vertical M.2 bracket set, 4 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x pack of cable tie, 1 x Supporting DVD, 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant), 1 x Strix door hanger, 1 x ROG Strix stickers, 1 x Q-Connector, 1 x Thermal sensor cable pack(s), 1 x Extension Cable for RGB strips (80 cm), 1 x Extension cable for Addressable LED, User manual, 1 x ROG Thank you card
