MSI Creator TRX40 PRO WIFI - E-ATX, sTRX4, 8xDDR4, 3-Way SLI, 3-Way CrossFire
Product Type:
Motherboards
Type Detail:
AMD Socket TRX4
Manufacturer:
MSI
Manufacturer #:
TRX40P
Part Status:
Special Order Only
Milwaukee PC SKU:
264143
Price:
$589.99

Quick Tech Specs

Processor Manufacture: AMD
Socket: AM4
Brand: MSI
Chipset Manufacture: AMD / TRX40
Form Factor: Extended ATX
SLI Support: YES
Crossfire Support: YES
Number of Memory Slots: 8 Slots
Max Memory: 256GB
Memory Type: DDR4
PCI Express x16 Slots: 4 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: WiFI AC
RAID Support: RAID 0/1/10
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 2 Slots
NVMe Support: Yes
eSata Ports: None
USB C Ports: None
Legacy Ports: NONE
USB 3.x Ports (3.0 or higher): 8 Ports
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: None
Network Ports: Dual Gigabit (10/100/1000)
Display Ports: NONE
VGA Ports: NONE
DVI Ports: NONE
HDMI Ports: None

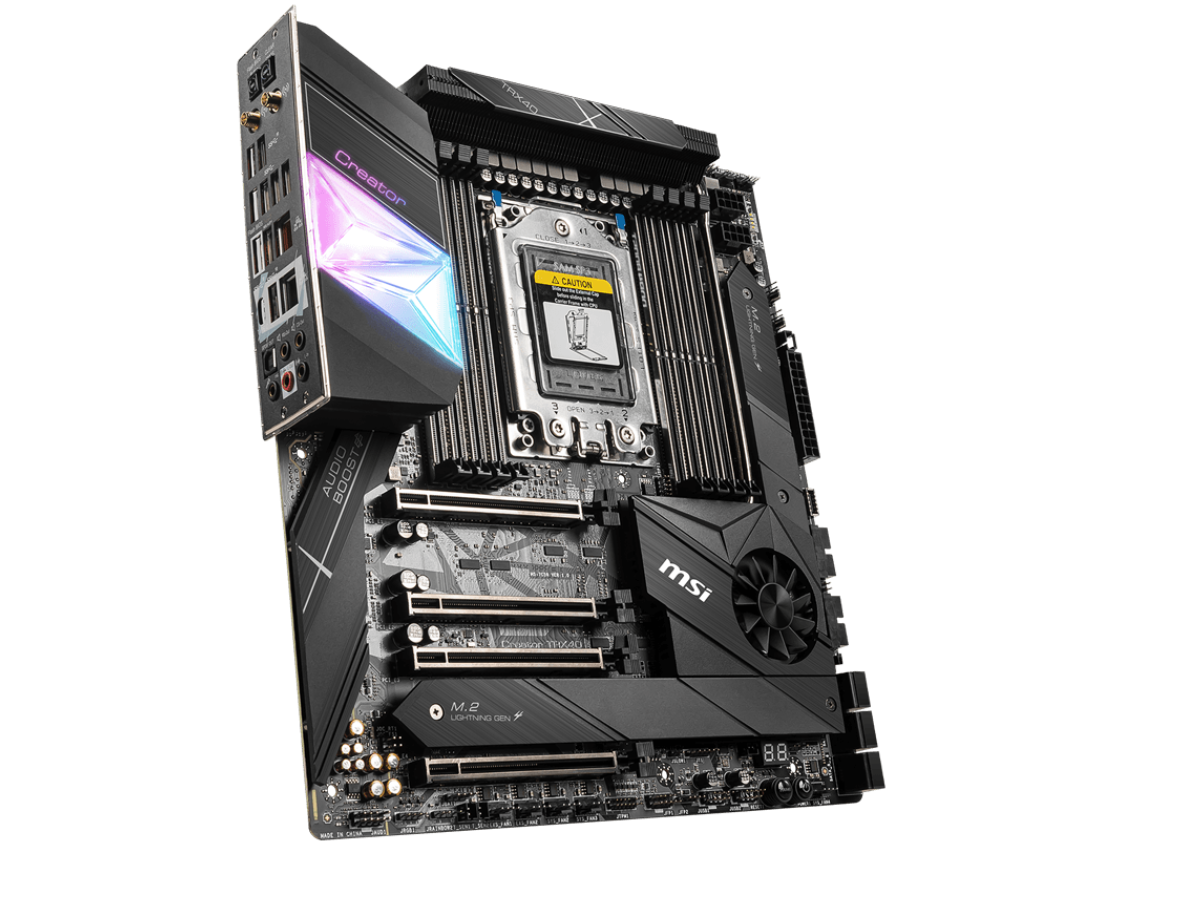

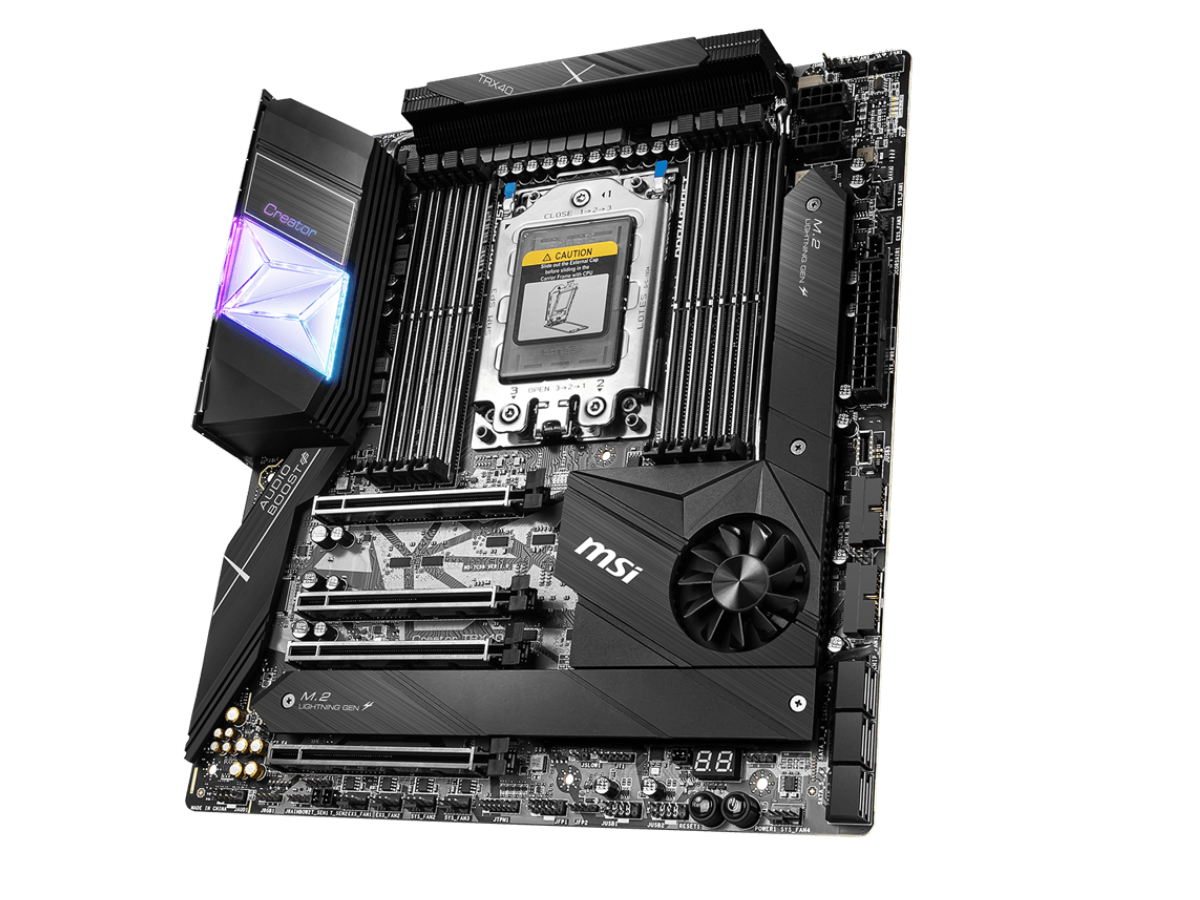

MSI Creator TRX40 PRO WIFI

Unique look and feel inspired by the craft of crystal for all Creators. Features the latest PCIe gen4 slots and M.2 connectors, USB3.2 Gen2x2, 10G LAN and Wi-Fi 6, Frozr Heatsink Design, Triple Lightning Gen4 M.2 with double-sided M.2 Shield Frozr, Core Boost, Audio Boost 4 with Nahimic, M.2 Xpander-Aero Gen4 card, Mystic Light.

Form Factor

  • E-ATX Form Factor 12 in. x 10.9 in. (30.4 cm x 27.7 cm)

CPU

  • 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors

Chipset

  • AMD® TRX40 Chipset

Memory

  • 8x DDR4 memory slots, support up to 256GB, Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz, 1DPC 1R max speed 4666 MHz, 1DPC 2R max speed 4000 MHz, 2DPC 1R max speed 4000 MHz, 2DPC 2R max speed 3600 MHz, Quad channel memory architecture, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory, Supports un-buffered memory

Multi-GPU

  • Supports 3-Way NVIDIA® SLI™ Technology, Supports 3-Way AMDA® CrossFire™ Technology

Expansion Slots

  • 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)

Storage

  • AMD® TRX40 Chipset; 6x SATA 6Gb/s ports, 1x M.2 slot (M2_3, Key M), Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices, 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor, 2x M.2 slots (M2_1 & M2_2, Key M), M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices, M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

LAN

  • 1x Intel® I211AT Gigabit LAN controller, 1x Aquantia® AQC107 10-Gigabit LAN controller

Wireless

  • Intel® Wi-Fi 6 AX200; The Wireless module is pre-install in the M2_4 (Key-E) slot, Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz- 5GHz (160MHz) up to 2.4Gbps, Supports Bluetooth® 5

Audio

  • 1x Realtek® ALC1220 Codec, 7.1-Channel High Definition Audio, 1x Realtek® ALC4050H Codec, Supports front & rear panel Mic-in, Supports S/PDIF output

USB Ports

  • AMD® TRX40 Chipset; 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector), 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors), 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors, 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor; 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel, ASMedia® ASM3242 Chipset; 1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

OS Support

  • Windows 10 64 bit

Internal I/O Ports

  • 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors, 6x SATA 6Gb/s connectors, 3x M.2 slots (M-Key), 1x USB 3.2 Gen2 Type-C port, 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin pump fan connector (supports up to 2A), 4x 4-pin system fan connectors, 3x 4-pin extend fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 3x 2-pin Thermal Sensors connectors, 1x 4-pin 5050 RGB LED connector, 2x 3-pin ARGB LED connectors, 1x 3-pin CORSAIR LED connector, 1x LED demo connector, 1x JBLK_U pin header, 1x JBLK_D pin header, 1x OC retry pin header, 1x OC force enter pin header, 1x Slow mode booting jumper

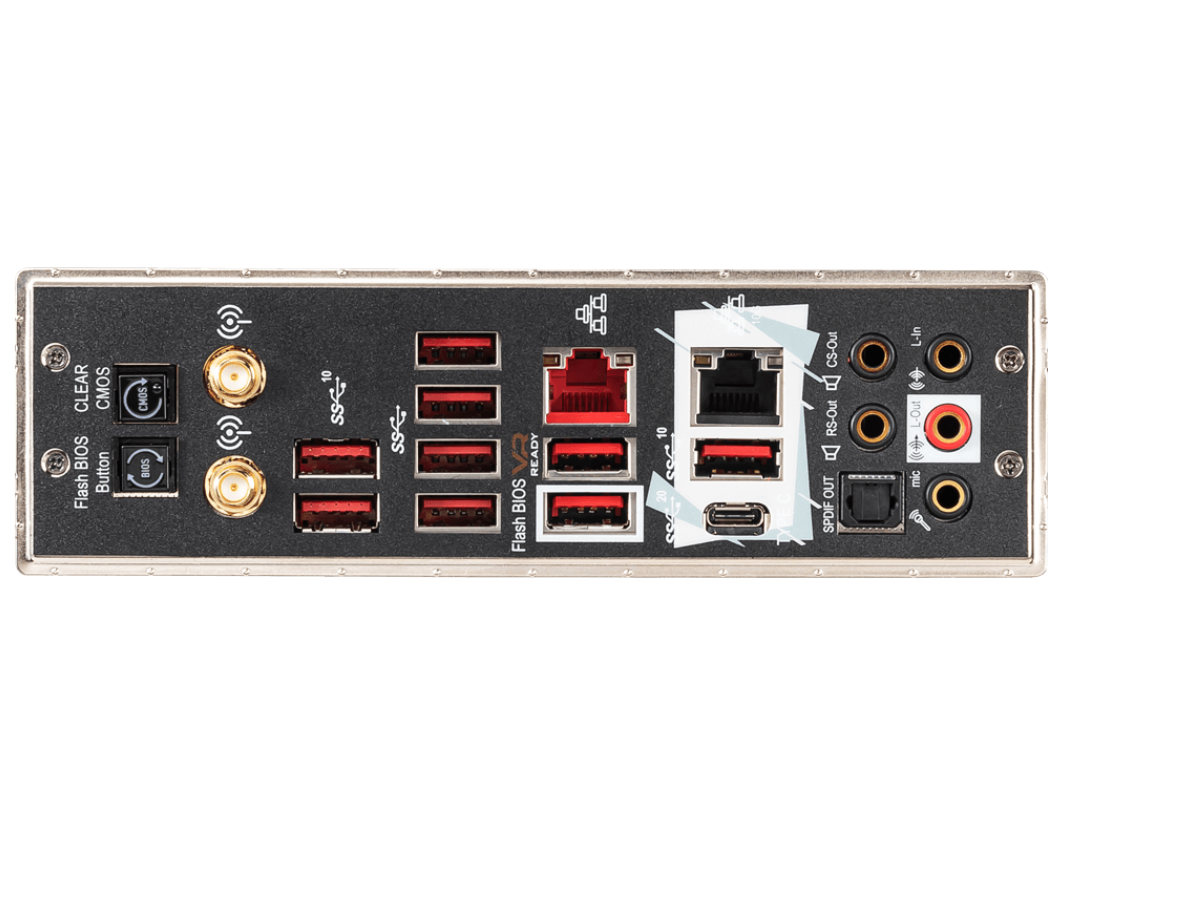

Back I/O Ports

  • Clear CMOS Button, Wireless / Bluetooth, Gigabit LAN, 10G LAN, 2 x USB 3.2 Gen2 Type-A Ports, 4 x USB 3.2 Gen1 Type-A Ports, 2 x USB 3.2 Gen2 Type-A Ports, x HD Audio Connectors, S/DIF Out
