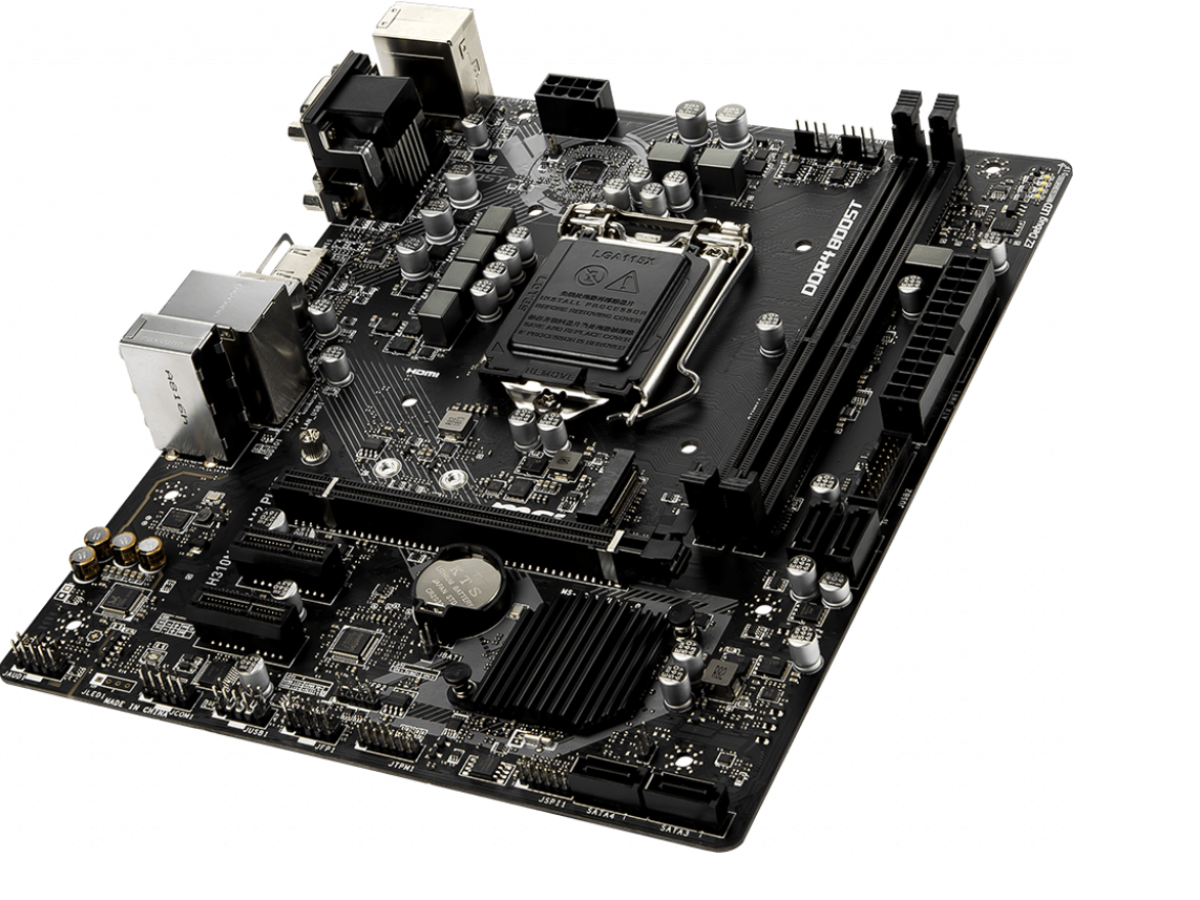

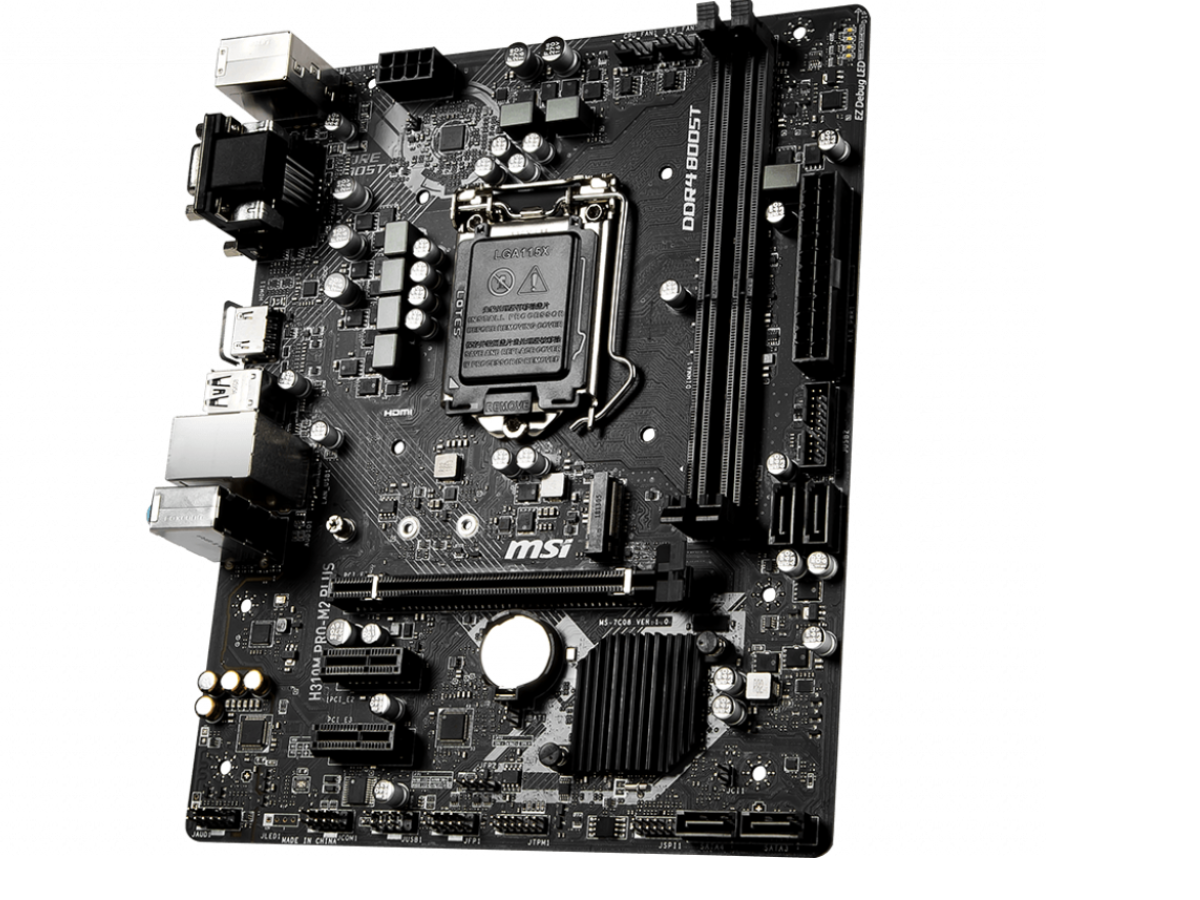

MSI H310M PRO-M2 Plus m-ATX, s1151, 8th Gen, 300 Series

Product Type:

Motherboards

Type Detail:

Intel Socket 1151 (3xx Chipset)

Manufacturer:

MSI

Manufacturer #:

H310MPROM2P

Part Status:

Discontinued

Milwaukee PC SKU:

264131

Price:

$79.99

Quick Tech Specs

Processor Manufacture:	Intel
Socket:	LGA 1151
Brand:	MSI
Chipset Manufacture:	Intel
Form Factor:	Micro ATX
SLI Support:	NONE
Crossfire Support:	NONE
Number of Memory Slots:	2 Slots
Max Memory:	32GB
Memory Type:	DDR4
PCI Express x16 Slots:	1 Slots
PCI Express x1 Slots:	2 Slots
PCI Slots:	None
WiFi Onboard:	NONE
RAID Support:	NONE
Sata 6 Gbits/s Ports (3.0/3.1):	4 Ports
Sata 3 Gbits/s Ports (2.0):	None
Sata Express 16 Gbits/s Ports (3.2):	None
M.2 Slots:	1 Slots
NVMe Support:	No
eSata Ports:	None
Legacy Ports:	NONE
Thunderbolt Ports:	NONE
USB 3.0 Ports:	2 Ports
USB 2.0 Ports:	4 Ports
Network Ports:	Gigabit (10/100/1000)
Display Ports:	NONE
DVI Ports:	1 Port
HDMI Ports:	1 Ports

MSI H310M PRO-M2 Plus

Form Factor

m-ATX Form Factor, 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)

CPU

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Chipset

Intel® H310 Chipset

Memory

2 x DDR4 memory slots, support up to 32GB, Supports DDR4 2666/ 2400/ 2133 MHz, Dual channel memory architecture, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP)

Graphics

1x VGA port, supports a maximum resolution of 2048 x 1536 @50Hz, 2048 x 1280 @60Hz, 1920 x 1200 @60Hz, 1x DVI-D port, supports a maximum resolution of 1920 x 1200 @60Hz, 1x HDMI™ port 1.4, supports a maximum resolution of 4096 x 2160 @30Hz, *No Display support when using the Processor model with suffix “F” Supports up to 2 displays simultaneously

Expansion Slots

1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots

Storage

4 x SATA 6Gb/s ports, 1 1 x M.2 slot (Key M), Support up to PCIe 2.0 x4 and SATA 6Gb/s, Supports 2242/ 2260 /2280 storage devices, 1 - SATA1 port will be unavailable when an M.2 SATA SSD is installed in the M2_1 slot.

LAN

1 x Intel I219-V Gigabit LAN controller

Audio

Realtek® ALC887 Codec 7.1-Channel High Definition Audio

USB Ports

Intel® H310 Chipset; 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors), 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

OS Support

Windows® 10 64-bit

Internal I/O Ports

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports), 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports), 1 x 4-pin CPU fan connector, 1 x 4-pin system fan connector, 1 x Front panel audio connector, 1 x Serial port connector, 2 x Front panel connectors, 1 x TPM module connector, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper

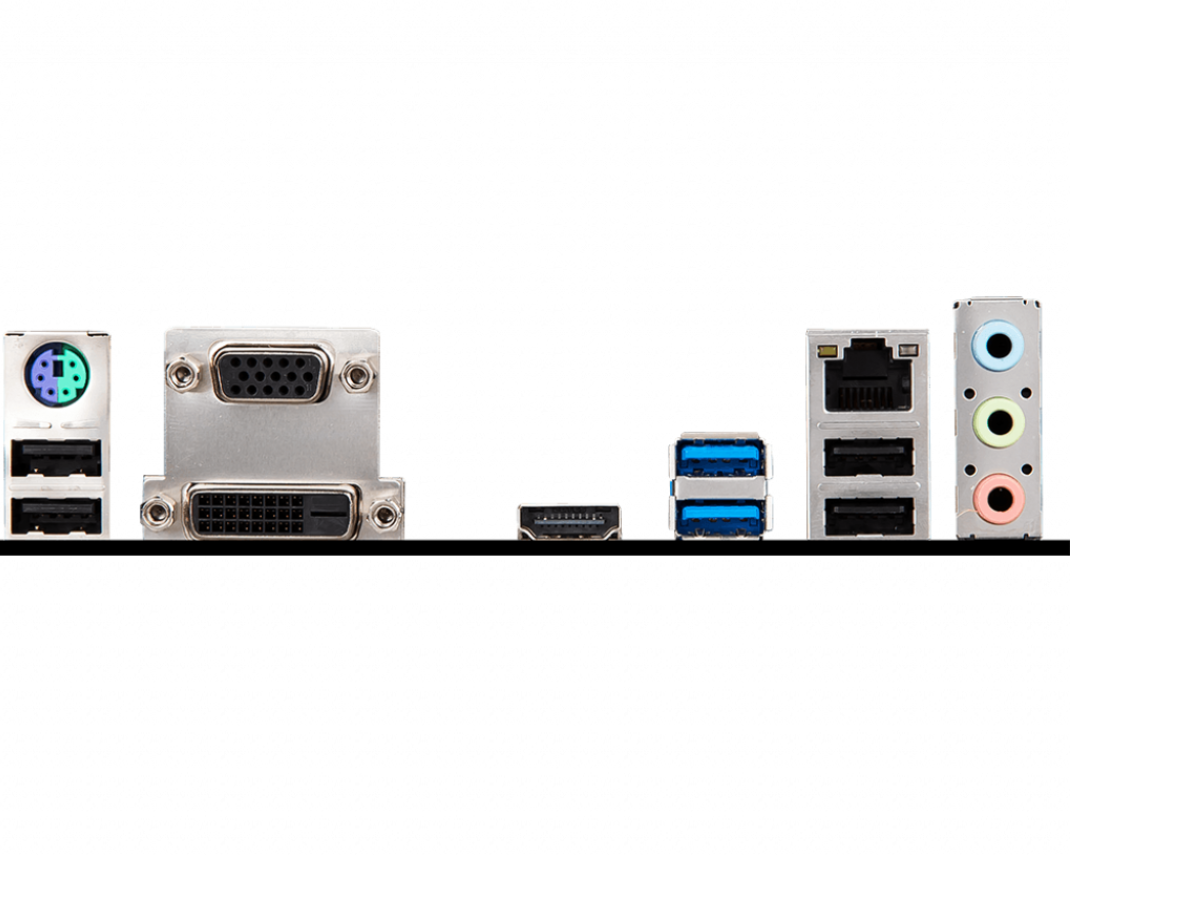

Back I/O Ports

PS/2 Combo, 4 x USB 2.0 Ports, 2 x USB 3.1 Gen1 Ports, VGA, HDMI, DVI-D, LAN, 3 x HD Audio Connectors
