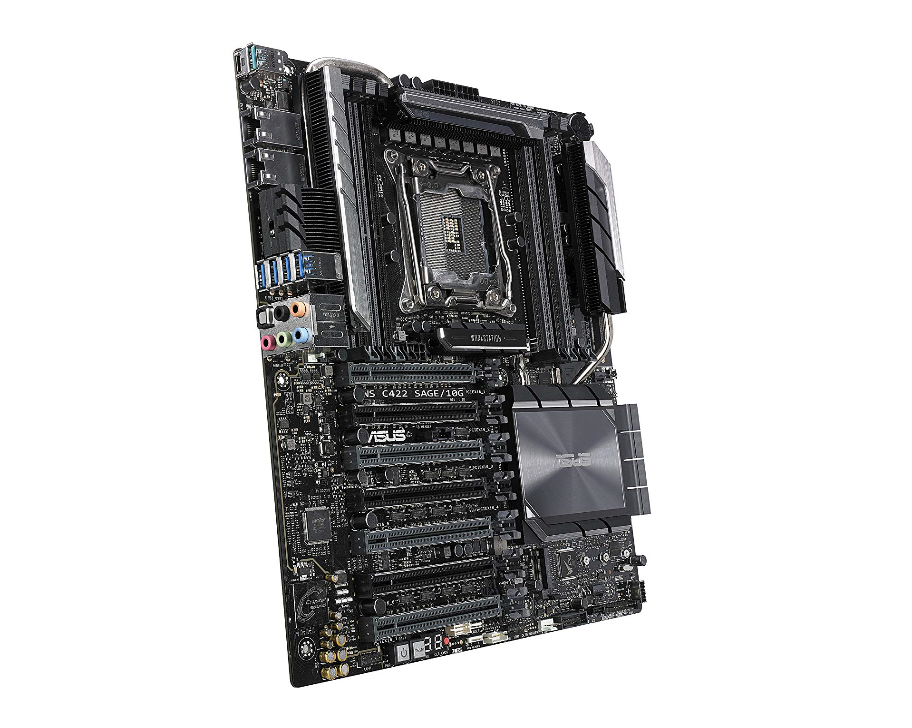

ASUS WS C422 SAGE/10G LGA2066 CEB

The ASUS WS C422 SAGE/10G delivers a powerful performance with features like ECC DDR4 and Intel VROC. SafeSlot protection supports 4-way NVIDIA SLI or AMD CrossfireX, while dual M.2 and U.2 ports with front-panel USB 3.1 optimize data speeds. ASUS Control Center delivers complete IT infrastructure management with cost-saving features. 3 Years w/ 1st year ARS Warranty

Form Factor

• CEB Form Factor, 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )

CPU

• Intel® Socket 2066 Processors, Supports Intel® Virtual RAID on CPU (VROC), Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® C422

Memory

• 8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory, Quad Channel Memory Architecture

Multi-GPU Support

• Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology

Expansion Slots

• Intel® C422 Chipset, 7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, )

Storage

• Intel® C422 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 8 x SATA 6Gb/s port(s), 2 x U.2 connector, Support Raid 0, 1, 5, 10, Intel® Rapid Storage Technology Enterprise supports, Intel® Virtual RAID (VROC) support for CPU RAID

LAN

• Intel® X550-AT2, 2 x 10 Gigabit LAN

Audio

• Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) - Supports up to 32-Bit/192kHz playback, Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs, Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports

• Intel® C422 Chipset: 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board), ASMedia® USB 3.1 Gen 2 controller: 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM), ASMedia® USB 3.1 Gen 2 controller: 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 1 x Aura Addressable Strip Header(s), 2 x U.2 port, 1 x AAFP connector, 1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 1 x TPM header, 1 x COM port(s) connector(s), 8 x SATA 6Gb/s connector(s), 1 x VROC_HW_Key, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 6-pin ATX Power connector, 2 x 8-pin ATX 12V Power connector(s), 1 x EZ XMP switch, 1 x 5-pin EXT_FAN(Extension Fan) connector, 1 x Power-on button(s), 1 x Reset button(s), 1 x Clear CMOS button(s), 1 x USB BIOS Flashback button(s), 1 x Water Pump header (4-pin), 1 x System panel connector, 1 x Thermal sensor connector, 1 x USB 3.1 Gen 2 front panel connector, 1 x CPU_OV jumper, 1 x MemOK! Button, 1 x M.2 Fan Header

Back I/O Ports

• 2 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 (black)Type-C, 1 x Optical S/PDIF out, 1 x 8-channel Audio I/O, 4 x USB 3.1 Gen 1 (blue)

Workstation Feature

• ASUS Control Center (ACC)

Special Features

• Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control, ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection, AURA : - Aura RGB Strip Headers - Aura Addressable Strip Header(s), ASUS Exclusive Features : - MemOK! - Ai Charger+ - Onboard Button : Power/Reset - File Transfer, DIGI + Power Control : - CPU Power: Digital 8-phase power design, DIGI + Power Control : - DRAM Power: Digital 2-phase power design, ASUS EZ DIY : - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode, ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Turbo App, M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2), Asus Control Center (ACC) IT management software supported, Intel® Virtual RAID on CPU (VROC) ready, ASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins function, Thunderbolt 3 support

Accessories

• User's manual, Addressable LED extension cable, 1 x Vertical M.2 bracket set, I/O Shield, 1 x COM port cable(s), 8 x SATA 6Gb/s cable(s), 1 x M.2 screws, 1 x Supporting DVD, 1 x 3-Way SLI bridge(s), 1 x 4-Way SLI bridge(s), 1 x SLI HB BRIDGE(2-WAY-M), 1 x Q-Connector
