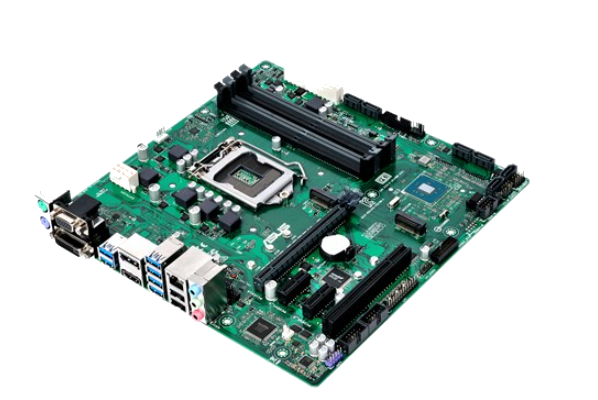

Asus Prime Q270M C/CSM LGA1151 Micro-ATX

Form Factor

• Micro ATX Form Factor

CPU

• Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® Q270

Memory

• 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP)

Graphics

• Integrated Graphics Processor: Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Maximum shared memory of 1024 MB, Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™, Supports up to 3 displays simultaneously

Expansion Slots

• 1 x PCIe 3.0/2.0 x16, 2 x PCIe 3.0/2.0 x1, 1 x PCI

Storage

• Intel® Q270 Chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4), Support Raid 0, 1, 5, 10, Intel® Optane™ Memory Ready

LAN

• Intel® I219LM, 1 x Gigabit LAN Controller

Audio

• Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking

USB Ports

• Intel® Q270 chipset: 10 x USB 3.1 Gen 1 port(s) (6 at back panel, blue, 0 at mid-board), Intel® Q270 chipset: 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 0 at mid-board)

OS Support

• Windows® 10 86x64, Windows® 8.1 86x64, Windows® 7 86x64

Internal I/O Ports

• 1 x MONO out header, 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only), 1 x LPT header, 2 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Internal speaker connector(s), 1 x System panel(s), 1 x Chassis Intrusion connector(s), 1 x 14-1 pin TPM connector, 1 x LPC Debug header

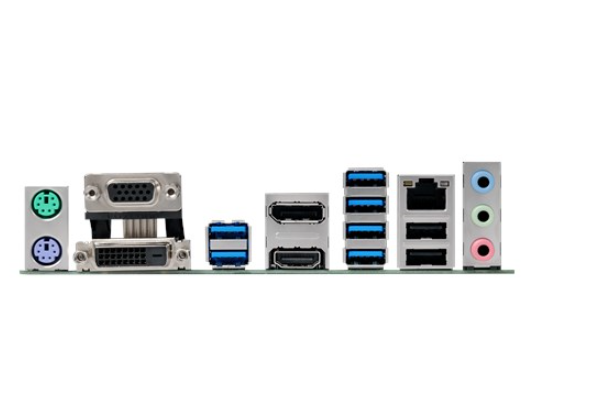

Back I/O Ports

• 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 6 x USB 3.1 Gen 1 (blue), 2 x USB 2.0, 3 x Audio jack(s)

Special Features

• ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM, TPM IC Onboard, Digi+VRM

Accessories

• User's manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD
