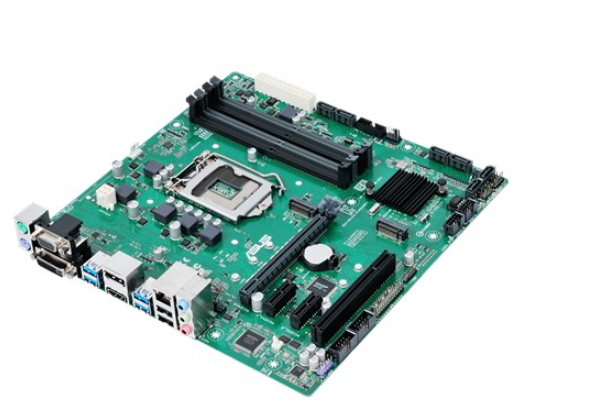

Asus Prime B250M-C/CSM LGA1151 microATX 6th/7th Gen
Product Type:
Motherboards
Type Detail:
Intel Socket 1151 (1xx/2xx Chipset)
Manufacturer:
Asus
Manufacturer #:
PRIMEB250M-C/CSM
Part Status:
Discontinued
Milwaukee PC SKU:
264056
Price:
$99.99

ASUS PRIME B250M-C/CSM LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard B250 chipset with USB 3.1 - Ready for 7th generation Intel Core ASUS PRIME B250M-C/CSM LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard B250 chipset with USB 3.1 - processors, the Prime B250M-PLUS delivers a powerful performance in mircoATX form. 5X Protection III with FanXpert 2 provides hardware-level safeguards for component longevity, 8-Channel Audio with Japanese Capacitors for crystal-clear sound, while front-panel USB 3.0 and Dual M.2 deliver maximum transfer speeds.

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1151
Brand: ASUS
Chipset Manufacture: Intel
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 4 Slots
Max Memory: 64GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: 1 Slots
WiFi Onboard: NONE
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 2 Slots
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: 4 Ports
USB 2.0 Ports: 2 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
DVI Ports: 1 Port
HDMI Ports: 1 Ports



Form Factor

  • Micro ATX Form Factor, 9.6 inch x 9.6 inch

CPU

  • Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0

Chipset

  • Intel® B250

Memory

  • 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP)

Graphics

  • Integrated Graphics Processor; Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Maximum shared memory of 1024 MB, Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™, Supports up to 3 displays simultaneously

Expansion Slots

  • 1 x PCIe 3.0/2.0 x 16, 2 x PCIe 3.0/2.0 x 1, 1 x PCI

Storage

  • Intel® B250 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode), 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode), 6 x SATA 6Gb/s port(s), Intel® Optane™ Memory Ready

LAN

  • Intel® I219V, 1 x Gigabit LAN Controller

Audio

  • Realtek® ALC887 8-Channel High Definition Audio CODEC, - Supports : Jack-detection, Front Panel Jack-retasking

USB Ports

  • Intel® B250 Chipset: 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board), Intel® B250 Chipset: 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

OS Support

  • Windows® 10 86x64, Windows® 8.1 86x64, Windows® 7 86x64

Internal I/O Ports

  • 1 x MONO out header, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only), 1 x LPT header, 2 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x CPU fan with PWM control, 1 x 24-pin EATX Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Internal speaker connector(s), 1 x System panel(s), 1 x Chassis Intrusion connector(s), 1 x 14-1 pin TPM connector

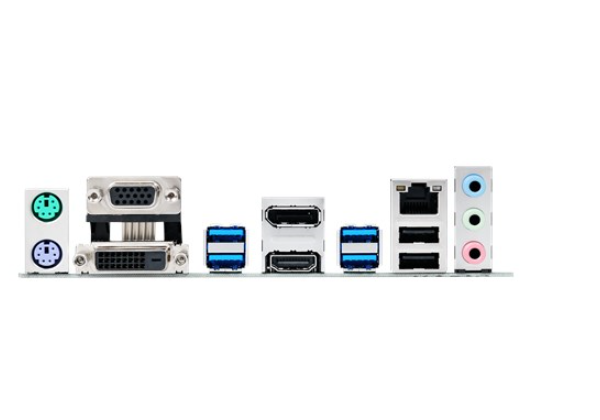

Back I/O Ports

  • 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue), 2 x USB 2.0, 3 x Audio jack(s)

Accessories

  • User's manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD

Special Features

  • ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design, ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM, Digi+VRM

Support Disc

  • Drivers
