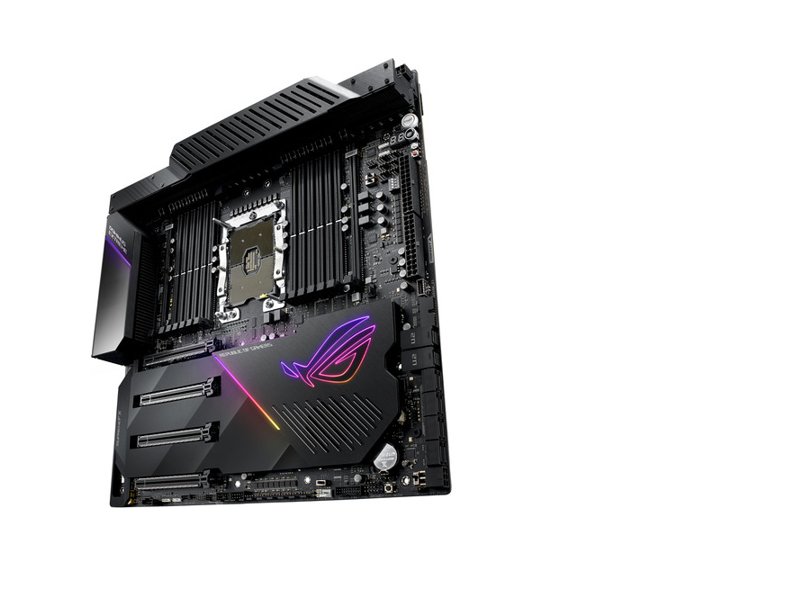

Asus ROG Dominus Extreme, LGA 3647, EEB Form Factor

LGA 3647 socket, engineered to overclock Intel Xeon W-3175X processors. Designed for extreme performance with 32 power phases, dual 24-pin, quad 8-pin and dual 6-pin 12V power connectors that deliver industry-leading power efficiency. Quad strength graphic power featuring 4-Way PCIe 3.0 link supporting NVIDIA GeForce SLI, NVIDIA NVLink and AMD CrossFireX. Built for high performance networking: Onboard Aquantia AQC-107 10G LAN, Intel I219-LM Gigabit LAN, Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) and ROG GameFirst technology. 5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance, plus 14 PWM fan headers to support dynamic system cooling

Form Factor

• EEB Form Factor, 14 inch x 14 inch

CPU

• Intel® Socket 3647 for Xeon® W-3175X Processors, Supports Intel® Virtual RAID on CPU (VROC)

Chipset

• Intel® C621

Memory

• Intel® Xeon® W-3175X Processor, 12 x DIMM, Max. 192GB, DDR4 4200(O.C.)/4000(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.) /3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.) /2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory, Six Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU Support

• Supports NVIDIA® 4-Way SLI™ Technology, Supports NVIDIA® 3-Way SLI™ Technology, Supports NVIDIA® 2-Way SLI™ Technology, Supports AMD 4-Way CrossFireX Technology, Supports AMD 3-Way CrossFireX™ Technology, Supports AMD 2-Way CrossFireX Technology

Expansion Slots

• 48-Lane CPU-Intel® Xeon® W-3175X Processor, 4 x PCIe 3.0 x16 (x16/x16/x16, x16/x8/x16/x8)

Storage

• Intel® Xeon® W-3175X Processor : 2 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 2 x U.2 connector, Intel® C621 Chipset : 6 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 2 x SATA 6Gb/s port(s), Intel® Optane™ Memory Ready, Intel® Virtual RAID (VROC) support for CPU RAID

LAN

• Aquantia AQC-107 10G, Intel® I219-LM, Anti-surge LANGuard, ROG GameFirst Technology

Wireless Data Network

• Intel® Wireless-AC 9260, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Bluetooth

• Bluetooth® 5.0

Audio

• ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS®SABRE9018Q2C DAC/AMP - Supports up to 32-Bit/192kHz playback, Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III - Sonic Studio III + Sonic Studio Link

USB Ports

• Intel® C621 Chipset : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, +blue), Intel® C621 Chipset : 4 x USB 2.0 port(s) (4 at mid-board), ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s), ASMedia® USB 3.1 Gen 2 controller : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, +black+red, 2 x Type-A+2 x Type-C), ASMedia® USB 3.1 Gen 1 controller : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 2 x Aura Addressable Strip Header(s), 2 x Aura RGB Strip Headers, 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 8 x SATA 6Gb/s connector(s), 1 x VROC_HW_Key, 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 2 x LED connectors (Back I/O cover, PCH, OLED), 2 x Chassis Fan connector(s) (2 x 4 -pin), 1 x PCH_FAN (1 x 3 -pin), 2 x HS_FAN (2 x 4 -pin), 2 x W_PUMP+ connector (2 x 4 -pin), 1 x WB_SENSOR (1 x 9 -pin), 1 x Thunderbolt header(s), 2 x 6-pin EATX 12 V Power connector, 2 x 24-pin EATX Power connector(s), 4 x 8-pin EATX 12V Power connectors, 1 x 6-pin EZ_PLUG Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Slow Mode switch(es), 13 x ProbeIt Measurement Points, 1 x BIOS Switch button(s), 1 x Node Connector(s), 1 x LN2 Mode jumper(s), 1 x Safe Boot button, 1 x ReTry button, 1 x 14-1 pin TPM connector, 2 x U.2 connector, 1 x System panel connector, 1 x PCIe x16 lane switch, 2 x T_Sensor Connector, 1 x W_IN header, 1 x W_OUT header, 1 x W_FLOW header, 1 x USB 3.1 Gen 2 front panel connector, 1 x Speaker connector, 2 x DIMM.2 Slot supports 2 M.2 drives (2242-22110), 1 x PAUSE Switch, 2 x RSVD Switch, 8 x Radiator Fan Headers, 1 x Start button, 1 x Reset button, 1 x Q-Code

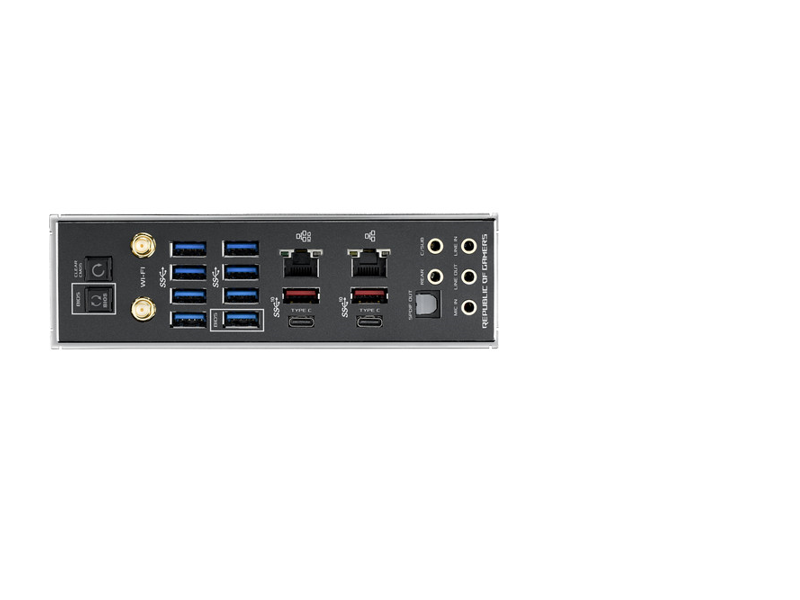

Back I/O Ports

• 2 x USB 3.1 Gen 2 (black)Type-C, 2 x USB 3.1 Gen 2 (red)Type-A, 8 x USB 3.1 Gen 1 (blue), 1 x Optical S/PDIF out, 1 x Clear CMOS button(s), 1 x USB BIOS Flashback® Button(s), 1 x ASUS Wi-Fi Module, 5 x LED-illuminated audio jacks, 1 x Aquantia AQC-107 10G LAN port, Anti-surge LAN (RJ45) port

ROG Exclusive Features

• Clear CMOS button, Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors, ROG Extreme OC kit : - ReTry button - Safe Boot button - Start button - Reset button - Slow Mode - LN2 Mode - PCIe x16 Lane Switch, ProbeIt, USB BIOS Flashback®, ROG Patented Pre-mounted I/O Shield, ROG Exclusive Software - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III - Overwolf, ROG DIMM.2 module with heatsink, ROG Aluminum heatsink cover

Special Features

• Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control, LiveDash OLED 1.77" AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s), ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - ASUS CrashFree BIOS 3 - ASUS NODE: hardware control interface - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BUPDATER - BIOS Flashback® Button - Clear CMOS Button, ASUS Q-Design : - ASUS Q-Code - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

Accessories

• User's manual, 1 x ROG logo plate sticker, 4 x M.2 Screw Package, 1 x CPU installation tool, 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant), 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header), 1 x Fan Extension Card II power cable, 1 x Fan Extension Card II NODE connector cable, 1 x Fan Extension Card II screw package, 1 x SLI HB BRIDGE(2-WAY-L), 1 x Q-Connector, 1 x ROG Logo Sticker(s), 1 x Extension Cable for RGB strips (80 cm), 1 x Extension cable for Addressable LED, 3 x Thermistor cable(s), 1 x USB drive with utilities and drivers, 1 x ROG coaster(s), 8 x ROG weave SATA 6G cable, 2 x ROG DIMM.2 with heatsink, 2 x M.2 Pad for ROG DIMM.2 Support Disc, Drivers, EZ Update, Anti-virus software (OEM version), ASUS Utilities
