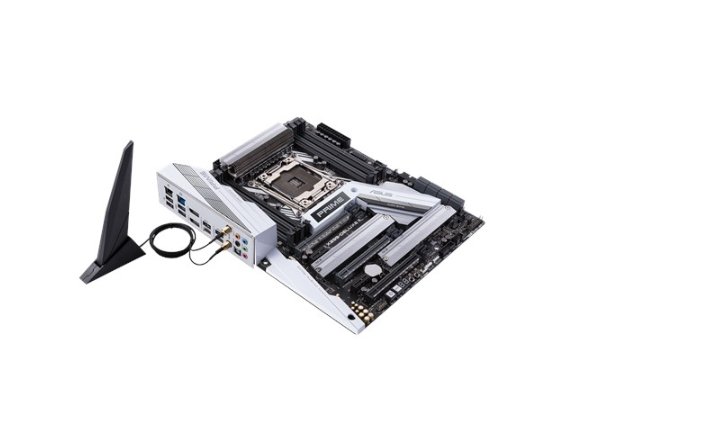

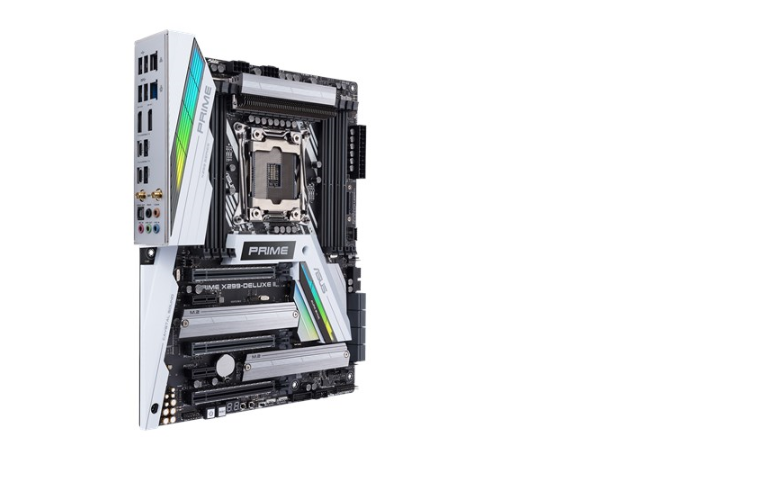

Asus Prime X299 Deluxe II - ATX, X Series

ASUS Prime X299-Deluxe II is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-Deluxe II.

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch

CPU

• Intel® Socket 2066 Core™ X-Series Processors

Chipset

• Intel® X299

Memory

• 8 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.) /3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP)

Thunderbolt

• 2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs, Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz, * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps, Daisy-chain up to 12 Thunderbolt devices, Up to 5V/3A, 15W charging support

Multi-Graphics

• Supports NVIDIA® Quad-GPU SLI™ Technology, Supports NVIDIA® 3-Way SLI™ Technology, Supports NVIDIA® 2-Way SLI™ Technology, Supports AMD Quad-GPU CrossFireX™ Technology, Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

• 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8), 2 x PCIe 3.0/2.0 x1, 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8), 1 x PCIe 3.0/2.0 x16 (x2 mode), 2 x PCIe 3.0/2.0 x1

Storage

• Intel® X299 Chipset: 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 8 x SATA 6Gb/s port(s)*1, Support Raid 0, 1, 5, 10, Intel® Rapid Storage Technology supports, Intel® Core™ X-series Processors (6-core above): 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), Support Raid 0, 1, 5, 10, Intel® Rapid Storage Technology Enterprise supports, Intel® Optane™ Memory Ready

LAN

• Aquantia AQC111C 5G LAN, Intel® I219V, 1 x Gigabit LAN, ASUS Turbo LAN Utility, ASUS LAN Guard

Wireless Data Network

• Intel® Wireless-AC 9260, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Bluetooth

• Bluetooth® 5.0

Audio

• Realtek® S1220A 8-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs

USB Ports

• Intel® Thunderbolt™ 3 Controller: 2 x USB 3.1 Gen 2 port(s) (USB Type-CTM), ASMedia® USB 3.1 Gen 2 controller: 1 x USB 3.1 Gen 2 front panel connector port(s), Intel® X299 Chipset: 5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board), Intel® X299 Chipset: 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board), ASMedia® USB 3.1 Gen 1 Hub: 3 x USB 3.1 Gen 1 port(s) (3 at back panel, )

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 1 x Aura Addressable Strip Header(s), 1 x AAFP connector, 2 x Aura RGB Strip Header, 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 8 x SATA 6Gb/s connector(s), 1 x M.2_FAN connector, 1 x VROC_HW_Key, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x W_PUMP+ connector, 1 x AIO_PUMP connector, 1 x 24-pin EATX Power connector(s), 2 x 8-pin EATX 12V Power connectors, 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt), 1 x MemOK! II switch(es), 1 x Thermal sensor connector(s), 1 x CPU OV, 1 x Power-on button(s), 1 x Reset button(s), 1 x Clear CMOS button(s), 1 x Node Connector(s), 1 x USB BIOS Flashback button(s), 1 x USB 3.1 Gen 2 front panel connector, 1 x Q-Code

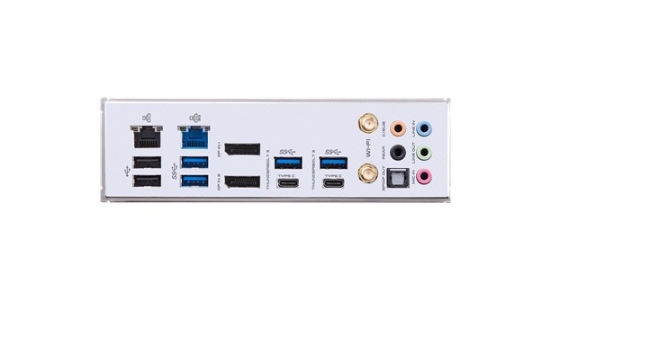

Back I/O Ports

• 2 x Thunderbolt 3 ports TypeC™, 2 x DisplayPort IN ports for Thunderbolt™ 3, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1, 2 x USB 2.0 (one port can be switched to USB BIOS Flashback), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0, 1 x AQC-111C 5G LAN port

Special Features

• OC Design - ASUS PRO Clock II Technology, 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App, ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection 2 ” LiveDash, AURA: - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s), ASUS Exclusive Features: - USB BIOS Flashback - MemOK! II - AI Suite 3 - Ai Charger - Onboard Button: Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Pre- mounted I/O shield - ASUS NODE: hardware control interface ASUS Quiet Thermal Solution: - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector DIY Friendly Design - Procool - SafeSlot Q-Installer - Auto download driver and software. Friendly for first PC builder.

Accessories

• User's manual, 1 x Vertical M.2 bracket set, 6 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant), 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header), 1 x Fan Extension Card II power cable, 1 x Fan Extension Card II NODE connector cable, 1 x Fan Extension Card II screw package, 1 x DisplayPort cable, 1 x SLI HB BRIDGE(2-WAY-M), 1 x Q-Connector, 1 x Extension cable for Addressable LED, 3 x Thermistor cable(s), 1 x CPU Fan Holder
