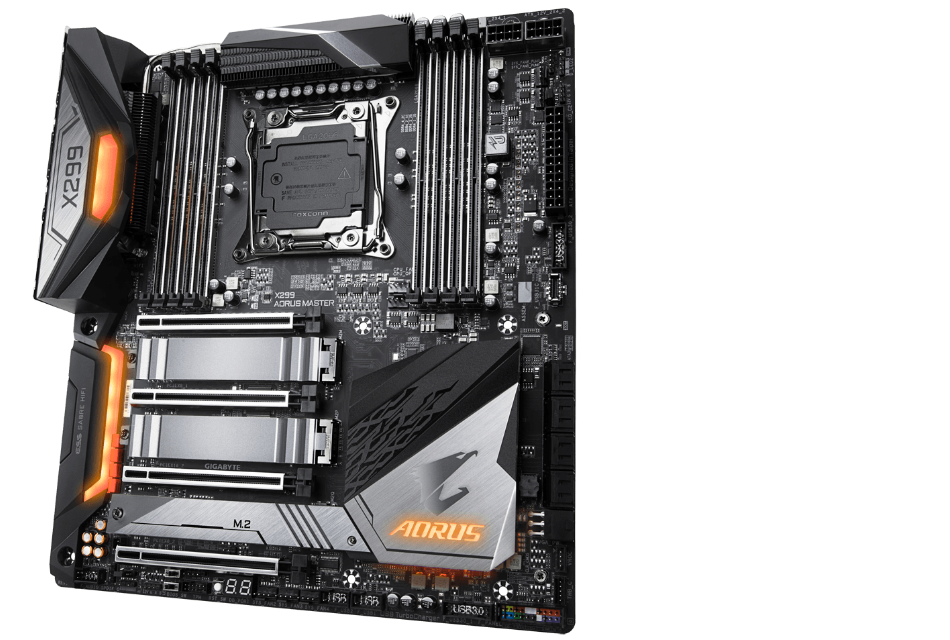

Gigabyte X299 AORUS MASTER, E-ATX, Socket 2066
Product Type:
Motherboards
Type Detail:
Intel Socket 2066
Manufacturer:
Gigabyte
Manufacturer #:
X299AORUSMASTER
Part Status:
Discontinued
Milwaukee PC SKU:
263980
Price:
$472.99

Intel X299 Aorus Master

Quick Tech Specs

Processor Manufacture: Intel
Brand: Gigabyte
Chipset Manufacture: Intel
Form Factor: Extended ATX
SLI Support: YES
Crossfire Support: YES
Number of Memory Slots: 8 Slots
Max Memory: 128GB
Memory Type: DDR4
PCI Express x16 Slots: 4 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: WiFI AC
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 8 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: 6 Ports
USB 2.0 Ports: None
Network Ports: Dual Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: NONE
HDMI Ports: None


Gigabyte X299 AORUS MASTER, E-ATX, Socket 2066

Intel X299 AORUS Motherboard with 12 Phases Digital VRM, Fins-Array Heatsink with 6mm heatpipe, 2.5GbE LAN and Intel LAN, 802.11ac Wireless with High Gain Antenna, Triple M.2 with Thermal Guards, ESS SABRE 9218 DAC, Front & Rear USB 3.1 Gen 2 Type-C


Form Factor

  • E-ATX Form Factor; 30.5cm x 26.9cm

CPU

  • 1.Support for Intel® Core™ X series 44-lane/28-lane processors (6-core or above) in the LGA2066 package

Chipset

  • Intel® X299 Express Chipset

Memory

  • 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory, 4 channel memory architecture, Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules, Support for non-ECC Un-buffered DIMM, Support for Extreme Memory Profile (XMP) memory modules

Multi-Graphics

  • Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies, Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies

Expansion Slots

  • 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2), 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

Storage

  • CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M), Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2Q), 8 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, * The M2M connector must work with an Intel® VROC Upgrade Key to support RAID configuration. * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready

LAN

  • 1 x Realtek® GbE LAN chip (10/100/1000/2500 Mbit) (LAN1), 1 x Intel® GbE LAN (10/100/1000 Mbit) (LAN2)

Wireless Communication module

  • Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR, Support for 11ac wireless standard and up to 867 Mbps data rate * Actual data rate may vary depending on environment and equipment.

Audio

  • Realtek® ALC1220-VB codec, ESS SABRE9218 DAC chip, * The front panel line out jack supports DSD audio. High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out

USB Ports

  • Chipset+2 ASMedia® USB 3.1 Gen 2 Controllers: 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header, 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support, 1 x USB 3.1 Gen 2 Type-A ports (red) on the back panel, Chipset+USB 2.0 Hub: 1.4 x USB 2.0/1.1 ports available through the internal USB headers, Chipset: 1.10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

OS Support

  • Windows 10 64-bit

Internal I/O Ports

  • 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x VGA_PW power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x addressable LED strip power select jumpers, 2 x RGB LED strip headers, 3 x M.2 Socket 3 connectors, 8 x SATA 6Gb/s connectors, 1 x Intel® VROC Upgrade Key header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C™ header, with USB 3.1 Gen 2 support, 2 x USB 3.1 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x Thunderbolt™ add-in card connector, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x reset button, 1 x Clear CMOS jumper, 2 x temperature sensor headers, 2 x BIOS switches

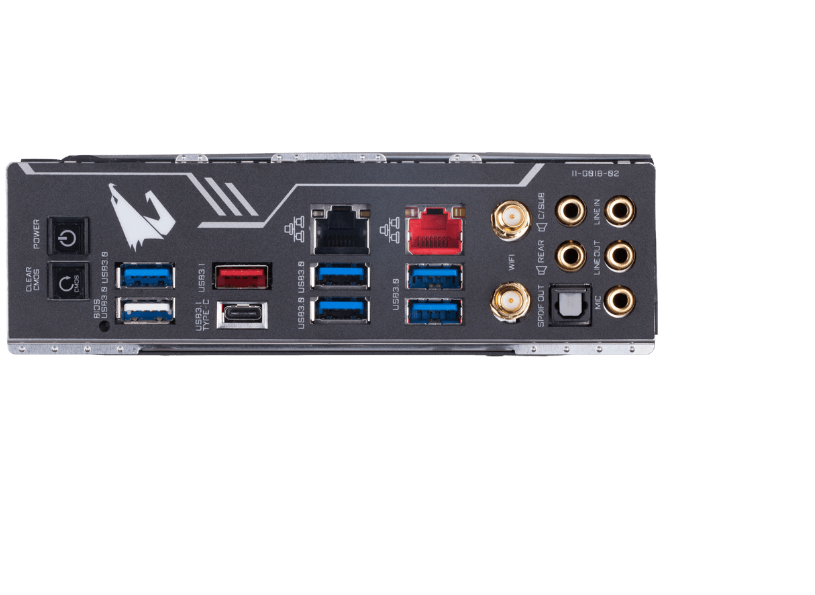

Back I/O Ports

  • 1 x power button 1 x Clear CMOS button 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 6 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks

Special Features

  • Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD, @BIOS, AutoGreen, Cloud Station, EasyTune, Easy RAID, Fast Boot, Game Boost, Platform Power Management, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, Smart Survey, System Information Viewer, USB Blocker, USB TurboCharger, Support for Q-Flash, Support for Xpress Install
