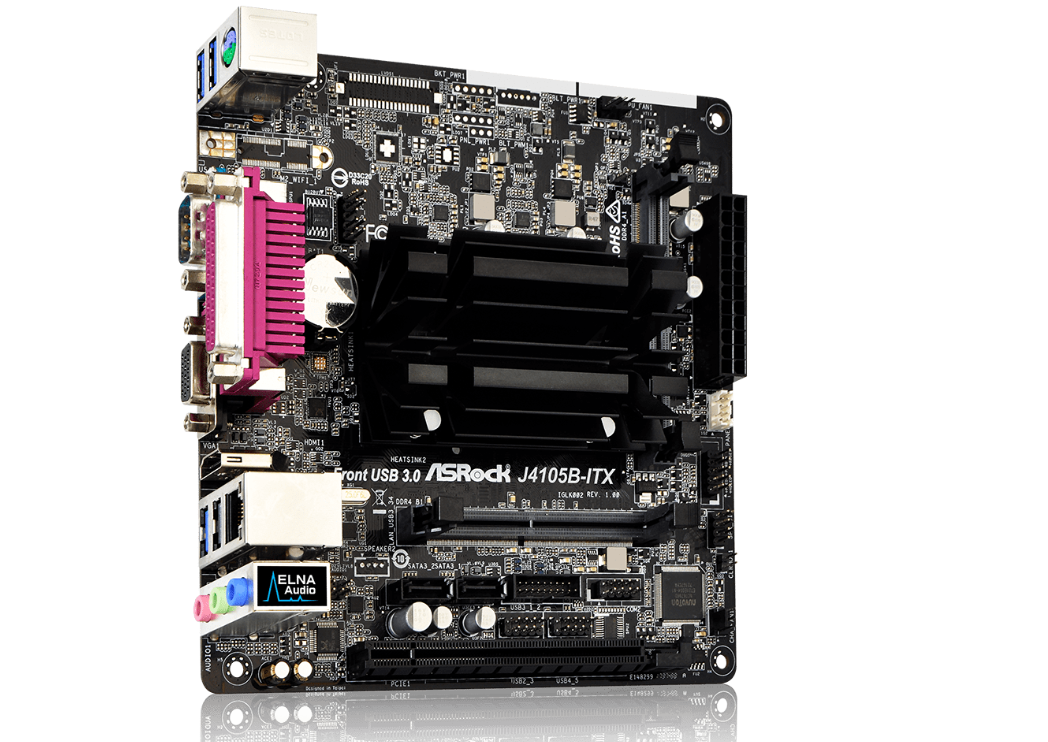

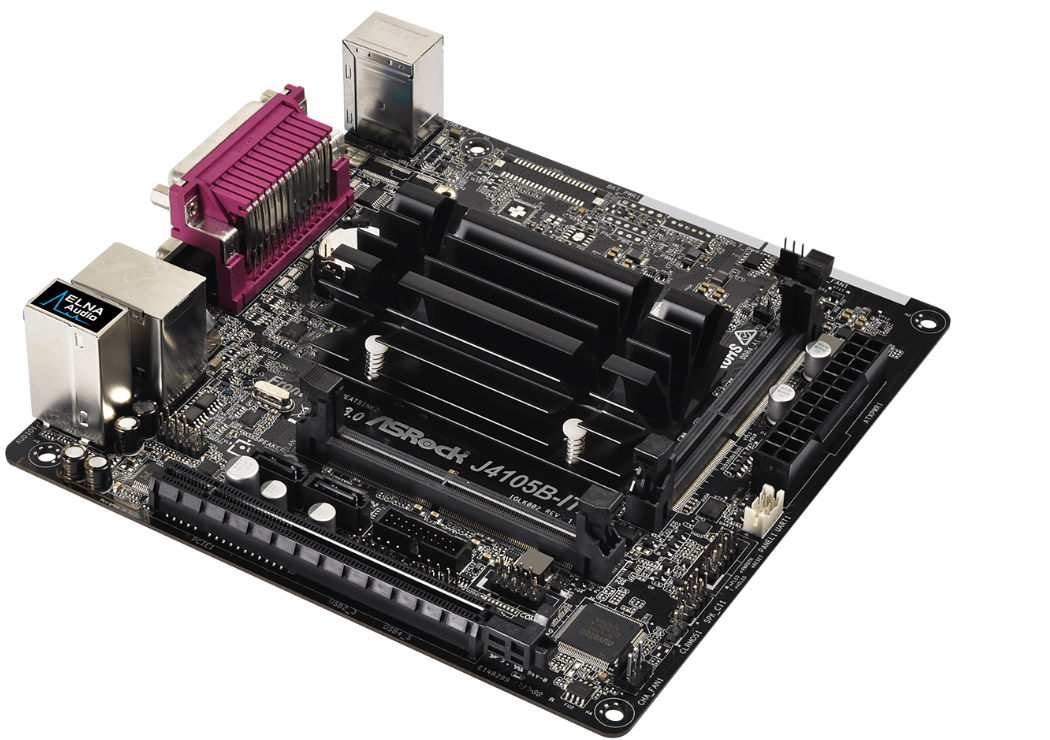

Asrock J4105B-ITX Motherboard w/integrated CPU
Product Type:
Motherboards
Type Detail:
Integrated CPU
Manufacturer:
ASRock America
Manufacturer #:
J4105B-ITX
Part Status:
Discontinued
Milwaukee PC SKU:
263972
Price:
$99.99

Quick Tech Specs

Processor Manufacture: Intel
Brand: ASRock
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 2 Slots
Max Memory: 8GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: None
PCI Slots: None
WiFi Onboard: NONE
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): None
Sata 3 Gbits/s Ports (2.0): 2 Ports
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: None
NVMe Support: No
eSata Ports: None
Legacy Ports: 1 Serial Port & 1 Parallel Port
Thunderbolt Ports: NONE
Network Ports: Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports


Asrock J4105B-ITX Motherboard w/integrated CPU


Form Factor

  • Mini-ITX Form Factor: 6.7-in x 6.7-in,

CPU

  • Intel® Quad-Core Processor J4105 (up to 2.5 GHz)

Memory

  • Dual Channel DDR4 Memory Technology - 2 x DDR4 SO-DIMM Slots - Supports DDR4 2400/2133 non-ECC, un-buffered memory - Max. capacity of system memory: 8GB

Graphics

  • Integrated Intel® UHD Graphics 600: 12 EUs inside (Up to 750MHz) - DX12, OpenGL 4.3, OGL ES 3.0, OpenCL 2.0 - HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit - HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Expansion Slots

  • 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)

Storage

  • 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

LAN

  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE

Audio

  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection - ELNA Audio Caps

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*

Back I/O Ports

  • 1 x PS/2 Mouse/Keyboard Port - 1 x Parallel Port (ECP/EPP Support) - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 1 x USB 2.0 Port (Supports ESD Protection) - 3 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone

Special Features

  • ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB, ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop

Accessories

  • Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
