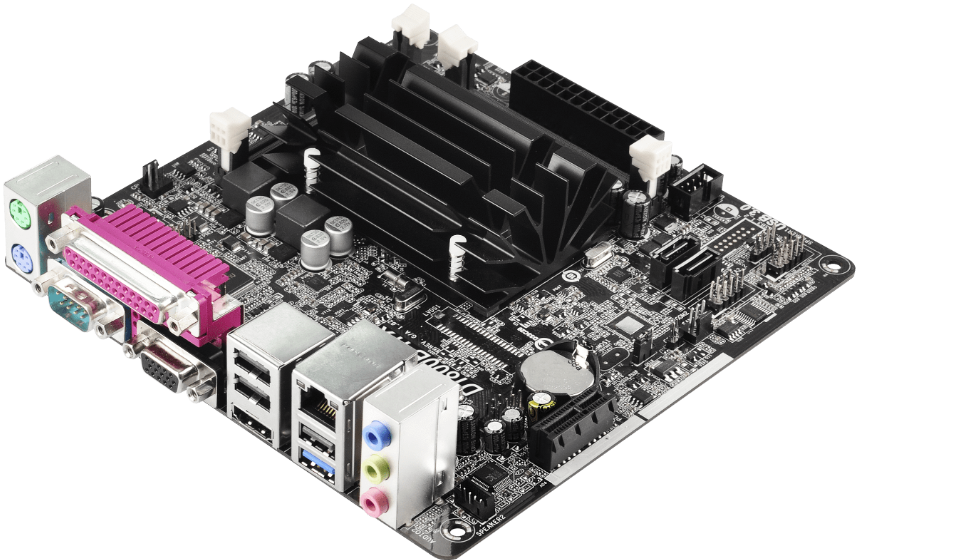

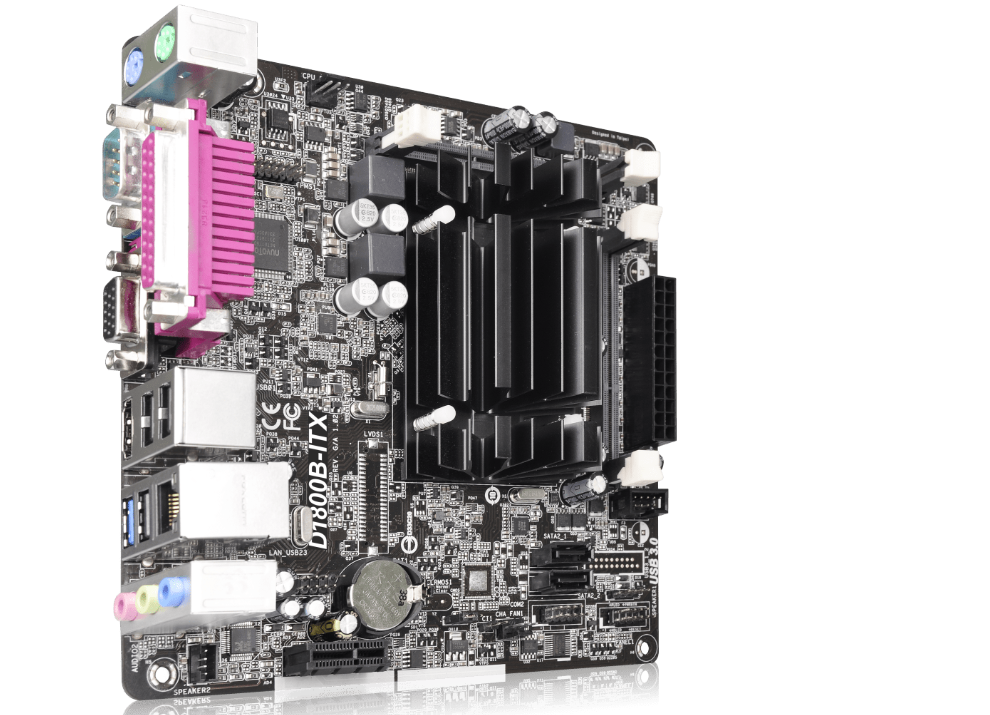

Asrock Q1800B-ITX Motherboard w/integrated CPU
Product Type:
Motherboards
Type Detail:
Integrated CPU
Manufacturer:
ASRock America
Manufacturer #:
D1800B-ITX
Part Status:
Phase-Out
Milwaukee PC SKU:
263913
Price:
$99.99

Quick Tech Specs

Processor Manufacture: Intel
Brand: ASRock
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 2 Slots
Max Memory: 16GB
Memory Type: DDR3
PCI Express x16 Slots: None
PCI Express x1 Slots: 1 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): 2 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: None
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
Network Ports: Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports


Intel® Dual-Core Processor J1800 + Mini-ITX Motherboard - Solid Capacitor for CPU power - Supports DDR3/DDR3L 1333 memory, 2 SO-DIMM - 1 PCIe 2.0 x1 - Graphics Output Options : D-Sub, HDMI - Built-in Intel® 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0 - 1 Print Port, 1 COM Port, 1 COM Port Header - 1 USB 3.1 Gen1, 5 USB 2.0 (2 Front, 3 Rear), 2 SATA2 - Realtek Gigabit LAN - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key


Form Factor

  • Mini-ITX Form Factor - Solid Capacitor for CPU power - High Density Glass Fabric PCB

CPU

  • Intel® Dual-Core Processor J1800 (2.41 GHz)

BIOS

  • 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 Compliant wake up events - Supports jumperfree - SMBIOS 2.7 Support

Memory

  • Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L SO-DIMM Slots - Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB

Graphics

  • Intel® 7th generation (Gen 7) graphics - DirectX 11.0, Pixel Shader 5.0 - Dual graphics output: Support HDMI and D-Sub ports by independent display controllers - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Expansion Slots

  • 1 x PCI Express 2.0 x1 Slot

Storage

  • 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

LAN

  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE

Audio

  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Surge Protection (ASRock Full Spike Protection)

Hardware Monitor

  • CPU, Chassis temperature sensing - CPU, Chassis Fan Tachometer - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU, Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS Support

  • Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Internal I/O Ports

  • - 1 x 3W Audio AMP Output Wafer Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

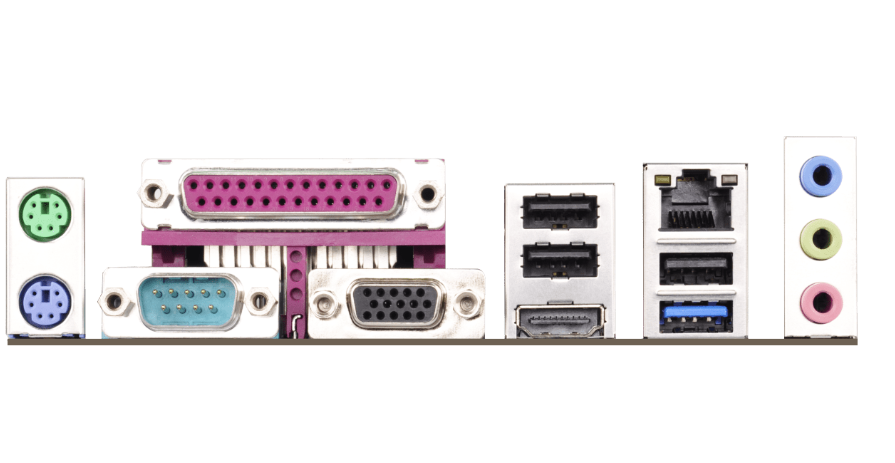

Back I/O Ports

  • 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Parallel Port (ECP/EPP Support) - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x HDMI Port - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

  • Software - ASRock A-Tuning - ASRock USB Key - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS

Hardware Monitor

  • CPU, Chassis temperature sensing - CPU, Chassis Fan Tachometer - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU, Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Unique Feature

  • ASRock Full Spike Protection - ASRock Cloud - ASRock APP Shop

Accessories

  • Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
