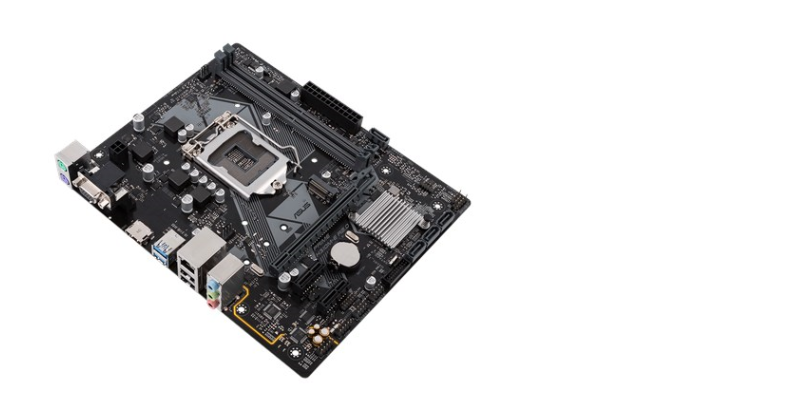

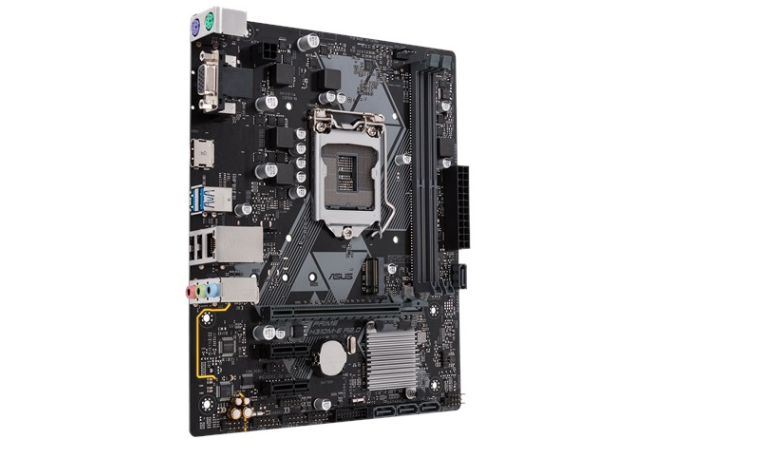

ASUS Prime H310M-E R2.0 mATX 300 Series
Product Type:
Motherboards
Type Detail:
Intel Socket 1151 (3xx Chipset)
Manufacturer:
Asus
Manufacturer #:
90MB0Z20-M0AAY0
Part Status:
Phase-Out
Milwaukee PC SKU:
263910
Price:
$83.99

Prime H310M-E R2.0 LGA1151 (Intel 8th Gen) DDR4 HDMI VGA H310 Micro ATX Motherboard. Ready for 8th generation Intel Core processors, the Prime H310M-E R2.0 delivers customizable system performance. 5X Protection III provides hardware-level safeguards with SafeSlot Core fortified PCIe slots. 8-Channel HD Audio provides warm, immersive crystal-clear sound while M.2 slots drive next-gen transfer speeds.

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1151
Brand: ASUS
Chipset Manufacture: Intel
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 2 Slots
Max Memory: 32GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 1 Slots
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 2.0 Ports: 2 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports


ASUS Prime H310M-E R2.0 mATX 300 Series

ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.


Form Factor

  • mATX Form Factor, 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )

CPU

  • Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0

Chipset

  • Intel® H310

Memory

  • 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Graphic

  • Integrated Graphics Processor- Intel® HD Graphics support, Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz, Maximum shared memory of 1024 MB (for iGPU exclusively), Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

  • 1 x PCIe 3.0/2.0 x16 (x16 mode, gray), 2 x PCIe 2.0 x1

Storage

  • 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode), 4 x SATA 6Gb/s port(s), gray,

LAN

  • Realtek® RTL8111H, 1 x Gigabit LAN

Audio

  • Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

  • Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board), Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode), 1 x TPM header, 1 x COM port(s) connector(s), 4 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x Chassis Fan connector(s) (1 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x Speaker connector

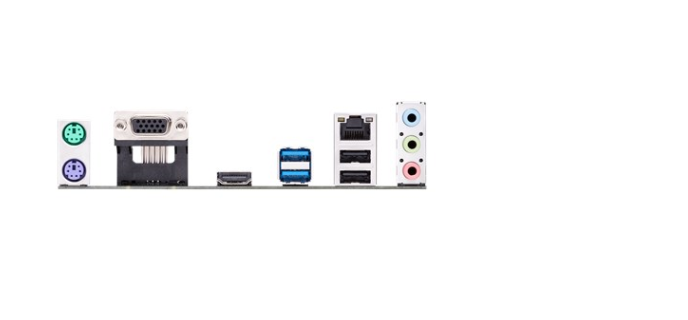

Back I/O Ports

  • 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps, 2 x USB 2.0, 3 x Audio jack(s)

Special Features

  • ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 4 Phase digital power design, ASUS OptiMem: - Optimem (Improved DDR4 stability), ASUS EP : - EPU, ASUS Exclusive Features: - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer, ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert, ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, ASUS Q-Design: - ASUS Q-DIMM, M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)

Accessories

  • User's manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Anchor, 1 x Supporting DVD
