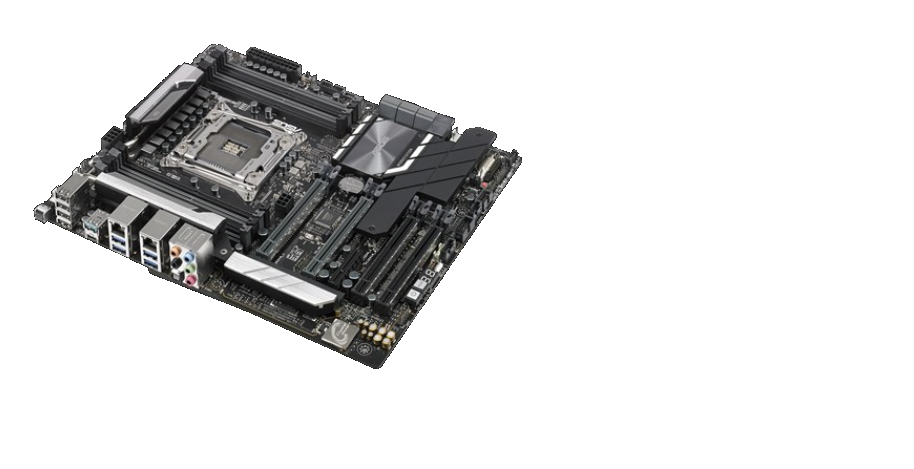

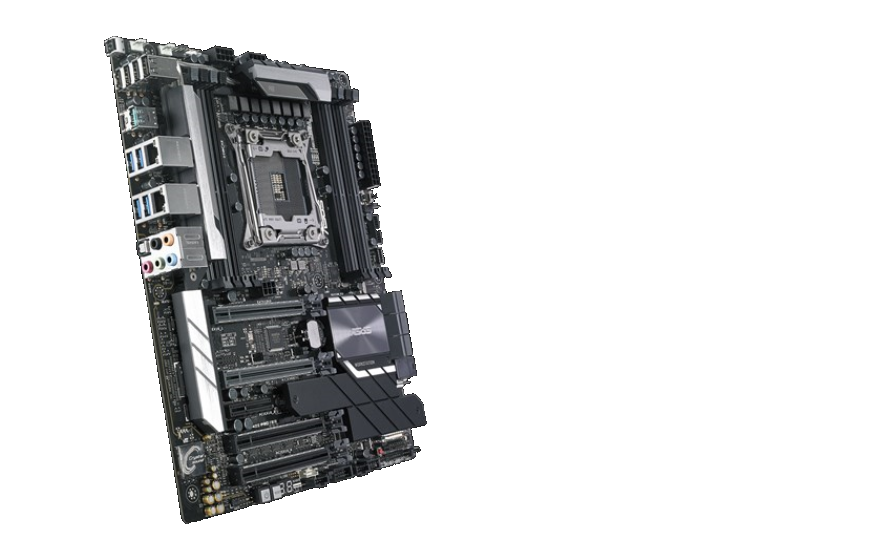

Asus WS C422 PRO/SE, Socket 2066, ATX Workstation Motherboard
WS C422 PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.
Form Factor
-
ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
CPU
- Intel® Socket 2066 Processors,
Supports Intel® 14 nm CPU,
Supports Intel® Turbo Boost Max Technology 2.0
Chipset
Memory
-
8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory *1
Quad Channel Memory Architecture
Multi-Graphic
-
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
- 48-Lane CPU -
2 x PCIe 3.0 x16 (x16 mode),
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8),
1 x PCIe 3.0 x4 (x4 mode)
Storage
-
1 x M.2 x4 Socket 3*2, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),
1 x M.2 x4 Socket 3*3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode),
1 x U.2 connector*2,
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10,
Intel® Rapid Storage Technology Enterprise supports,
Intel® Virtual RAID (VROC) support for CPU RAID
LAN
- Intel® I210-AT, 2 x Gigabit LAN Controller(s)
Audio
-
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB Ports
-
Intel® C422 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
Intel® C422 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)
Internal I/O Ports
-
1 x Aura Addressable Strip Header(s),
1 x AAFP connector,
1 x Aura RGB Strip Headers,
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s),
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),
1 x TPM header,
6 x SATA 6Gb/s connector(s),
1 x VROC_HW_Key,
2 x CPU Fan connector(s),
1 x AIO_PUMP connector,
1 x Thunderbolt header(s),
1 x 24-pin EATX Power connector(s),
2 x 8-pin ATX 12V Power connector(s),
1 x 5-pin EXT_FAN(Extension Fan) connector,
1 x MemOK! button(s),
1 x Thermal sensor connector(s),
1 x Power-on button(s),
1 x Reset button(s),
1 x Clear CMOS button(s),
1 x U.2 connector,
3 x System panel connector,
1 x Front fan,
1 x Rear fan,
1 x COM port header,
1 x Aspeed VGA header,
1 x USB 3.1 Gen 2 front panel connector,
1 x CPU_OV jumper,
1 x PUMP Fan connector,
1x 6-pin ATX 12V Power connector

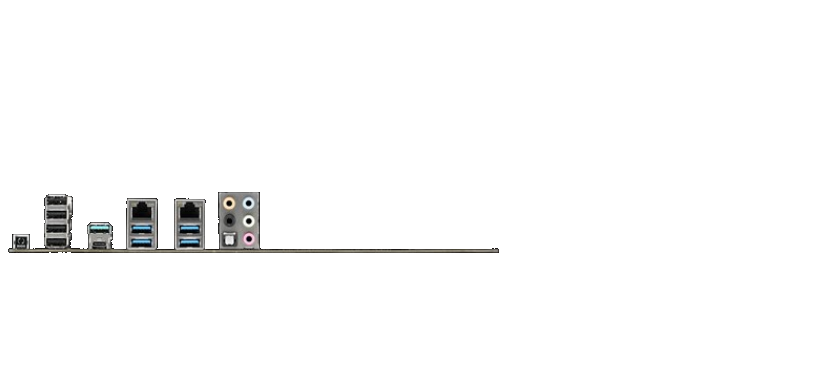

Back I/O Ports
-
2 x LAN (RJ45) port(s),
2 x USB 3.1 Gen 2 Type-A + USB Type-CTM,
4 x USB 3.1 Gen 1 (blue),
4 x USB 2.0 (one port can be switched to USB BIOS Flashback),
1 x Optical S/PDIF out,
1 x USB BIOS Flashback Button(s),
1 x 8-channel Audio I/O
Special Features
-
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
AURA :
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- MemOK!
- Ai Charger+
- Onboard Button : Power/Reset
- Turbo LAN
DIGI + Power Control :
- CPU Power: Digital 8-phase power design
DIGI + Power Control :
- DRAM Power: Digital 2-phase power design
ASUS Quiet Thermal Solution :
- Stylish Fanless Design with M.2 Heat-sink solution
ASUS EZ DIY :
- ASUS USB BIOS Flashback
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Asus Control Center (ACC) IT management software supported
Intel® Virtual RAID on CPU (VROC) ready
Thunderbolt 3 support
Note
-
* 1 Memory capacity supported depends on both CPU installed and Memory,
* 2 Bandwidth is shared between M.2_2 and U.2.,
* 3 SATA Bandwidth is shared between M.2_1 and SATA6G_1,
*4 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows® 10
