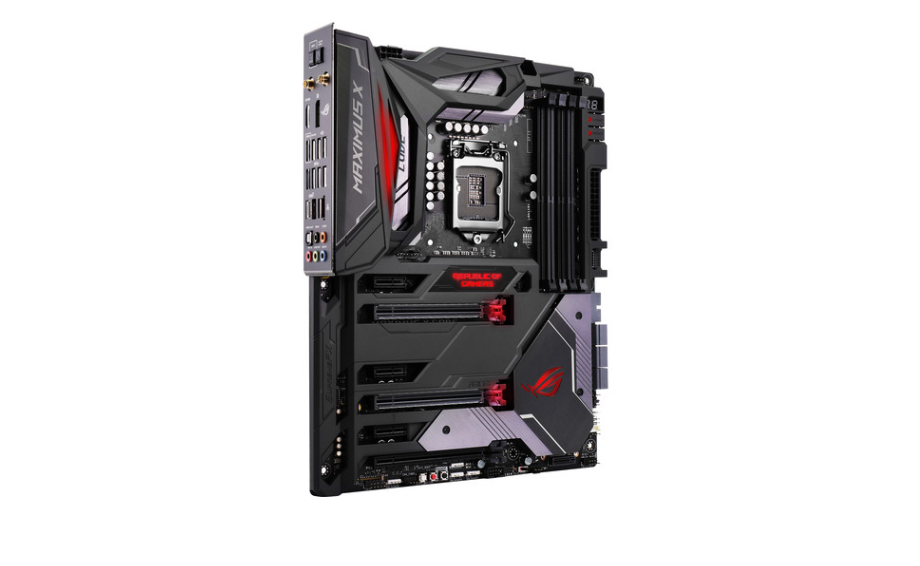

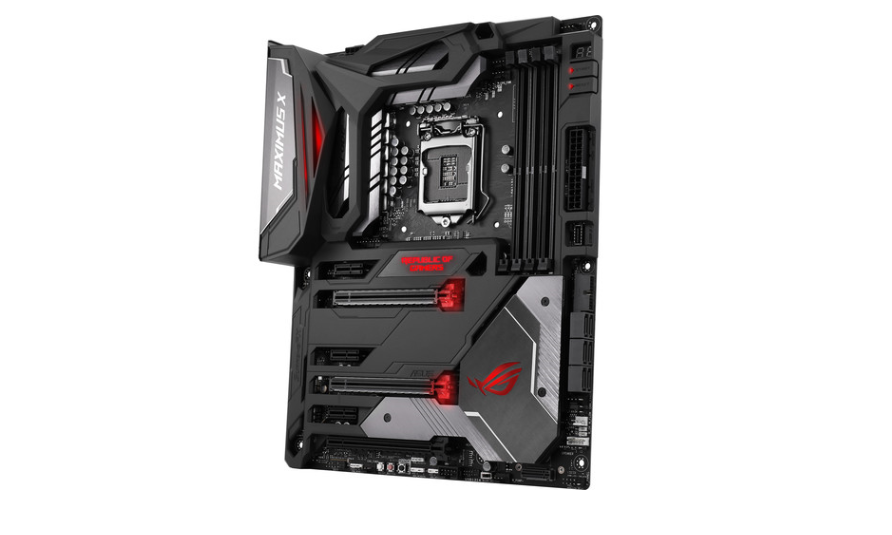

ASUS ROG Maximus X Code - Wi-Fi, ATX, 8th Gen, 300 Series
Product Type:
Motherboards
Type Detail:
Intel Socket 1151 (1xx/2xx Chipset)
Manufacturer:
Asus
Manufacturer #:
ROG MAXIMUS X CODE
Part Status:
Discontinued
Milwaukee PC SKU:
263887
Price:
$341.99

The ROG Maximus X Code delivers cutting-edge performance in true gamer style, fusing the distinctive design of ROG Armor with the customization of AURA Sync RBG lighting. Unlock full calibration and system performance with 5-Way Optimization, dual M.2, onboard 802.11AC WiFi, front panel USB 3.1, and integrated 8-channel HD Audio.

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1151
Brand: ASUS
Chipset Manufacture: Intel
Form Factor: ATX
SLI Support: YES
Crossfire Support: YES
Number of Memory Slots: 4 Slots
Max Memory: 64GB
Memory Type: DDR4
PCI Express x16 Slots: 3 Slots
PCI Express x1 Slots: 3 Slots
PCI Slots: None
WiFi Onboard: WiFI AC
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 2 Slots
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 2.0 Ports: 4 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
DVI Ports: NONE
HDMI Ports: 1 Ports


ASUS ROG Maximus X Code - Wi-Fi, ATX, 8th Gen, 300 Series


Form Factor

  • ATX Form Factor, 12 inch x 9.6 inch

CPU

  • Intel® Socket 1151 for 8th Generation Core™ Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0

Chipset

  • Intel® Z370

Memory

  • 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.) /3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Graphics

  • Integrated Graphics Processor, Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Maximum shared memory of 1024 MB

Multi-Graphics

  • Supports NVIDIA® 2-Way SLI™ Technology, Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

  • 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4), 1 x PCIe 3.0/2.0 x16 (x4 mode, black), 3 x PCIe 3.0/2.0 x1

Storage

  • Intel® Z370 Chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Supports Intel® Smart Response Technology, Intel® Rapid Storage Technology supports, Intel® Optane™ Memory Ready

LAN

  • Intel® I219V, Anti-surge LANGuard, ROG GameFirst IV

Wireless Data Network

  • Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO

Bluetooth

  • Bluetooth V4.2

Audio

  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback, Audio Feature: - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III

USB Ports

  • ASMedia® USB 3.1 Gen 2 controller: 1 x USB 3.1 Gen 2 front panel connector port(s), ASMedia® USB 3.1 Gen 2 controller: 2 x USB 3.1 Gen 2 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM), Intel® Z370 Chipset: 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board), Intel® Z370 Chipset: 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • 2 x Aura Addressable Strip Header(s), 2 x Aura RGB Strip Headers, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 3 x Chassis Fan connector(s) (3 x 4 -pin), 1 x H_AMP fan connector, 1 x W_PUMP+ connector (1 x 4 -pin), 1 x AIO_PUMP connector (1 x 4 -pin), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Q-Connector), 1 x MemOK! button(s), 1 x Slow Mode switch(es), 1 x Reset button(s), 1 x LN2 Mode jumper(s), 1 x Safe Boot button, 1 x ReTry button, 1 x EXT_Fan header, 1 x W_IN header, 1 x W_OUT header, 1 x W_FLOW header, 1 x Thermal sensor connector, 1 x Start button, 1 x USB 3.1 Gen 2 front panel connector

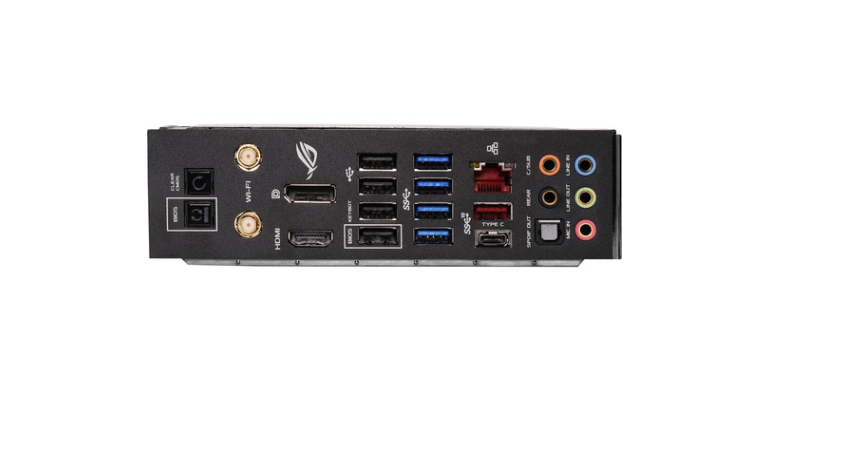

Back I/O Ports

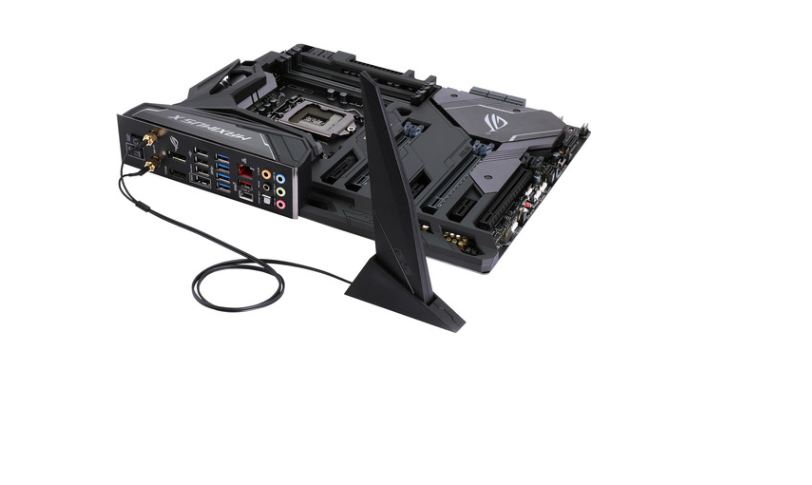

  • 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 2 (red)Type-A, 1 x USB 3.1 Gen 2 (black)USB Type-CTM, 4 x USB 3.1 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x Clear CMOS button(s), 1 x USB BIOS Flashback Button(s), 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module

Rog Exclusive Features

  • Clear CMOS button, ROG Armor, ROG RAMCache II, ROG CPU-Z, ROG CloneDrive, Pre-mounted I/O Shield, MemOK! Button, Slow Mode, Overwolf, ReTry Button, Safe Boot Button, Start Button, Reset Button, LN2 Mode, GameFirst IV, Extreme Engine Digi+: - MicroFine Alloy Chokes - NexFET™ Power Block MOSFET - 10K Black Metallic Capacitors, KeyBot II - X.M.P. - ClrCMOS - Power On, UEFI BIOS features: - O.C. Profile - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview, ROG RAMDisk, Extreme Tweaker, USB BIOS Flashback

Special Features

  • ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App, Gamer's Guardian: - SafeSlot, LiveDash OLED 1.3", AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s), ASUS Exclusive Features: - MemOK! - AI Suite 3, ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS Flashback, ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall)

Accessories

  • User's manual, 1 x ROG logo plate sticker, 4 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x CPU installation tool, 1 x Supporting DVD, 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant), 1 x SLI HB BRIDGE(2-WAY-M), 1 x ROG big sticker, 1 x Q-Connector, 1 x M.2 bracket, 1 x Extension Cable for RGB strips (80 cm), 1 x Extension cable for Addressable LED, 1 x ROG coaster(s), 1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable
