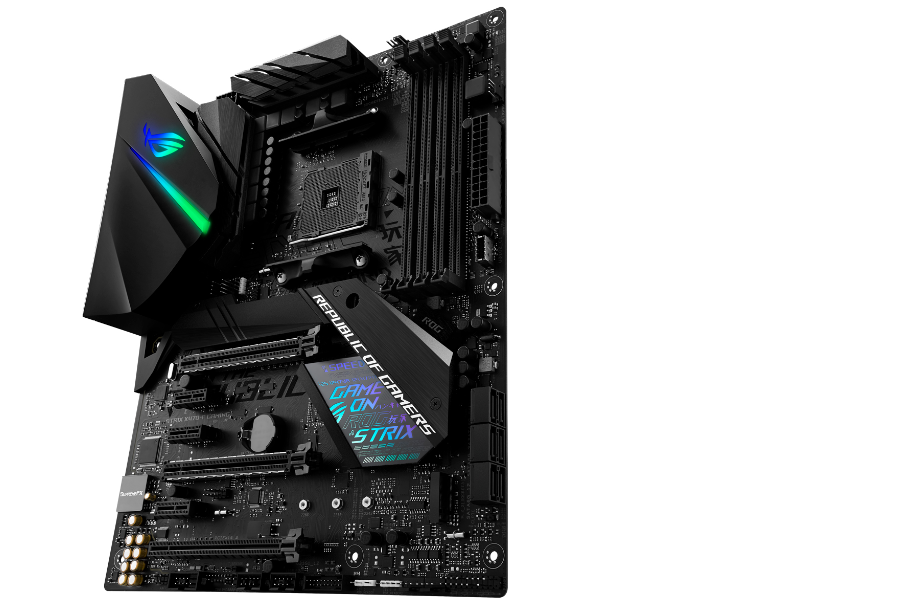

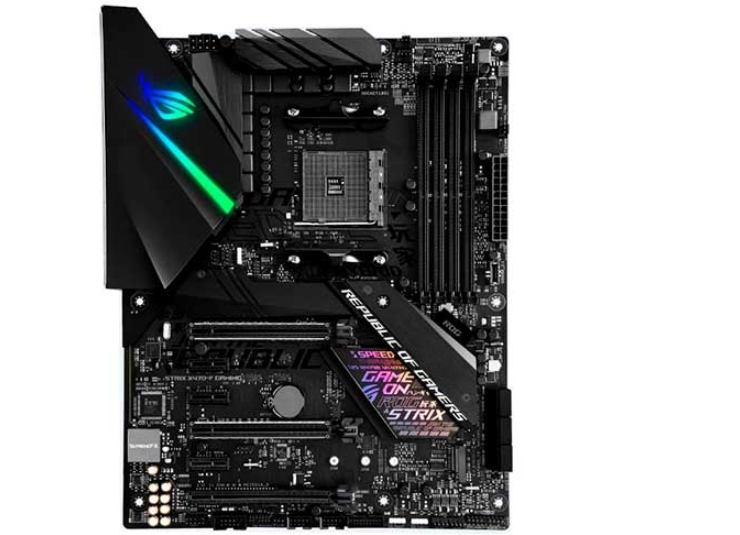

Asus ROG Strix X470- F Gaming, AMD Ryzen, ATX

Experience next-level performance and personalization options with the ROG Strix X470-F Gaming, powered by AMD® Ryzen™ 2 AM4 processors. Unlock full calibration and customization with 5-Way Optimization featuring Fan Xpert 4, Aura Sync RGB lighting and 3D printing mounts. Onboard dual NVMe M.2 and front-panel USB 3.1 Gen2 delivers maximum connectivity speeds.

Form Factor

• ATX Form Factor: 12.0 inch x 9.6 inch

CPU

• AM4 socket for AMD Ryzen 2nd Generation/Ryzen 1st Generation/Ryzen with Radeon Vega Graphics/ 7th Generation A-Series/Athlon X4 Processors

Chipset

• AMD X470

Memory

• Max Memory 64 GB, DDR4, Dual Channel, 4 slots

Graphic

• Integrated Graphics in the Ryzen with Radeon Vega Graphics/AMD 7th Generation A-Series Processors, Multi-VGA output support: HDMI and DisplayPort ports - Supports HDMI 1.4b with maximum resolution of 4096 x 2160 @24Hz /2560 x 1600 @60Hz - Supports DisplayPort 1.2 with maximum resolution of 4096 x 2160 @60Hz - Maximum shared memory of 2048MB

Multi-Graphic

• Supports NVIDIA 2-Way SLI Technology, Supports AMD 3-way CrossFireX Technology

Expansion Slots

• AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors, 2 x PCI Express 3.0 x16 slots (single at x16 or dual at x8/x8 mode), AMD Ryzen with Radeon Vega Graphics/7th Generation A-Series/Athlon X4 Processors, 1 x PCI Express 3.0 x16 slot (x8 mode), 1 x PCI Express 2.0 x16 slot (max. at x4 mode)*, *PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3, 3 x PCI Express 2.0 x1 slots

Storage

• 6 x SATA 6Gb/s, AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors, - M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support, AMD 7th Generation A-Series/Athlon X4 Processors, - M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110 (SATA mode) storage devices support, AMD X470 Chipset: - M.2_2 socket 3 with M Key, Type 2242/2260/2280 (PCIE 3.0 x2 and SATA modes) storage devices support, *M.2_2 socket shares PCIe clock with PCIeX1_1, when PCIeX1_1 or PCIeX1_3 are occupied, M.2_2 only can support SATA mode, Raid 0/1/10

LAN

• 1 x Intel i211AT, 10/100/1000Mbps

Audio

• SupremeFX S1220A High Definition Audio CODEC, 8 Channels

USB Ports

• 1 x USB 3.1 Gen2 front panel connector, 1 x USB 3.1 Gen1 headers support additional 2 x USB 3.1 Gen 1 ports, 2 x USB 2.0 header supports additional 4 x USB 2.0 ports

OS Support

• Windows 10 64-bit

Internal I/O Ports

• 1 x TPM header, 1 x 4-Pin CPU fan connector, 1 x 4-Pin CPU_OPT fan connector, 1 x 4-Pin AIO_PUMP connector, 1 x 4-Pin W_PUMP+ connector, 3 x 4-Pin Chassis fan connectors, 1 x Thermal sensor connector, 2 x RGB headers, 1 x Addressable RGB header, 1 x System panel connector, 1 x Front panel audio connector (AAFP), 1 x COM header, 1 X LED connector (Back I/O cover), 1 x Clear CMOS jumper (2-pin)

Back I/O Ports

• 1 x PS/2 keyboard/mouse port, HDMI, RJ-45-1 x Anti-surge LAN port, DisplayPort, 2 x USB 3.1 Gen2 ports (2 x Type-A [red]), 6 x USB 3.1 Gen1 ports (5 x Type-A [blue] and 1 x Type C), Audio - 5 Connectors

ROG Exclusive Features

• ROG RAMCache II, ROG GameFirst IV, ROG Overwolf, ROG CPU-Z

Special Features

• Performance Optimization, 5-Way Optimization - Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages. Digi+VRM, EPU - EPU TPU - Auto Tuning, TurboV, GPU Boost Fan Xpert 4 - featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design - Q-Shield - Q-LED (CPU, DRAM, VGA, Boot Device LED) - Q-Slot - Q-DIMM Gamer's Guardian - SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on LAN, Audio, KBMS and USB ports - Highly Durable Components - Premounted I/O shield ASUS Exclusive Features - AURA Lighting Control - AI Suite 3 - AI Charger

Accessories

• User guide, Support DVD, 1 x SLI HB Bridge (2-way-M), 4 x SATA 6Gb/s Cables, 1 x M.2 Screw Package, 1 x RGB LED extension cable, 1 x Addressable header cable, 1 x ROG STRIX door hanger, 1 x ROG Strix sticker, 1 x ROG thank you card, 1 x cable tie package
