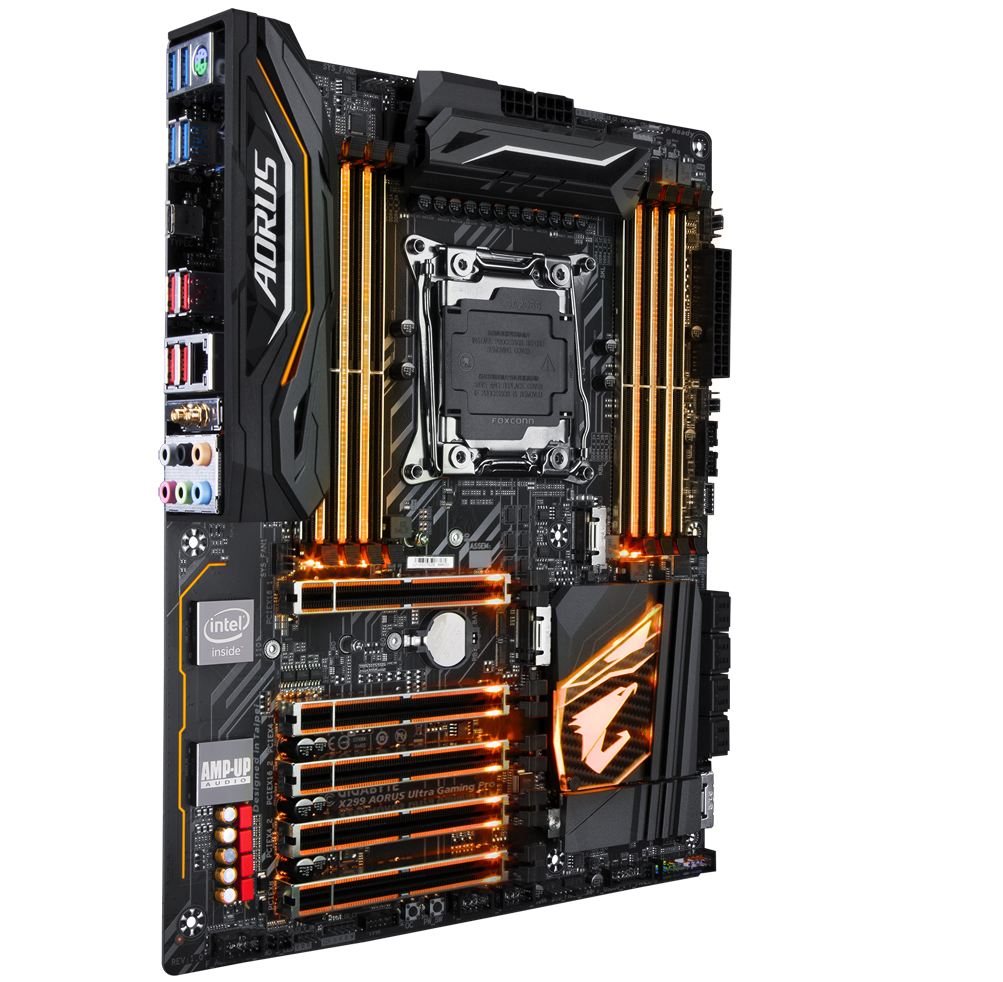

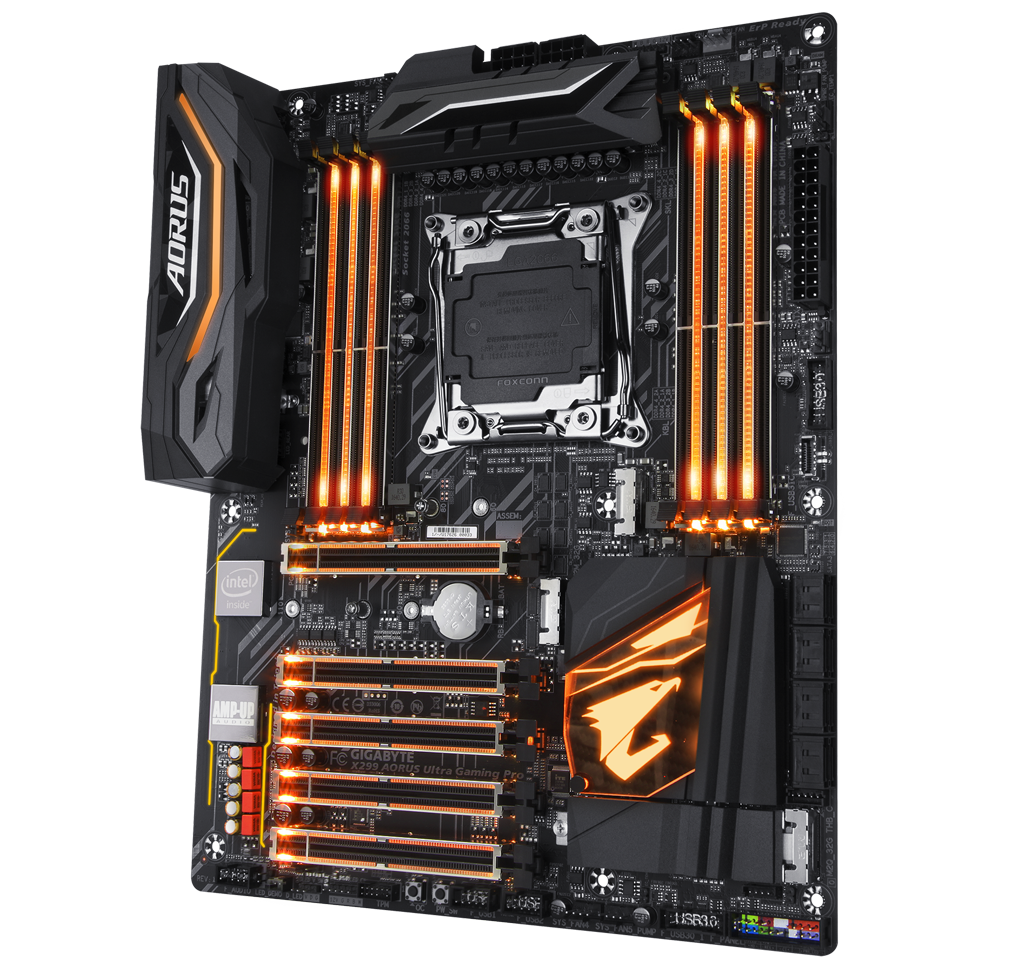

Gigabyte X299 AORUS Ultra Gaming Pro s2066 ATX

The AORUS X299 enthusiast motherboards are faster and more powerful than any motherboard the world has ever seen. With an aggressively redesigned armor and thermal heatsinks its sure to turn heads and catch eyes. Performance is no stranger to AORUS, with exotic cooling and an ability to be tuned to peak performance AORUS motherboards will exceed expectations.

Form Factor

• ATX Form Factor; 30.5cm x 24.4cm

CPU

• Support for Intel® Core™ X series processors in the LGA2066 package

Chipset

• Intel® X299 Express Chipset

Memory

• 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory. * Support for up to 512 GB of system memory when using Registered DIMMs. * Supported when using a 44-lane or 28-lane CPU (6-core or above). 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. * Supported when using a 16-lane CPU (4-core). 4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above). Dual channel memory architecture. Supported when using a 16-lane CPU (4-core). Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode), * R-DIMM is only supported by BIOS version F3 and earlier versions. Support for Extreme Memory Profile (XMP) memory modules

Multi-Graphic

• 1.Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies, Support for AMD Quad-GPU CrossFire™ and 3-Way* /2-Way AMD CrossFire™ technologies

Expansion Slots

• 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

Storage

• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G), 8 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, * The M2M_32G connector must work with an Intel® VROC Upgrade Key to support RAID configuration. * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready, Intel® VROC ready

LAN

• Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

• Killer™ Wireless-AC 1535, Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band, Bluetooth 4.1, Support for 11ac wireless standard and up to 867 Mbps data rate, * Actual data rate may vary depending on environment and equipment.

Audio

• Realtek® ALC1220 codec, Support for Sound BlasterX 720°, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out,

USB Ports

• Chipset+2 ASMedia® USB 3.1 Gen 2 Controllers: 1.1 x USB 3.1 Gen 2 port available through the internal USB header, 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support, Chipset+Realtek® USB 3.1 Gen 2 Hub: 1.4 x USB 3.1 Gen 2 Type-A ports (red) on the back panel, Chipset+Realtek® USB 3.1 Gen 1 Hub: 1.4 x USB 3.1 Gen 1 ports on the back panel, Chipset: 1.4 x USB 3.1 Gen 1 ports available through the internal USB headers, 4 x USB 2.0/1.1 ports available through the internal USB headers

OS Support

• Windows 10 64-bit

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 1 x system fan/water cooling pump header, 1 x 3 Amp fan/water cooling pump header, 1 x digital LED strip header, 1 x digital LED strip power select jumper, 2 x RGB (RGBW) LED strip extension cable headers, 3 x M.2 Socket 3 connectors, 8 x SATA 6Gb/s connectors, 1 x Intel® VROC Upgrade Key header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.1 Gen 2 header, 2 x USB 3.1 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x Thunderbolt™ add-in card connector, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x power button, 1 x OC button, 2 x temperature sensor headers, 1 x Clear CMOS jumper

Back I/O Ports

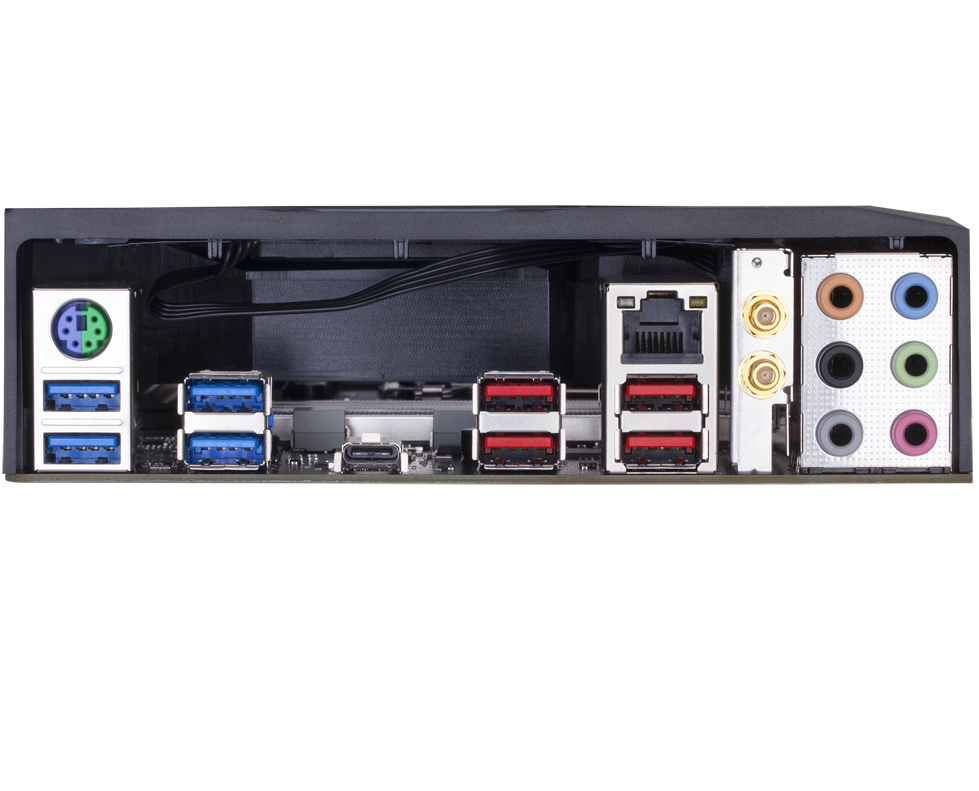

• 1 x PS/2 keyboard/mouse port, 1 x USB Type-C™ port, with USB 3.1 Gen 2 support, 4 x USB 3.1 Gen 2 Type-A ports (red), 4 x USB 3.1 Gen 1 ports, 1 x RJ-45 port, 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Special Features

• 1.Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD, @BIOS, AutoGreen, BIOS Setup, Color Temperature, Cloud Station, EasyTune, Easy RAID, Fast Boot, Game Boost, ON/OFF Charge, Platform Power Management, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, System Information Viewer, USB Blocker, V-Tuner, Support for Q-Flash, Support for Xpress Install
