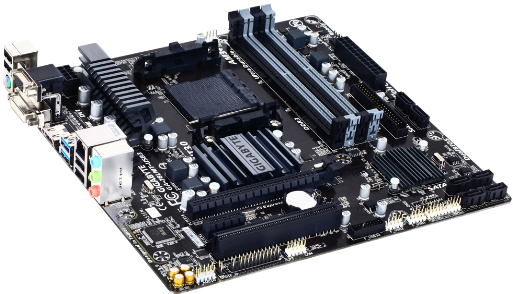

Used Gigabyte GA-78LMT-USB3 REV.6 Motherboard - MATX, AM3+

Product Type:

Motherboards

Type Detail:

AMD Socket AM3

Manufacturer:

Gigabyte

Manufacturer #:

Used_GA-78LMT-USB3 REV.6

Part Status:

Discontinued

Milwaukee PC SKU:

263747

Price:

$110.00

Quick Tech Specs

Processor Manufacture:	AMD
Socket:	AM3
Brand:	Gigabyte
Chipset Manufacture:	AMD
Form Factor:	Micro ATX
SLI Support:	NONE
Crossfire Support:	NONE
Number of Memory Slots:	4 Slots
Max Memory:	32GB
Memory Type:	DDR3
PCI Express x16 Slots:	1 Slots
PCI Express x1 Slots:	1 Slots
PCI Slots:	1 Slots
WiFi Onboard:	NONE
RAID Support:	RAID 0/1/10
Sata 6 Gbits/s Ports (3.0/3.1):	None
Sata 3 Gbits/s Ports (2.0):	6 Ports
Sata Express 16 Gbits/s Ports (3.2):	None
M.2 Slots:	None
NVMe Support:	No
eSata Ports:	None
Legacy Ports:	NONE
Thunderbolt Ports:	NONE
USB 3.0 Ports:	2 Ports
USB 2.0 Ports:	4 Ports
Network Ports:	Gigabit (10/100/1000)
Display Ports:	NONE
DVI Ports:	1 Port
HDMI Ports:	1 Ports

Used Gigabyte GA-78LMT-USB3 REV.6 Motherboard - MATX, AM3+

Form Factor

1.Micro ATX Form Factor; 24.4cm x 24.4cm

CPU

1.Support for AMD AM3+ processor, Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor

Chipset

1.North Bridge: AMD 760G. South Bridge: AMD SB710

Memory

1.4 x DDR3 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, Support for 1600(O.C.)/1333/1066 MHz memory modules

Graphic

1.1 x D-Sub port, supporting a maximum resolution of 1920x1200, 1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2), 1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3), Support for DirectX 10, Maximum shared memory of 1 GB

Expansion Slots

x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot, (All PCI Express slots conform to PCI Express 2.0 standard.), 3.1 x PCI slot

Storage

1.1 x IDE connector supporting ATA-133/100/66/33, 6 x SATA 3Gb/s connectors, Support for RAID 0, RAID 1, RAID 10, and JBOD

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio

Realtek® ALC892 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out

USB Ports

8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), VIA® VL805 chip: 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

OS Support

Support for Windows 7/XP

Internal I/O Ports

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 6 x SATA 3Gb/s connectors, 1 x IDE connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.0/2.0 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 1 x parallel port header, 1 x Clear CMOS jumper

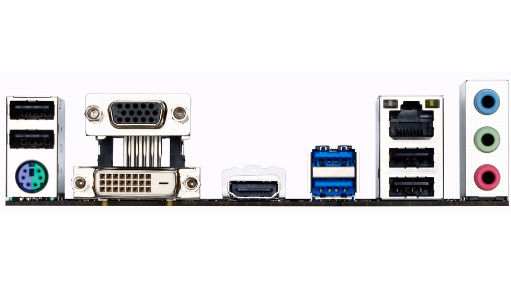

Back I/O Ports

1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 2 x USB 3.0/2.0 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks (Line In/Line Out/Microphone)

Special Features

Support for @BIOS, Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for EasyTune (Note 6), Support for Smart Recovery2, Support for Auto Green, Support for ON/OFF Charge, Support for Q-Share
