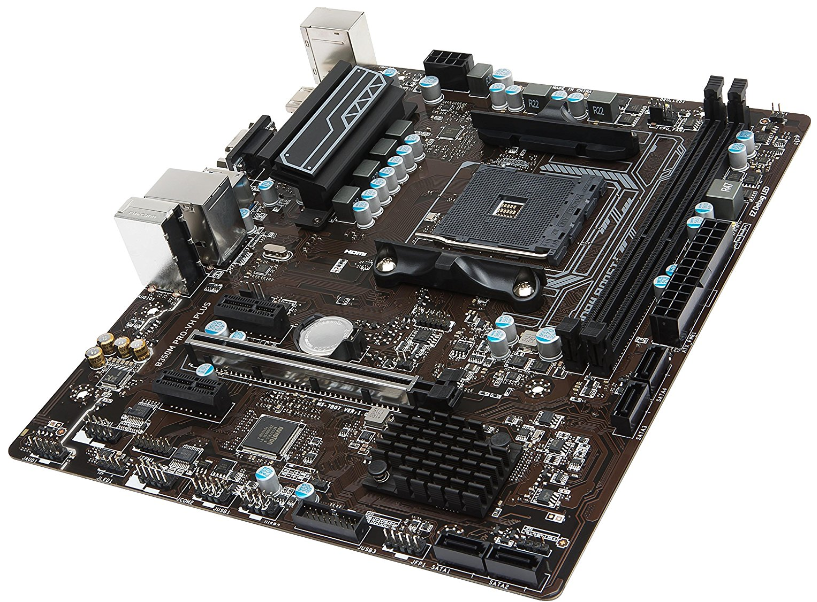

MSI B350M PRO-VH Plus AMD AM4 m-ATX
Product Type:
Motherboards
Type Detail:
AMD Socket AM4
Manufacturer:
MSI
Manufacturer #:
B350MPRO-VHPLUS
Part Status:
Discontinued
Milwaukee PC SKU:
263726
Price:
$89.99

AM4 mATX Motherboard. B350 Chipset. Pro Series. 32GB DDR4 support (2 DIMMs) Dual Channel. USB 3.1 Gen1 (4 Real IO, 2 via header). Realtek ALC887 Codec Audio. Realtek 8111H Gigabit LAN. VGA & HDMI output

Quick Tech Specs

Processor Manufacture: AMD
Brand: MSI
Chipset Manufacture: AMD
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 2 Slots
Max Memory: 32GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: RAID 0/1/10
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: None
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: 4 Ports
USB 2.0 Ports: 2 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: NONE
HDMI Ports: 1 Ports


MSI B350M PRO-VH Plus AMD AM4 m-ATX


Form Factor

  • m-ATX Form Factor, 9.3 in. x 7.4 in. (23.6 cm x 18.7 cm)

CPU

  • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4

Chipset

  • AMD® B350 Chipset

Memory

  • 2 x DDR4 memory slots, support up to 32GB - Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz* - Dual channel memory architecture - Supports ECC UDIMM memory (non-ECC mode) - Support non-ECC UDIMM memory

Graphic

  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz* - 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz * Only support when using a 7th Gen A-series/ Athlon™ processor * Maximum shared memory of 2048 MB

Expansion Slots

  • 1 x PCIe 3.0 x16 slots - RYZEN series processors support x16 mode - 7th Gen A-series/ Athlon™ processors support x8 mode - 2 x PCIe 3.0 x1 slots

Storage

  • AMD® B350 Chipset - 4 x SATA 6Gb/s ports - Supports RAID 0, RAID1 and RAID 10

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Audio

  • Realtek® ALC887 Codec - 7.1-Channel High Definition Audio

USB Ports

  • AMD® B350 Chipset - 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) - 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)

OS Support

  • Windows 10 64-bit

Internal I/O Ports

  • 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 4 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 1 x 4-pin CPU fan connector - 1 x 4-pin system fan connector - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 2 x Serial port connector - 1 x Clear CMOS jumper

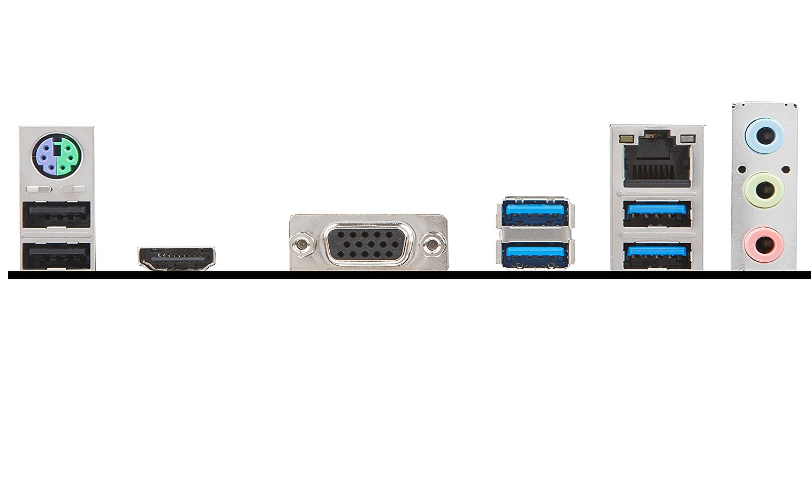

Back I/O Ports

  • 1 x PS/2 keyboard/ mouse combo port - 2 x USB 2.0 Type-A ports - 1 x HDMI™ port - 1 x VGA port - 1 x LAN (RJ45) port - 4 x USB 3.1 Gen1 Type-A ports - 3 x audio jacks
