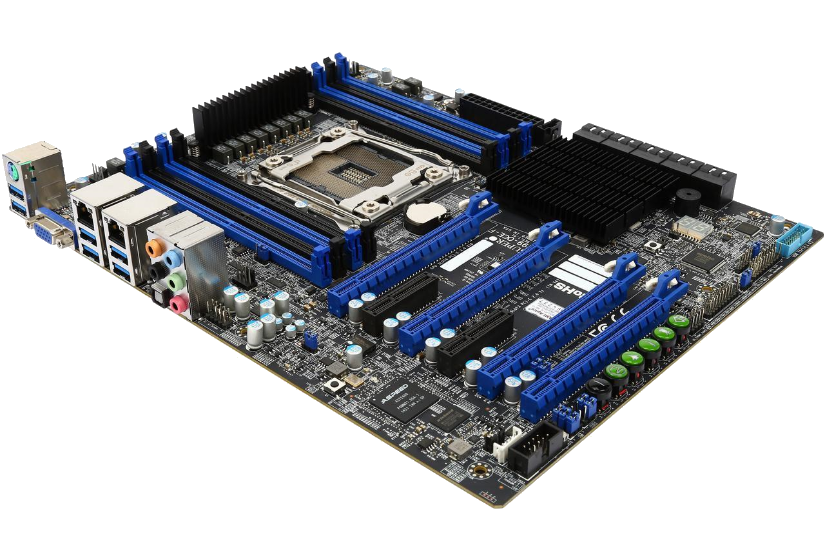

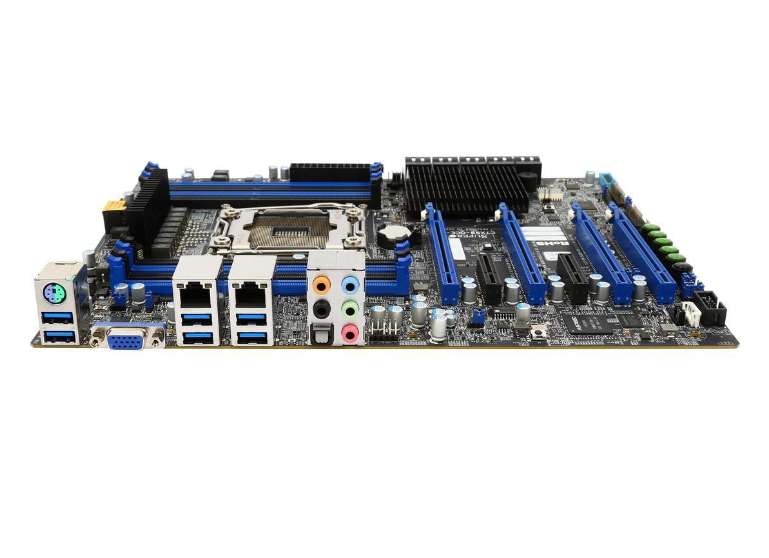

SuperMicro C7X99-OCE, Socket 2011-v3, ATX, VGA

Product Type:

Motherboards

Type Detail:

Intel Socket 2011-3

Manufacturer:

SuperMicro

Manufacturer #:

MBD-C7X99-OCE-F-B

Part Status:

Discontinued

Milwaukee PC SKU:

263720

Price:

$421.99

Quick Tech Specs

Processor Manufacture:	Intel
Socket:	LGA 2011-3
Brand:	SuperMicro
Chipset Manufacture:	Intel
Chipset Model:	X99
Form Factor:	ATX
Crossfire Support:	NONE
SLI Support:	NONE
Memory Type:	DDR4
Max Memory:	128GB
Number of Memory Slots:	8 Slots
PCI Express x1 Slots:	2 Slots
PCI Express x16 Slots:	4 Slots
PCI Slots:	None
WiFi Onboard:	NONE
RAID Support:	RAID 0/1/5/10
Sata 3 Gbits/s Ports (2.0):	None
Sata 6 Gbits/s Ports (3.0/3.1):	6 Ports
eSata Ports:	None
Sata Express 16 Gbits/s Ports (3.2):	None
M.2 Slots:	None
NVMe Support:	No
VGA Ports:	1 Port
USB 3.x Ports (3.0 or higher):	6 Ports
Thunderbolt Ports:	NONE
Legacy Ports:	1 Serial Port
DVI Ports:	NONE
Display Ports:	NONE
Network Ports:	Dual Gigabit (10/100/1000)
USB 2.0 Ports:	None
USB 3.0 Ports:	6 Ports
HDMI Ports:	None

SuperMicro C7X99-OCE

Form Factor

ATX, 9.6" x 12" (24.38cm x 30.48cm)

CPU

Intel® Core™ i7 Processor (Socket R3), Intel® Core™ i7 Processor Extreme Edition (Socket R3), Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. Socket R3 (LGA 2011) supported, CPU TDP support Up to 150W TDP

Chipset

Intel® X99

Memory

Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3300MHz (OC), in 8 DIMM slots ***Memory overclocking is not warranty, it is up to the capability of CPU and memory***, Frequency up to 3300MHz(OC) non-ECC DDR4 SDRAM 72-bit, 284-pin (UDIMM) gold-plated DIMMs

Graphics

ASPEED AST2400 BMC (for IPMI only)

Expansion Slots

4 x PCI-E 3.0 x16, 2 x PCI-E 2.0 x1 (in x4 slot

Storage

Intel® X99 controller for 6 SATA 3 (6 Gbps) ports; RAID 0,1,5,10 (I-SATA port#0~5), Intel® X99 controller for 4 SATA3 (6 Gbps) ports; (s-SATA Port#0~3 don't support Raid)

LAN

Dual LAN with Intel® Ethernet Controller I210-AT

Audio

ALC 1150 HD Audio, 7.1 Channels

USB Ports

8 USB 3.0 ports (6 rear + 2 headers)

Internal I/O Ports

6 SATA 3 (6 Gbps), USB 3.0 x2 Headers, Serial Port header, TPM Header, 5 x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors, Chassis intrusion header, Monitors CPU voltages, VBAT

Back I/O Ports

PS/2 Combo Port, 6 x USB 3.0, VGA Dual LAN with Intel® Ethernet Controller I210-AT, Serial Port, 5 x HD AUDIO Connectors

Special Features

ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL, SuperDoctor® III, Watchdog

Accessories

1 - C7X99-OCE Motherboard, 1 - C7X99-OCE I/O Shield, 6 x 57.5CM SATA FLAT S-S PBF, C7X99-OCE Quick Reference Guide, C7 Driver CD Version: 1.1B or Above
