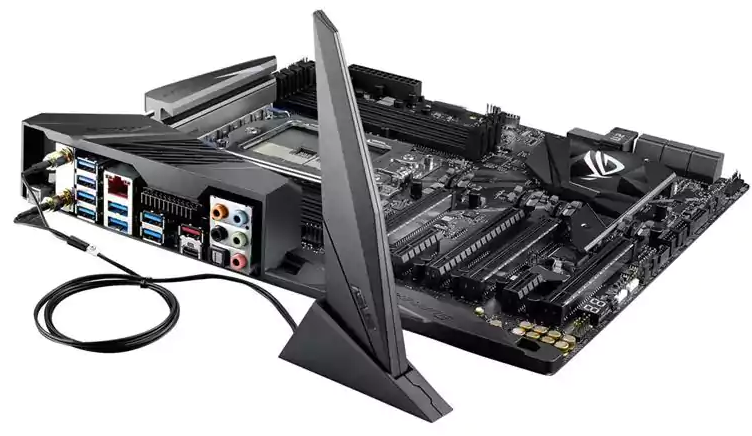

Asus ROG STRIX X399 E Gaming AM4 eATX

Form Factor

• Extended ATX Form Factor, 12 inch x 10.6 inch

CPU

• AMD® Ryzen™ Threadripper™ TR4 processors

Chipset

• AMD X399

Memory

• 8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

Multi-Graphic

• Supports NVIDIA® Quad-GPU SLI™ Technology, Supports NVIDIA® 3-Way SLI™ Technology, Supports NVIDIA® 2-Way SLI™ Technology, Supports AMD Quad-GPU CrossFireX™ Technology, Supports AMD 3-Way CrossFireX™ Technology, Supports AMD 2-Way CrossFireX Technology

Expansion Slots

• AMD Ryzen™ Threadripper™ Processors, 4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode), AMD X399 chipset, 1 x PCIe 2.0 x4 (max at x4 mode), 1 x PCIe 2.0 x1

Storage

• AMD Ryzen™ Threadripper™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x U.2 port, AMD X399 chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

LAN

• Intel® I211-AT, Anti-surge LANGuard, ROG GameFirst IV

Wireless Data Network

• Wi-Fi 802.11 a/b/g/n/ac

Bluetooth

• Bluetooth V4.2

Audio

• ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) and 113 dB SNR recording input (Line-in), Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality - Sonic Radar III - Sonic Studio III

USB Ports

• AMD Ryzen™ Threadripper™ Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A), AMD X399 chipset : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board), AMD X399 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board), AMD X399 chipset : 4 x USB 2.0 port(s) (4 at mid-board), ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 1 x Q_Code, 1 x Aura Addressable Strip Header(s), 1 x U.2 port, 2 x RGB Header(s), 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s connector(s), 1 x M.2_FAN connector, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x W_PUMP+ connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x 5-pin EXT_FAN(Extension Fan) connector, 1 x Thermal sensor connector(s), 1 x Power-on button(s), 1 x Clear CMOS jumper(s), 1 x USB 3.1 Gen 2 front panel connector

Back I/O Ports

• 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-CTM, 8 x USB 3.1 Gen 1 (blue), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS Flashback Button(s), 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module

Special Features

• OC Design - ASUS PRO Clock Technology, - Full BCLK range for extreme overclocking performance ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App, AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s), ASUS Exclusive Features : - USB BIOS Flashback - AI Suite 3 - Ai Charger, - Onboard Button : Power ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - ASUS Fan Xpert 4, ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS, ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting, M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

Accessories

• User's manual, ASUS Q-Shield, 1 x Vertical M.2 bracket set, 4 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x pack of cable tie, 1 x Supporting DVD, 1 x SLI HB BRIDGE(2-WAY-M), 1 x Q-Connector, 1 x 10-in-1 ROG cable label, 1 x Thermal sensor cable pack(s), ROG Fan Label, 1 x ROG Door Hanger(s), 1 x Extension cable for Addressable LED
