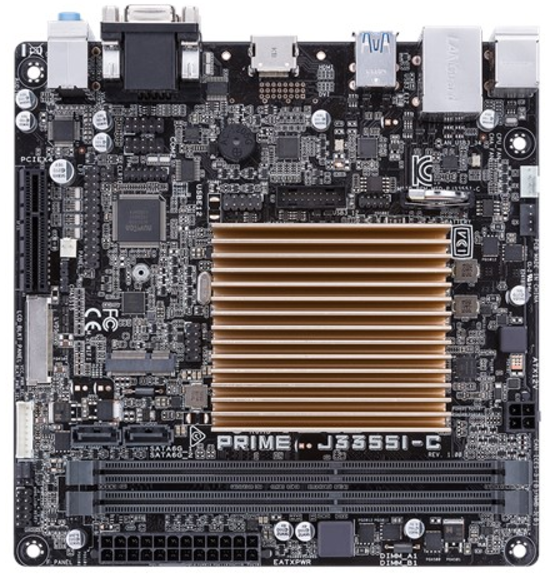

Asus Prime J3355I- C Intel Celeron

Product Type:

Motherboards

Type Detail:

Integrated CPU

Manufacturer:

Asus

Manufacturer #:

PRIME J3355I-C

Part Status:

Discontinued

Milwaukee PC SKU:

263647

Price:

$81.99

ASUS PRIME J3355I-C Intel Celeron Dual-Core SoC fanless microATX Motherboard with 5X Protection HDMI VGA SATA 6G. The ASUS mainstream motherboard PRIME J3355I-C combines excellent quality and quietness by 5X Protection II, ASUS LANGuard, and Fan Xpert.

Quick Tech Specs

Processor Manufacture:	Intel
Brand:	ASUS
SLI Support:	NONE
Crossfire Support:	NONE
Number of Memory Slots:	2 Slots
Max Memory:	16GB
Memory Type:	DDR3
PCI Express x16 Slots:	None
PCI Express x1 Slots:	1 Slots
PCI Slots:	None
WiFi Onboard:	NONE
RAID Support:	NONE
Sata 6 Gbits/s Ports (3.0/3.1):	2 Ports
Sata 3 Gbits/s Ports (2.0):	None
Sata Express 16 Gbits/s Ports (3.2):	None
M.2 Slots:	None
NVMe Support:	No
eSata Ports:	None
Legacy Ports:	NONE
Thunderbolt Ports:	NONE
USB 3.0 Ports:	None
USB 2.0 Ports:	None
Network Ports:	Gigabit (10/100/1000)
Display Ports:	NONE
DVI Ports:	NONE
HDMI Ports:	1 Ports

Asus Prime J3355I- C Intel Celeron

Form Factor

Mini ITX Form Factor, 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

CPU

Build in Intel® Celeron® Dual-Core J3355 SoC onboard Processors, Speed-2.00 GHz, Turbo Boost 2.50 GHz

Memory

2 x U-DIMM, Max. 16GB, DDR3 1866*/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture

Graphic

Integrated Graphics Processor, Multi-VGA output support : HDMI/RGB/LVDS ports - Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz, Maximum shared memory of 512 MB, Supports up to 2 displays simultaneously

Expansion Slots

1 x PCIe 2.0 x4 (x1 mode)

Storage

2 x SATA 6Gb/s port(s)

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller

Audio

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking

USB Ports

Built-in Controller : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, ), ASMedia® ASM1042 controller : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board), Built-in Controller : 2 x USB 2.0 port(s) (2 at mid-board), ASMedia® ASM1042 controller : 2 x USB 2.0 port(s) (2 at mid-board)

OS Support

Windows® 10 , 64bit

Internal I/O Ports

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x TPM header, 1 x COM port(s) connector(s), 2 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x Chassis Fan connector(s) (1 x 4 -pin), 1 x 24-pin EATX Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x parallel port connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x Chassis Intrusion connector(s), 1 x Clear CMOS jumper(s), 1 x Panel off header, 1 x LVDS connector(s), 1 x Buzzer, 1 x System panel connector, 1 x Display panel backlight power selector, 1 x Flat panel display brightness connector, 1 x Display panel VCC power selector, 1 x LCD panel monitor switch header

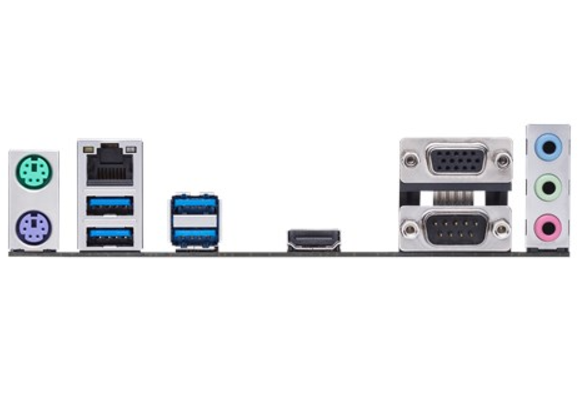

Back I/O Ports

1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue), 1 x COM port(s), 3 x Audio jack(s)

Special Features

ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection, ASUS EPU : - EPU, ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner, ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert, ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode, ASUS Q-Design : - ASUS Q-DIMM
