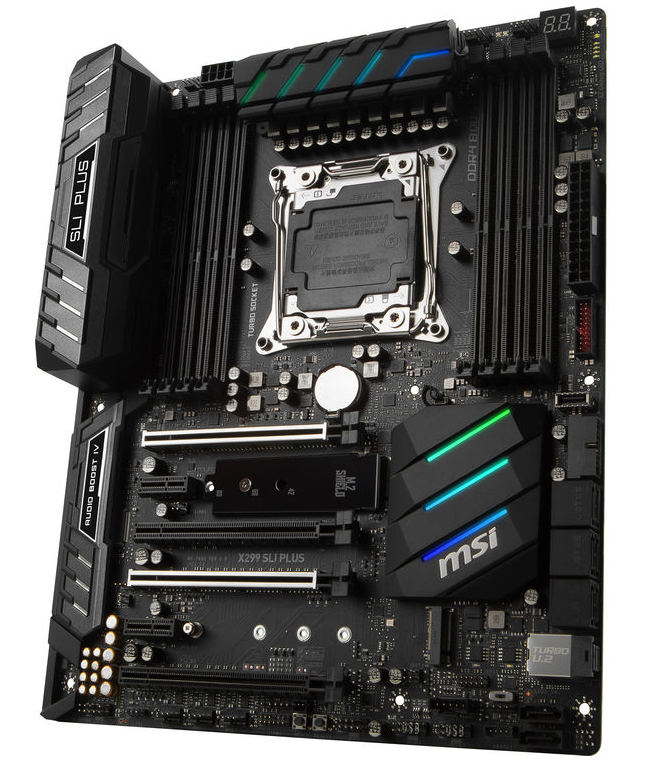

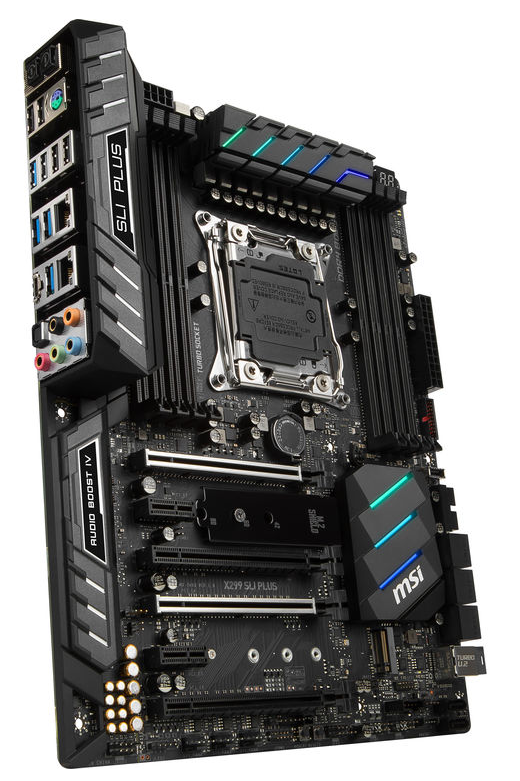

MSI X299 SLI Plus, Intel X-Series, ATX
Product Type:
Motherboards
Type Detail:
Intel Socket 2011-3
Manufacturer:
MSI
Manufacturer #:
X299 SLI PLUS
Part Status:
Discontinued
Milwaukee PC SKU:
263620
Price:
$324.99

Intel LGA 2066 ATX Motherboard. X299 Chipset. SLI series. Black design. 128GB DDR4 support (8DIMMs) Quad Channel. 4-way CrossFire & 3-way SLI support. 2 M.2.& 1 U.2. 1(Gen2, Type C), 1(Gen2, Type A). Realtek ALC1220 Audio. Intel I219-V & Intel I211 Dual LAN. Support Skylake-X & Kabylake-X Processors.

Quick Tech Specs

Processor Manufacture: Intel
Brand: MSI
Chipset Manufacture: Intel
Form Factor: ATX
SLI Support: YES
Crossfire Support: YES
Number of Memory Slots: 8 Slots
Max Memory: 128GB
Memory Type: DDR4
PCI Express x16 Slots: 4 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 8 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 2 Slots
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: None
USB 2.0 Ports: 4 Ports
Network Ports: Dual Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: NONE
HDMI Ports: None


MSI X299 SLI Plus, Intel X-Series, ATX


Form Factor

  • ATX Form Factor, 12 in. x 9.6 in.

CPU

  • Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket

Chipset

  • Intel® X299 Chipset

Memory

  • 8 x DDR4 memory slots, support up to 128GB - Quad channel memory architecture with the CPU that supports up to 4-channels DDR4, - X-series processor support DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/ 3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz - Dual channel memory architecture with the CPU that supports up to 2-channels DDR4** - X-series processor support DDR4 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC) /3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz - Supports Intel® Extreme Memory Profile (XMP)

Multi-Graphic

  • Supports NVIDIA® SLI™ Technology - Supports AMD® CrossFire™ Technology

Expansion Slots

  • 4 x PCIe 3.0 x16 slots - Support x16/x16/x8 mode with the 44-lane CPU. - Support x16/x8/x4 modes with the 28-lane CPU. - Support x8/x8/x0, x8/x4/x4 modes with the 16-lane CPU. - 2 x PCIe 3.0 x1 slots

Storage

  • Intel® X299 Chipset - 8 x SATA 6Gb/s ports - 2 x M.2 slot (Key M) - Supports up to PCIe 3.0 x4 and SATA 6Gb/s - M2_1 slot supports 2242/ 2260 /2280 storage devices - M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices - Supports Intel® Optane™ Memory Ready for all M.2 slots - 1 x U.2 port *** - Supports PCIe 3.0 x4 NVMe storage - Supports Intel® Smart Response Technology for Intel Core™ processors - Intel® X299 Chipset - Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID1 for M.2 PCIe storage devices

LAN

  • 1 x Intel® I219-V Gigabit LAN controller - 1 x Intel® I211 Gigabit LAN controller

Audio

  • Realtek® ALC1220 Codec - 7.1-Channel High Definition Audio - Supports S/PDIF output

USB Ports

  • ASMedia® ASM3142 Chipset - 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector) - ASMedia® ASM1074 Chipset - 3 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel - Intel® X299 Chipset - 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (1 Type-A port on the back panel, 4 ports available through the internal USB connectors) - 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

OS Support

  • Windows 10 64-bit

Internal I/O Ports

  • 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 8 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) - 1 x USB 3.1 Gen2 Type-C port - 1 x 4-pin CPU fan connector - 1 x 4-pin Water Pump connector - 4 x 4-pin system fan connectors - 2 x Front panel connectors - 1 x Front panel audio connector - 1 x RGB LED connector - 1 x TPM module connector - 1 x Virtual RAID on CPU connector - 1 x Thunderbolt add-on card connector

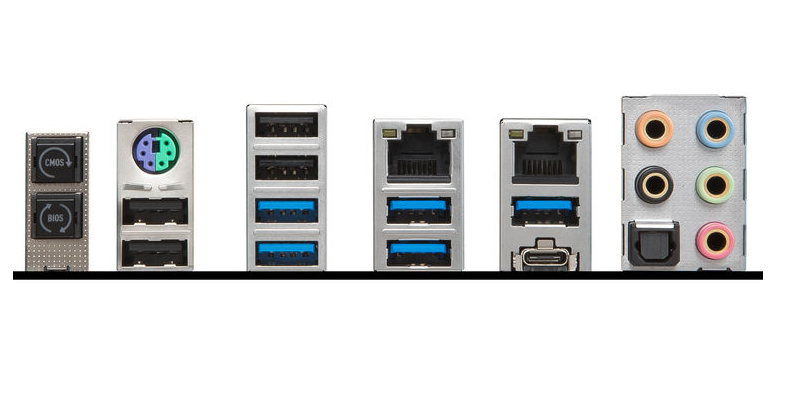

Back I/O Ports

  • 1 x Clear CMOS button - 1 x BIOS FLSAHBACK+ button - 1 x PS/2 keyboard/ mouse combo port - 1 x BIOS FLASHBACK+ port - 4 x USB 2.0 Type-A ports - 1 x BIOS FLASHBACK+ port - 4 x USB 3.1 Gen1 Type-A ports - 2 x LAN (RJ45) ports - 1 x USB 3.1 Gen2 Type-A port - 1 x USB 3.1 Gen2 Type-C port - 5 x OFC audio jacks - 1 x Optical S/PDIF OUT connector
