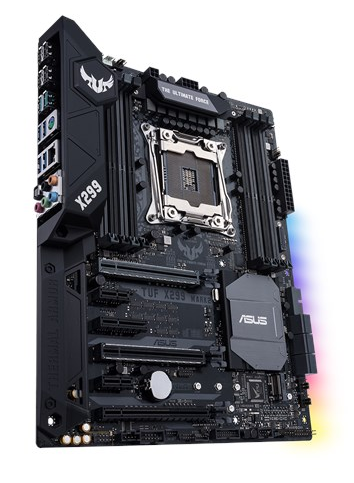

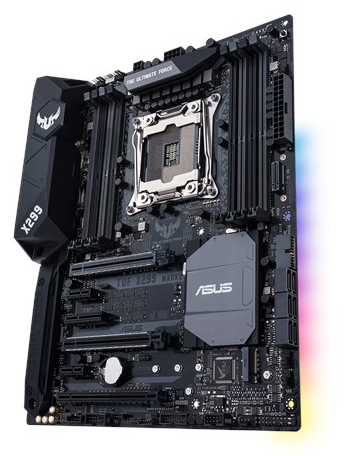

Asus TUF X299 Mark 2, ATX, X-Series

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch

CPU

• Intel® Socket 2066 Core™ X-Series Processors

Chipset

• Intel® X299

Memory

• Intel® Core™ X-series Processors (6-core above), 8 x DIMM, Max. 128GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Intel® Core™ X-series Processors (4-core), 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Multi-Graphic

• Supports NVIDIA® Quad-GPU SLI™ Technology, Supports NVIDIA® 3-Way SLI™ Technology, Supports NVIDIA® 2-Way SLI™ Technology, Supports AMD Quad-GPU CrossFireX™ Technology, Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

• 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8), 2 x PCIe 3.0 x4 (max at x4 mode), 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4), 2 x PCIe 3.0 x4 (max at x4 mode), 16-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1), 2 x PCIe 3.0 x4 (max at x4 mode)

Storage

• Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Supports Intel® Smart Response Technology, Intel Rapid Start Technology, Intel® Optane™ Memory Ready

LAN

• Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN, ASUS Turbo LAN Utility

Audio

• Realtek® ALC S1220A 8-Channel High Definition Audio CODEC, - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs, Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports

• ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A), Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board), Intel® X299 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 1 x AAFP connector, 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x COM port(s) connector(s), 6 x SATA 6Gb/s connector(s), 1 x M.2_FAN connector (), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x W_PUMP+ connector, 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x System panel(s) (Q-Connector), 1 x MemOK! button(s), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x CPU_OV jumper

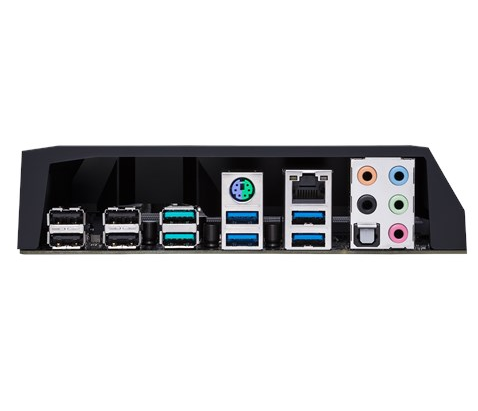

Back I/O Ports

• 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1, 4 x USB 2.0 (one port can be switched to USB BIOS Flashback), 1 x Optical S/PDIF out, 5 x Audio jack(s)

Special Features

• OC Design - ASUS PRO Clock Technology, TUF Features: TUF ENGINE! Power Design : - 7 +1 Digital Phase Power Design - TUF Components (Choke, Cap. & MOSFET; certified by military-standard), Ultimate COOL! Thermal Solution : - TUF Thermal Armor Thermal Radar 3, Safe & Stable! Guardian Angel : - TUF ESD Guards 2 - TUF LANGuard, AURA : - Aura Lighting Control - Aura Lighting Effects Synchronization with compatible ASUS ROG devices, ASUS Exclusive Features : - MemOK! - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN, ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS, ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Accessories

• User's manual, ASUS Q-Shield, 1 x Vertical M.2 bracket set, 4 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x SLI HB BRIDGE(2-WAY-M), 1 x Q-Connector, 1 x TUF Certification card(s), 1 x TUF 5 Year Warranty manual(s) (by region), 1 x TUF Inside sticker(s)(white)
