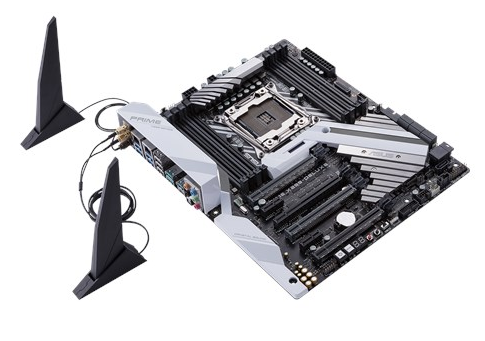

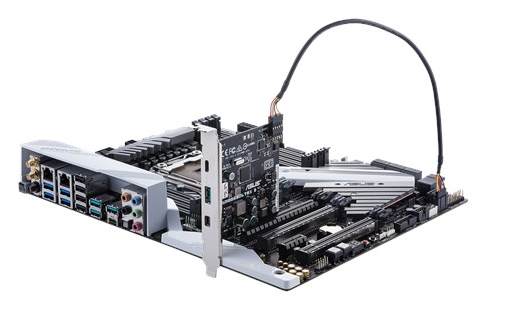

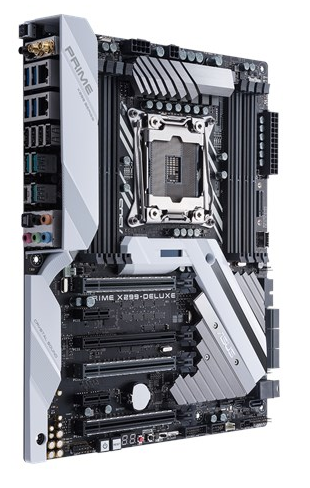

Asus Prime X299 Deluxe ATX, X-Series

Form Factor

• ATX, 12 inch x 9.6 inch

CPU

• Build in Intel® Socket 2066 Core™ X-Series Processors

Chipset

• Build in Intel® X299

Memory

• Intel® Core™ X-series Processors (6-core above), 8 x DIMM, Max. 128GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Intel® Core™ X-series Processors (4-core), 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Multi-Graphic

• Supports NVIDIA® Quad-GPU SLI™ Technology, Supports NVIDIA® 3-Way SLI™ Technology, Supports NVIDIA® 2-Way SLI™ Technology, Supports AMD Quad-GPU CrossFireX™ Technology, Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

• 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8), 2 x PCIe 3.0/2.0 x16 (max at x4 mode), 16-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), 2 x PCIe 3.0/2.0 x16 (max at x2 mode), 2 x PCIe 3.0/2.0 x1 (x1 mode)

Storage

• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 7 x SATA 6Gb/s port(s), 1 x U.2 port, Support Raid 0, 1, 5, 10, Supports Intel® Smart Response Technology, Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID, Intel® Optane™ Memory Ready

LAN

• Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN, Intel® I211-AT, 1 x Gigabit LAN, featuring Turbo LAN, Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance, ASUS Turbo LAN Utility, ASUS LAN Guard

Wi-Fi

• Wi-Fi Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad, Supports MU-MIMO, Supports dual band frequency 2.4/5 GHz+ 60GHz, Up to 4600Mbps transfer speed

Bluetooth

• Bluetooth V4.1

Audio

• Realtek® ALC S1220A 8-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality, Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports

• ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board), ASMedia® USB 3.1 Gen 2 controller : 4 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM), Intel® X299 Chipset : 5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board), Intel® X299 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board), ASMedia® USB 3.1 Gen 1 Hub : 3 x USB port(s) (3 at back panel, )

OS Support

• Windows 10 64-bit

Internal I/O Ports

• 1 x Aura Addressable Strip Header(s), 1 x AAFP connector, 1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 7 x SATA 6Gb/s connector(s), 1 x M.2_FAN connector (), 1 x VROC_HW_Key (), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x W_PUMP+ connector, 1 x AIO_PUMP connector, 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x EZ XMP switch, 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt), 1 x 5-pin EXT_FAN(Extension Fan) connector, 1 x MemOK! button(s), 1 x Thermal sensor connector(s), 1 x Power-on button(s), 1 x Reset button(s), 1 x Clear CMOS button(s), 1 x U.2 connector, 1 x USB 3.1 Gen 2 front panel connector, 1 x CPU_OV jumper

Back I/O Ports

• 2 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 ()Type-A, 1 x USB 3.1 Gen 2 ()USB Type-CTM, 4 x USB 3.1 Gen 1, 4 x USB 2.0 (one port can be switched to USB BIOS Flashback), 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS Flashback Button(s), 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1)

Special Features

• OC Design - ASUS PRO Clock Technology: 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 10 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection, AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s), ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger - Onboard Button : Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN File Transfer - Cloud GO! - File Transfer, ASUS Quiet Thermal Solution : - Stylish Fanless Design with M.2 Heat-sink solution ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS, ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

Accessories

• User's manual, ASUS Q-Shield, 1 x Vertical M.2 bracket set, 6 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x ASUS WiGig 802.11ad moving antenna, *7 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant), 1 x Fan Extension Card (3 x 4-pin fan out), 1 x Fan Extension card screw pack, 1 x ThunderboltEX 3, 1 x mini DisplayPort Cable, 1 x ThunderboltEX 3 GPIO cable, 1 x 3-Way SLI bridge(s), 1 x SLI HB BRIDGE(2-WAY-M), 1 x Q-Connector, 3 x Thermistor cable(s)
