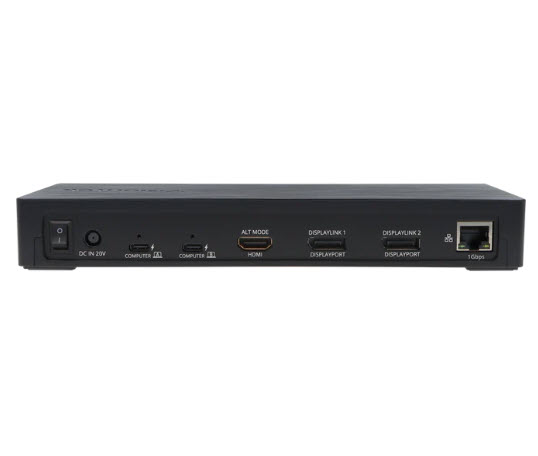

VT4950 - KVM USB-C Docking Station

The VisionTek VT4950 USB-C KVM Docking Station allows you to easily connect two Windows, Mac or Chromebook laptops to up to three 4K displays, accessories and peripherals through a single USB-C connection on each system while delivering up to 100W power delivery to each system. Quickly switch the Keyboard, mouse and monitors using the quick switch button on the front of the dock or with a hotkey for seamless control of 2 systems simultaneously. Seamlessly transfer files across host systems with included software, whether you're moving data from a Chromebook, MacBook or PC.

Highlights

• Dock Connection: USB-C 3.2 Gen 2
• Display Technology: DisplayLink / DP Alt Mode
• Power Adapter: 230 W - DC 20V/11.5A
• Power Delivery: Up to 100 W per system
• Displays Supported: 3
• Maximum Resolution Supported: 1 x 4K @ 60Hz (4096 x 2160) DisplayPort or HDMI*, 2 x 4K @ 60Hz (4096 x 2160) DisplayPort + DisplayPort or DisplayPort + HDMI*, 3 x 4K @ 60Hz (4096 x 2160) DisplayPort + DisplayPort + HDMI*, *Host System must support USB-C DP Alt Mode for video output from HDMI, Host System must support USB-C DP Alt Mode and DisplayPort 1.4 for HDMI 4K @ 60Hz
• Video Interfaces: (2) DP 1.4, (1) HDMI 2.0
• Ports: (2) USB-A 3.2 Gen 2, (1) USB-C 3.2 Gen 2, (1) USB-A 2.0 Keyboard, (1) USB-A 2.0 Mouse, (1) 3.5mm Audio, (1) 3.5mm Microphone, (1) RJ45 Gigabit Ethernet
• Cable Length: (2) 1m - USB-C 3.2 Gen 2
• System Support Requirement: USB-C Port, Note: Not all USB-C Ports will support the full functionality of the USB-C standard required by this docking station. Ensure that the Host Computer’s USB-C Port supports DP Alt Mode, as well as USB Power Delivery. In order to output to 4K @ 60Hz over HDMI, the Host Computer must support DP 1.4. For best compatibility Host Computer with USB-C 3.2 Gen 2 ports recommended.
• Dock to System Connection: USB-C
• Operating Systems: Windows 11, Windows 10, Windows 8.1, Windows 7, macOS 10.10 and later, Chrome OS
• Warranty: 3 Years Limited
