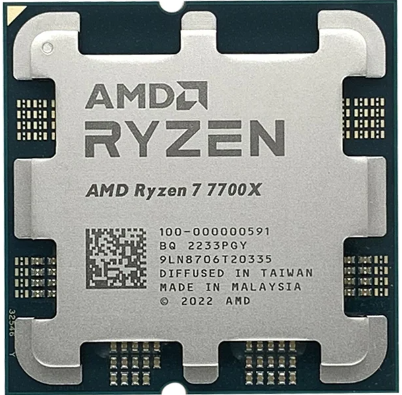

AMD Ryzen 7 7700X - AM5, PCIe5.0, 4.5 GHz/5.4 GHz, EXPO, 8c/16t, Radeon Gfx, Unlocked, No heatsink incl. Tray
Product Type:
CPU
Type Detail:
AMD Socket AM5
Manufacturer:
AMD
Manufacturer #:
100-000000591
Part Status:
Special Order Only
Milwaukee PC SKU:
161141
Price:
$556.99

Quick Tech Specs

Manufacture: AMD
Socket: AM5 / Unlocked
Family: Ryzen 7 / 7700X
Max Clock Speed: Max Clock Speed / 5.40 GHz
Clock Speed: 4.50 GHz
Core Name: Raphael
Cores: Octa-Core (8 Cores)
Graphics Controller: AMD Radeon
Heatsink and Fan: Not Included
Hyper-Threading: Yes
L2 Cache: 8MB
Cache: CPU Cache / 512 KB
L3 Cache: 32MB
Thermal Power: 105 W
Threads: 16


AMD Ryzen™ 7 7700X

General Specifications

  • Family: Ryzen
  • Series: Ryzen 7000 Series
  • Supported Technologies: AMD EXPO™ Technology , AMD Ryzen™ Technologies
  • Architecture: Zen 4
  • # of CPU Cores: 8
  • Multithreading (SMT): Yes
  • # of Threads: 16
  • Base Clock: 4.5 GHz
  • Max. Boost Clock: Up to 5.4 GHz
  • L1 Cache: 512 KB
  • L2 Cache: 8 MB
  • L3 Cache: 32MB
  • Default TDP: 105W
  • Processor Technology for CPU Cores: TSMC 5nm FinFET
  • Processor Technology for I/O Die: TSMC 6nm FinFET
  • CPU Compute Die (CCD) Size: 71mm²
  • I/O Die (IOD) Size: 122mm²
  • Package Die Count: 2
  • Unlocked for Overclocking: Yes
  • AMD EXPO™ Memory Overclocking Technology: Yes
  • Precision Boost Overdrive: Yes
  • Curve Optimizer Voltage Offsets: Yes
  • AMD Ryzen™ Master Support: Yes
  • CPU Socket: AM5
  • Supporting Chipsets: A620 , X670E , X670 , B650E , B650
  • CPU Boost Technology: Precision Boost 2
  • Instruction Set: x86-64
  • Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
  • Thermal Solution (PIB): Not Included
  • Recommended Cooler: Premium air cooler recommended for optimal performance
  • Max. Operating Temperature (Tjmax): 95°C
  • OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

  • Native USB 3.2 Gen 2 (10Gbps) Ports: 4
  • Native USB 3.2 Gen 1 (5Gbps) Ports: 0
  • Native USB 2.0 (480Mbps) Ports: 1
  • Native SATA Ports: 0
  • PCI Express® Version: PCIe® 5.0
  • Native PCIe® Lanes (Total/Usable): 28 , 24
  • Additional Usable PCIe Lanes from Motherboard: X670E - 12x Gen4, X670 - 12x Gen4, B650E - 8x Gen4, B650 - 8x Gen4
  • NVMe Support: Boot , RAID0 , RAID1 , RAID10
  • System Memory Type: DDR5
  • Memory Channels: 2
  • Max. Memory: 128 GB
  • System Memory Subtype: UDIMM
  • Max Memory Speed: 2x1R - DDR5-5200, 2x2R - DDR5-5200, 4x1R - DDR5-3600, 4x2R - DDR5-3600
  • ECC Support: Yes (Requires mobo support)

Graphics Capabilities

  • Graphics Model: AMD Radeon™ Graphics
  • Graphics Core Count: 2
  • Graphics Frequency: 2200 MHz
  • USB Type-C® DisplayPort™ Alternate Mode: Yes
