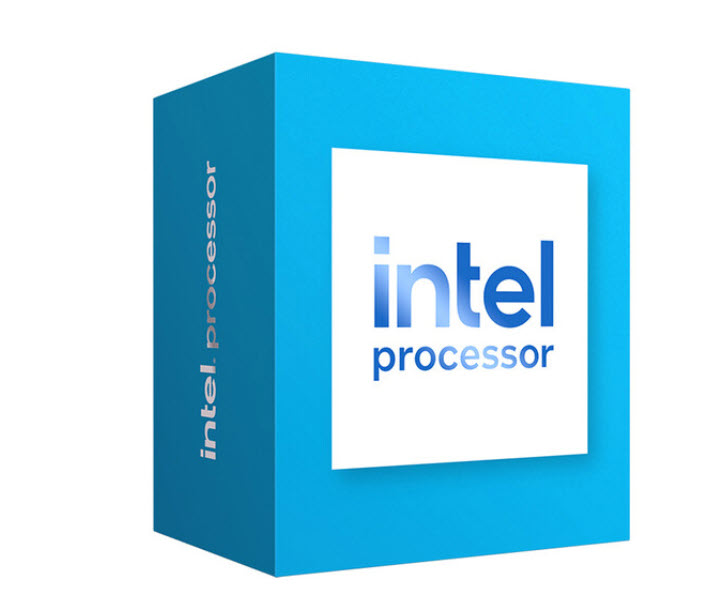

Intel Processor 300 - Socket 1700, 3.90GHz, 2Pc/0Ec/4t, 6MB Smart Cache, Intel UHD Graphics 710
Product Type:
CPU
Type Detail:
Intel Socket 1700 (12/13/14 Gen)
Manufacturer:
Intel
Manufacturer #:
BX80715300
Part Status:
Phase-Out
Milwaukee PC SKU:
161097
Price:
$109.99

Quick Tech Specs

Manufacture: Intel / 14th Gen
Socket: LGA 1700
Clock Speed: 3.90 GHz
Cores: Dual-Core (2 Cores) / 2Pcores/0Ecores
Graphics Controller: Intel HD Graphics / UHD Graphics 710
Heatsink and Fan: Included
Hyper-Threading: Yes
Cache: CPU Cache / 6 MB Intel® Smart Cache
L2 Cache: 2.5MB
Thermal Power: 46 W
Threads: 4
Virtualization Technology: Yes


Intel® Processor 300

Essentials

  • Product Collection: Intel® Processor for Desktop
  • Lithography: Intel 7
  • Sockets Supported: FCLGA1700
  • Max CPU Configuration: 1
  • Thermal Solution Specification: PCG 2020C
  • Embedded Options Available: No

Performance

  • Total Cores: 2
  • # of Performance-cores: 2
  • # of Efficient-cores: 0
  • Total Threads: 4
  • Performance-core Base Frequency: 3.90 GHz
  • Cache: 6 MB Intel® Smart Cache
  • Total L2 Cache: 2.5 MB
  • Processor Base Power: 46 W

Memory Specifications

  • Max Memory Size (dependent on memory type): 192 GB
  • Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
  • Max # of Memory Channels: 2
  • Max Memory Bandwidth: 76.8 GB/s

Graphics Specifications

  • GPU Name: Intel® UHD Graphics 710
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: 1.45 GHz
  • Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
  • Execution Units: 16
  • Max Resolution (HDMI): 4096 x 2160 @ 60Hz
  • Max Resolution (DP): 7680 x 4320 @ 60Hz
  • Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
  • DirectX Support: 12
  • OpenGL Support: 4.5
  • OpenCL Support: 3.0
  • Multi-Format Codec Engines: 1
  • Intel® Quick Sync Video: Yes
  • Intel® Clear Video HD Technology: Yes
  • # of Displays Supported: 4
  • Device ID: 0x4693

Expansion Options

  • Direct Media Interface (DMI) Revision: 4.0
  • Max # of DMI Lanes: 8
    • Scalability: 1S Only
  • PCI Express Revision: 5.0 and 4.0
    • PCI Express Configurations: Up to 1x16+4, 2x8+4
  • Max # of PCI Express Lanes: 20

Advanced Technologies

  • Intel® Gaussian & Neural Accelerator: 3.0
  • Intel® Thread Director: Yes
  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Hyper-Threading Technology/: Yes
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes
  • Intel® Volume Management Device (VMD): Yes

Security & Reliability

  • Intel® Standard Manageability (ISM): Yes
  • Intel® Control-Flow Enforcement Technology: Yes
  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® OS Guard: Yes
  • Execute Disable Bit: Yes
  • Intel® Boot Guard: Yes
  • Mode-based Execute Control (MBEC): Yes
  • Intel® Virtualization Technology (VT-x): Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel® VT-x with Extended Page Tables (EPT): Yes
