Cooler Master Riser Cable PCIe 4.0 x16 300mm Black
Product Type:
Cables/Adapters
Type Detail:
Video Cables
Manufacturer:
Cooler Master
Manufacturer #:
MCA-U002R-KPCI40-300
Part Status:
Special Order Only
Milwaukee PC SKU:
161070
Price:
$59.99

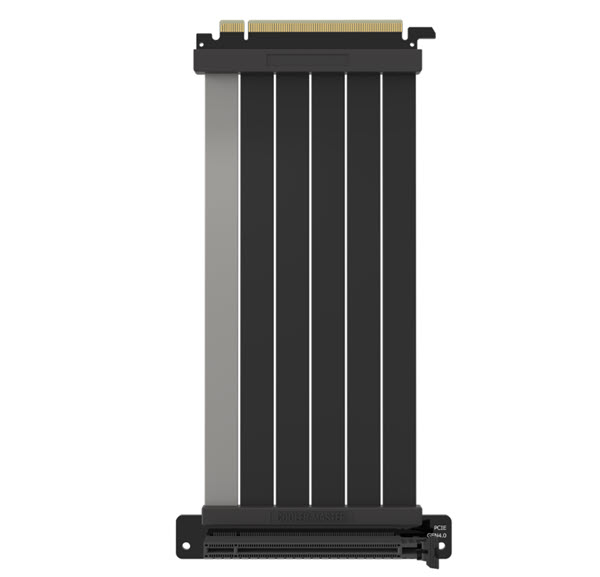

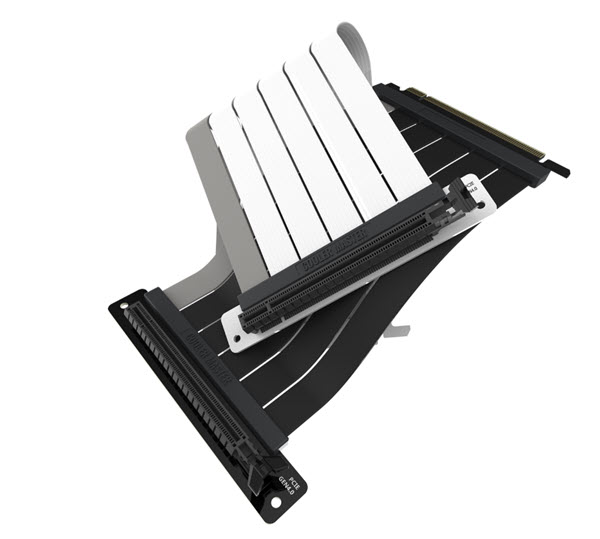

Riser Cable PCIe 4.0 x16 300mm Black

The Cooler Master Riser Cable PCIe 4.0 x16 V2 is designed for greater data transmission efficiency, maximum flexibility and durability. High quality plastics grant increased cable flexibility and strength for the tightest PCI card installations, while the heavy-duty shielding prevents electromagnetic interference from degrading signal quality.

The multi-layer coated PCB provides the best-in-class cable flex, moisture resistance and performance under high thermal loads.

While Providing twice the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backwards compatible with a maximum transfer rate of over 64Gb/s (bi-directional) and fully supports the 16GT/s bit rate of PCIe 4.0 devices.

The multi-layer coated PCB provides best-in-class performance under high thermal loads, cable flex, and moisture resistance.

EMI shielded 30 AWG silver-plated wires ensure minimal signal delay and electromagnetic interference-free operation.

Gold-plated PCI pins allow maximum durability with a rated 400g of retention force per contact pair.

The UV resistant ABS casing design has been revised and reduced in size to allow for an easier cable installation procedure.

The revised TPE cable sleeves allow for maximum flexibility and durability for the tightest cable routing jobs.

Highlights

  • Compatibility: PCIe 4.0 and older
  • Insulation Materials: PE, TPE
  • Component Materials: PCBA, Silver Plated Copper Wire 30 AWG
  • Other Materials: ABS, Nickel, Gold, PP, Brass, Silver
  • Connectors: PCIe x16 Male to PCIe x16 90° Female
  • Cable Length: 300mm
  • Contact Current Rating: 1.1A per contact pin
  • Max Voltage Rating: 30V
  • Working Voltage / Current: DC 12V / 5A
  • Operating Temperature: -20° to +100° Celsius
  • Warranty: 1 year
