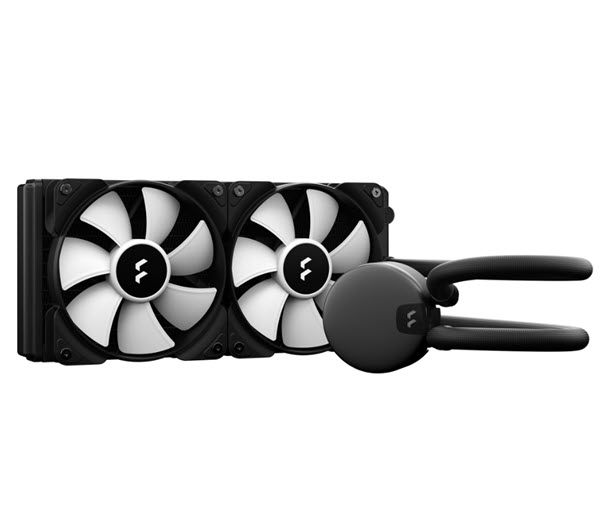

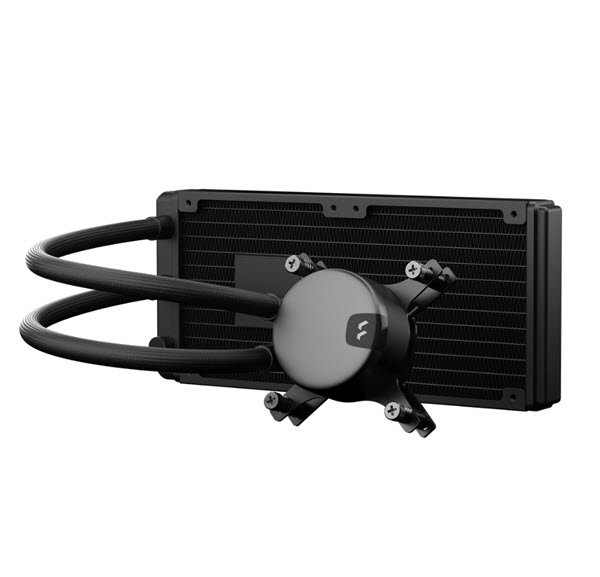

Lumen S24 RGB V2

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI

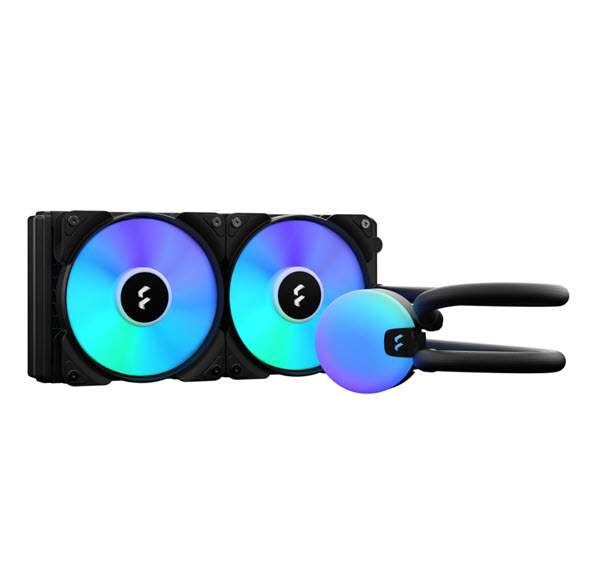

Six ARGB LEDs are yours to command via your motherboard or controller

The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation

Compatible with LGA 1700 and AM5

Low-permeability rubber tubes with braided nylon sleeves

Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Highlights

• Sockets supported (Intel): LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066/ * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
• Sockets supported (AMD): AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
• Thermal paste: Pre-applied
• Tube length: 400mm
• Tube material: Low-permeability rubber with braided nylon sleeve
• Fittings, block side: Articulating 90-degree Elbow
• Fittings, radiator side: Barbed fitting
• Block height: 43mm
• Block measurements (with fittings): 79 x 67 mm
• Block diameter (main block body): 67 mm
• Fan type: Aspect 12 RGB PWM
• Rotational speed: 500–2000 RPM
• Fan bearing: Rifle bearings
• Fan PWM control: Yes
• Fan acoustical noise: <10–33.2 dBA
• Fan maximum air flow: 13-56 CFM
• Fan maximum static pressure: 0.230–2.34 mm H2O
• Fan input voltage: 12V
• Fan maximum input current: 0.37A
• Fan MTTF: 90,000 hours
• Pump Rotational speed: 4000 ± 10% RPM
• Bearing type: Ceramic
• PWM control: No
• Pump Acoustical noise (full speed): 22 dBA
• Pump Maximum pressure: 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
• Pump Input voltage: 12V DC
• Pump Input current (without fans): 0.34 A
• Pump MTTF: 50 000 hours
• Radiator dimensions: 272 x 120 x 27 mm
• Radiator housing material: Aluminum
• Radiator fin material: Aluminum
• Radiator fan screw threads: 6-32
• Compatible products: Torrent, Define 7, Meshify 2 Compact

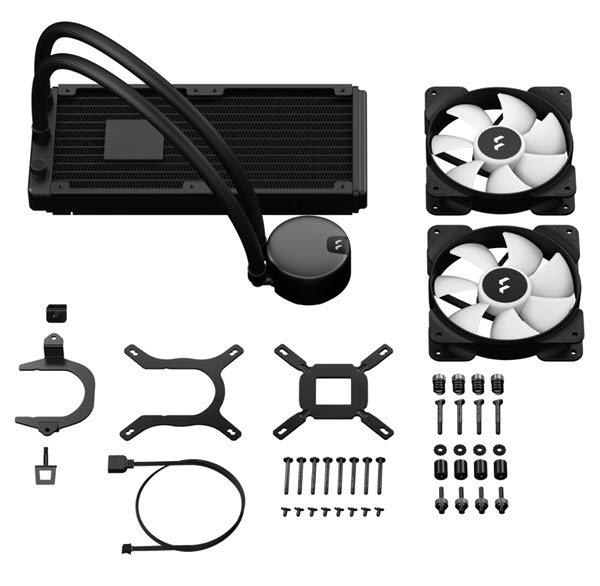

• Package contents: CPU Cooler Assembly, 2x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
• Warranty: 5 Years
