SWAFAN EX12 ARGB
SWAFAN EX12 ARGB brings magnetic force design to ARGB fans while keeping the iconic swappable fan blade design. Daisy-chaining up to 3 fans per cable improves fan connection efficiency and convenience while enhancing cable management for PC building.

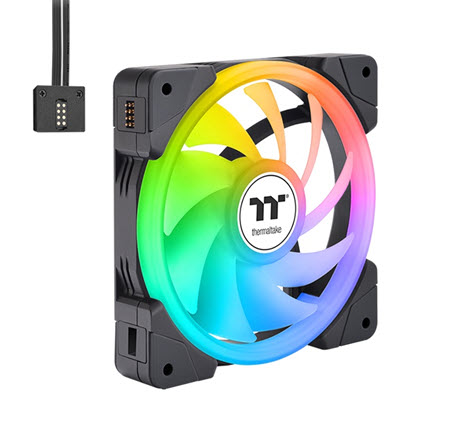

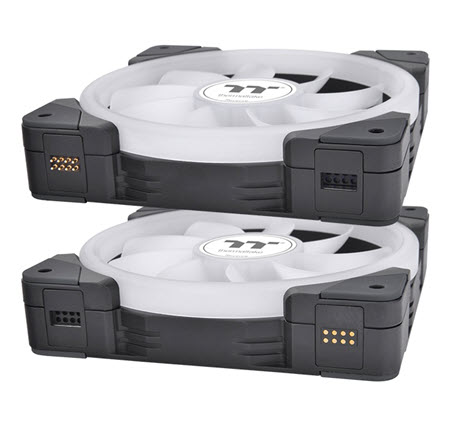

Our magnetic force design ARGB version enables the connection of both the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector; simply placing the fans side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.
Caution: Due to safety and motherboard software signal limitations, SWAFAN EX ARGB is only recommended to daisy-chain maximum 5 fans per cable.
Highlights
- FAN DIMENSION: 120 x 120 x 25 mm
- INTERFACE: 2510-4 PIN PWM, 5V ARGB header-3PIN
- FAN STARTED VOLTAGE: 9.0 V
- FAN RATED VOLTAGE: 12 V & 5V
- RATED CURRENT: 12 V - 0.27 A , 5 V – 0.72 A (one fan)
- POWER INPUT: 12 V – 3.24 W , 5 V – 3.6 W (one fan)
- FAN SPEED: PWM 500 ~ 2000 R.P.M
- MAX. AIR PRESSURE: Standard Fan Blade : 2.39 mm-H2O (one fan), Reverse Fan Blade : 2.02 mm-H2O (one fan)
- MAX AIR FLOW: Standard Fan Blade : 57.11 CFM (one fan), Reverse Fan Blade : 56.26 CFM (one fan)
- NOISE: Standard Fan Blade : 30.6 dB-A (one fan), Reverse Fan Blade : 32.5 dB-A (one fan)
- BEARING TYPE: Hydraulic Bearing
- LIFE EXPECTATION: 40,000 hrs,25?
- In The Box: Fan Frames x 3, ,

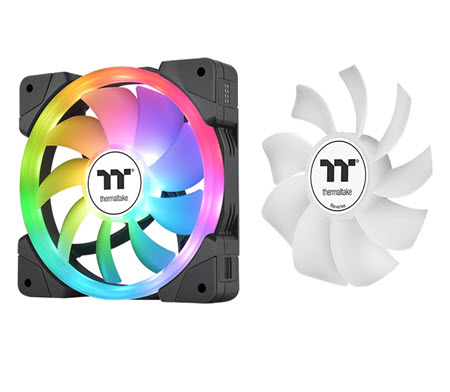

Standard Fan Blade x 3 (Pre-installed),
Reverse Fan Blade x 3,
Cable x 3
