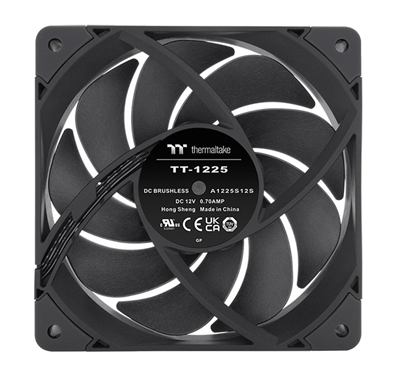

TOUGHFAN 12
Our premier TOUGHFAN 12 Pro features an advanced blade design that provides stronger airflow and static pressure, making it ideal for high-performance applications such as chassis, air and liquid cooling, and heavy-duty operations. Furthermore, its tight tip clearance design helps to reduce airflow leakage and improve overall air intake
The TOUGHFAN 12 Pro, a new and improved version of the classic TOUGHFAN, boasts several enhancements. It features 9 extended and widened fan blades, which guarantee exceptional airflow and static pressure for enhanced cooling performance. Additionally, the fan blades are meticulously crafted from Liquid Crystal Polymer (LCP), a material that effectively minimizes vibrations when operating at maximum speed.
With new technology and craftsmanship, TOUGHFAN 12 Pro can provide an outstanding performance of 70.8 CFM airflow, and 3.19-H2O static pressure under 22.6 dB-A noise level, which greatly upgrades our TOUGHFAN series.
The TOUGHFAN Pro is designed for all cooling applications. It's the perfect go-to solution, whether you're using it as a radiator fan or on an air cooler. Level up your cooling performance with the TOUGHFAN Pro for superior results.
Highlights
- FAN DIMENSION: 120 x 120 x 25 mm
- STARTED VOLTAGE: 6 V
- RATED CURRENT: 0.19 A
- RATED VOLTAGE: 12 V
- POWER INPUT: 2.28 W
- FAN SPEED: PWM 500~2000 R.P.M, With L.N.C PWM 500~1500 R.P.M
- STATIC PRESSURE: 3.19 mm-H2O, With L.N.C 1.72 mm-H2O
- AIR FLOW: 70.8 CFM, With L.N.C 49.13 CFM
- NOISE LEVEL: 22.6 dB-A, With L.N.C 18.3 dB-A
- BEARING TYPE: Hydraulic Bearing Gen.2
- LIFE EXPECTATION: 40,000 hrs,25?
- CONNECTOR: 4 PIN PWM
