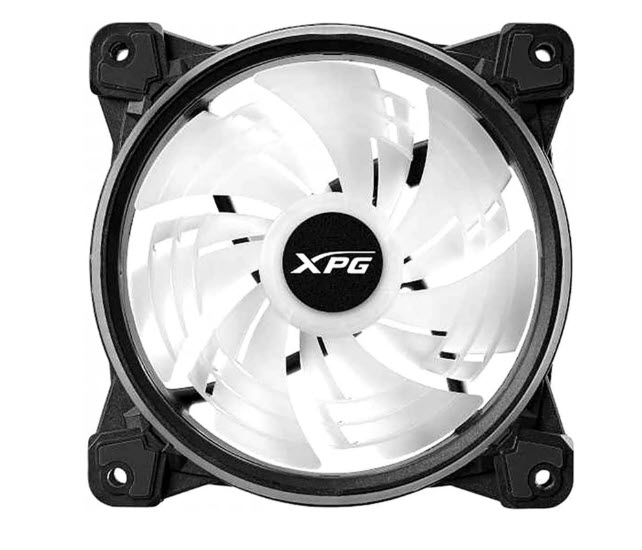

XPG HURRICANE 120
XPG HURRICANE 120 ARGB PWM fan offers more than just mesmerizing dual-ring lighting effects. The fan speed runs up to 2,000 RPM, generating up to 61.5 CFM of cool air with 1.42 mmAq of static pressure.

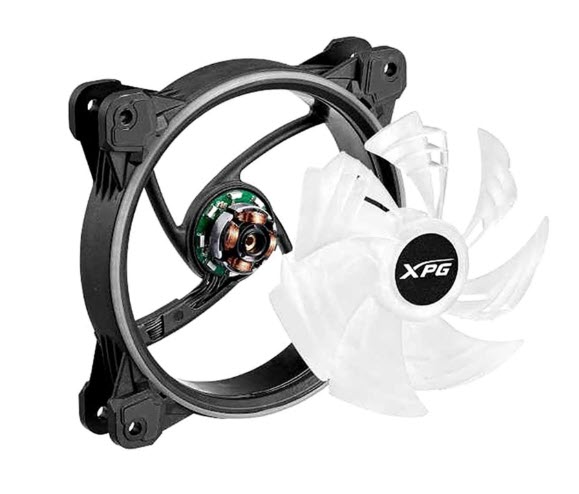

The fluid lubricates between the bearings and shaft when the shaft rotates, offers smoother operation, hence lower noise, better cooling efficiency, lower power consumption, and longer fan life expectancy.
Innovative dual-layer fan blade design is comprised of the Main Blade and the Booster Blade. Both function simultaneously to enhance airflow and static pressure, while minimizing wind resistance hence less noise during operation.
Pulse Width Modulation (PWM) allows the fan to track component’s temperature and to alter fan speed RPM accordingly.
Both the fan blade design and the FDB contribute to its overall silent fan operation. The anti-vibration rubber pads further minimize the noise, averaging at a level of 18.17 dBA.
Highlights
- Dimensions: 120 x 120 x 25mm
- Bearing Type: Fluid Dynamic Bearing
- Connector: 4-Pin
- Speed (RPM): 600 ~ 2000 RPM ± 10%
- Fan Max Air Flow (CFM): 61.5 CFM
- Fan Max Static Pressure (mmH2O): 1.42 mm H2O
- Fan Noise Level (dBA): 18.17 dBA (avg.)
- Fan Rated Voltage: DC 12V
- Fan Starting Voltage: DC 3.5V
- Fan Operating Voltage: DC 3.5V~12.6V
- Fan Rated Current: 0.2A (Max)
- Fan Power Dissipation: 2.16W
- Fan Protection: Auto-Restart
- MTTF: 230,000 Hours
- Cable Length: 610mm ± 10% with Daisy-Chain Capable
- Warranty: 2 Years
