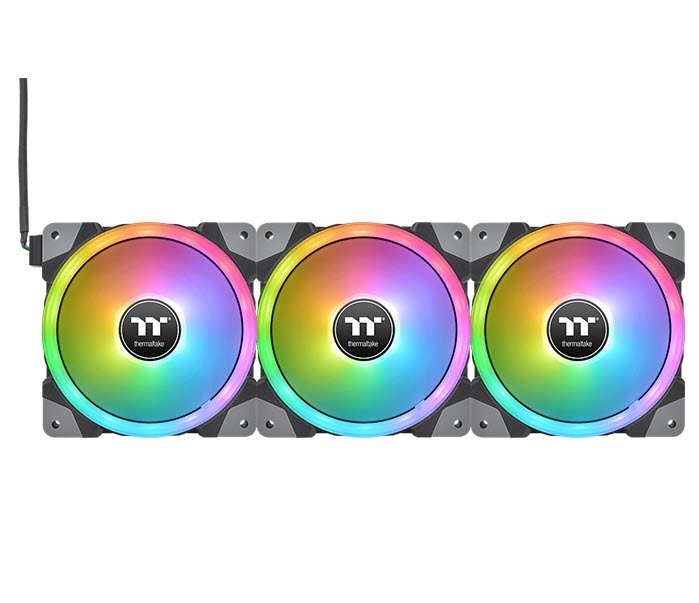

ThermalTake SWAFAN EX12 RGB PC Cooling Fan TT Premium Edition (3-Fan Pack)
Product Type:
Cooling Products
Type Detail:
120mm Fans
Manufacturer:
Thermaltake
Manufacturer #:
CL-F143-PL12SW-A
Part Status:
Special Order Only
Milwaukee PC SKU:
111825
Price:
$122.99



SWAFAN EX12 RGB

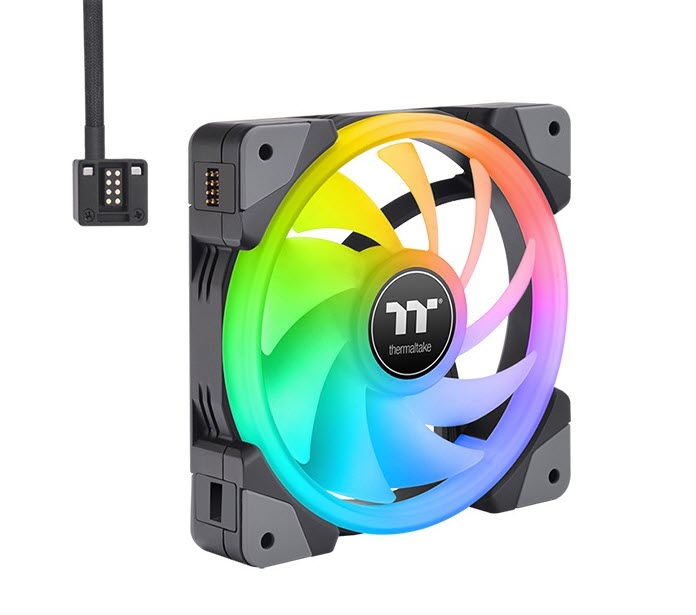

Snap into a better way to cool your RGB with the SWAFAN EX 12 RGB Series. With built-in Neodymium magnets on each fan, it’s a snap to build and even better to manage with reduced cables in your case. Swap to reversable fan blades included to support push or pull configurations and unlock the full potential of both cooling and RGB lighting.

Gain more flexibility for your cooling demands on more configurations with less compromises. Feel the difference of high-performance airflow in either direction, without having to turn your back on RGB ever again.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply bearing lubricant that is include in the package if needed.

Adding to our RGB Ecosystem, take control of your SWAFAN EX with easy layouts to accommodate configurations and number of fans chained together. Control them all for easy sync options or setup individual custom LED profiles to raise your RGB to the next level with the latest TT RGB Plus 2.0 Software.

Highlights

  • FAN DIMENSION: 120 x 120 x 25 mm
  • INTERFACE: USB 2.0 connectors (9 Pin)
  • STARTED VOLTAGE: 9.0 V
  • FAN STARTED VOLTAGE: 12 V & 5V
  • FAN RATED VOLTAGE: 12 V & 5V
  • RATED CURRENT: 12 V - 0.21 A , 5 V – 0.7 A (only one fan)
  • POWER INPUT: 12 V – 2.52 W , 5 V – 3.5 W (only one fan)
  • FAN SPEED: 500 ~ 2000 R.P.M (2510-4Pin)
  • MAX. AIR PRESSURE: Standard Fan Blade : 2.39 mm-H2O (only one fan) - Reverse Fan Blade : 2.02 mm-H2O (only one fan)
  • MAX AIR FLOW: Standard Fan Blade : 57.11 CFM (only one fan) - Reverse Fan Blade 2 : 56.26 CFM (only one fan)
  • NOISE: Standard Fan Blade : 30.6 dB-A (only one fan) - Reverse Fan Blade : 32.5 dB-A (only one fan)
  • BEARING TYPE: Hydraulic Bearing
  • LIFE EXPECTATION: 40,000 hrs,25?
