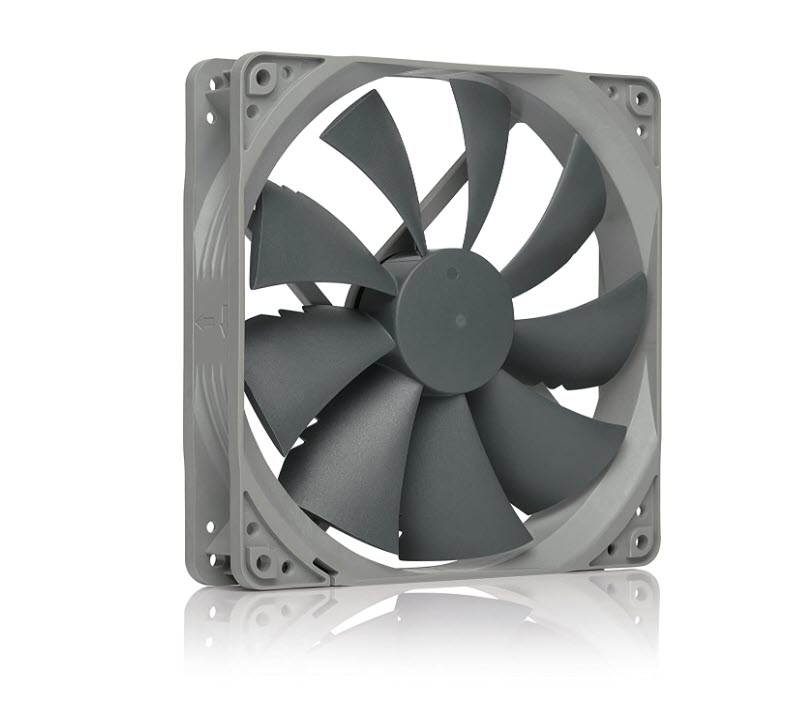

Noctua NF-P14s redux

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favorite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components.

The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point.

The performance-oriented top speed of the 1500rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.

Highlights

Size: 140 x 140 x 25 mm
Mounting hole spacing: 124,5x124,5 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 40cm
Bearing: SSO-Bearing
Rotational speed: (+/- 10%) 1500 RPM
Min. rotational speed @ 20% PWM (+/-20%): 450 RPM
Airflow: 133,7 m³/h
Acoustical noise: 25,8 dB(A)
Static pressure: 1,91 mm H2O
Input power (max.): 2,4 W
Input current (max.): 0,2 A
Operating voltage: 12 V
MTTF: > 150.000 h
Included: Fan, 4 Fan Screws
Warranty 6 years
