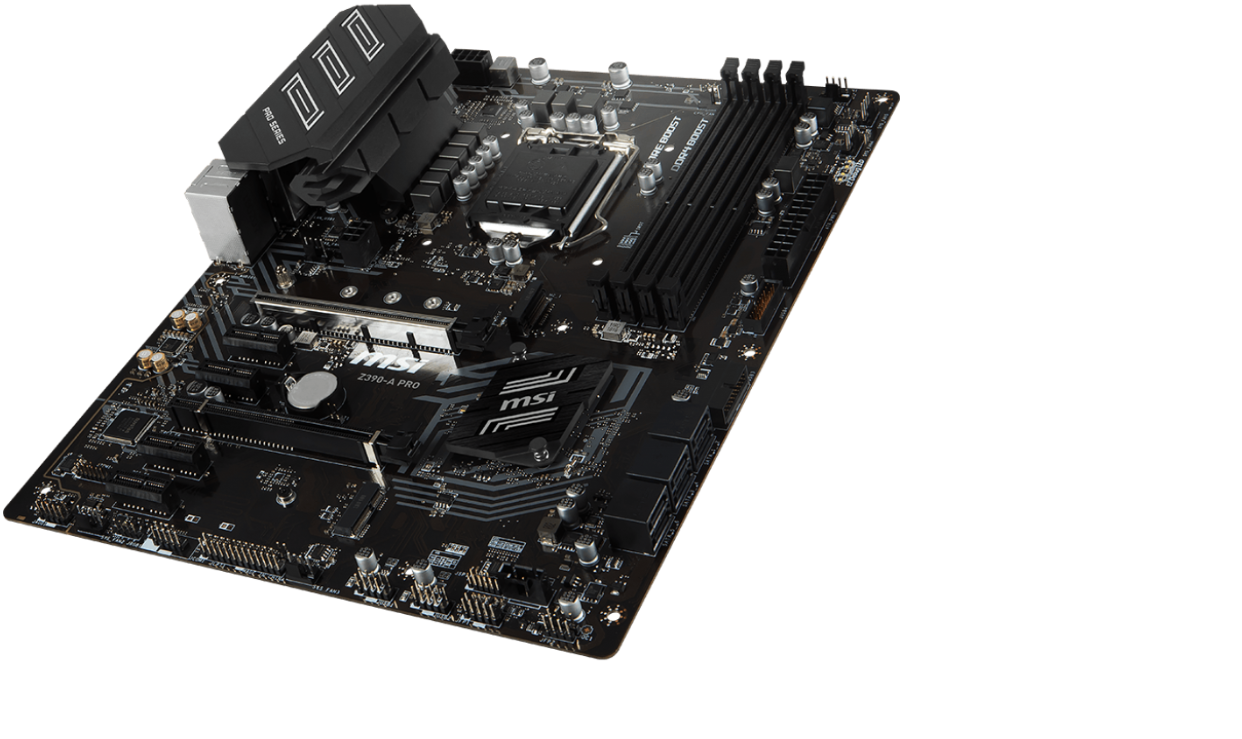

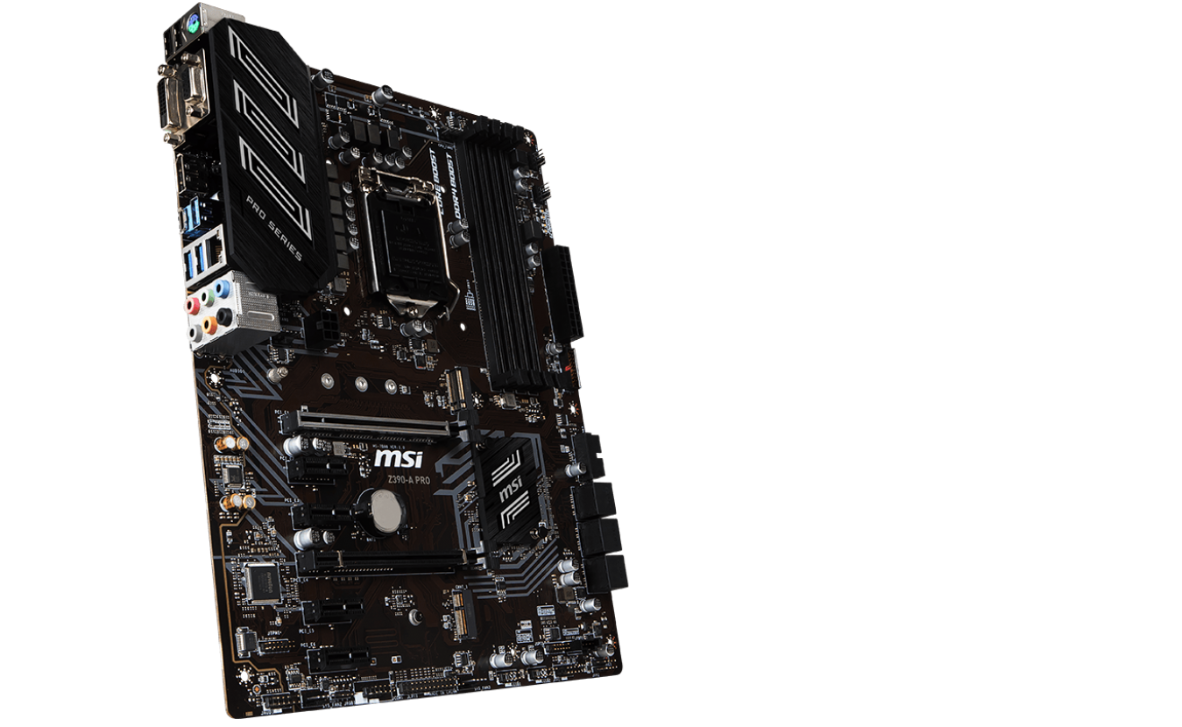

MSI Z390 A PRO ATX 9th Gen 300 Series
Product Type:
Motherboards
Type Detail:
Intel Socket 1151 (3xx Chipset)
Manufacturer:
MSI
Manufacturer #:
Z390APRO
Part Status:
Special Order Only
Milwaukee PC SKU:
263935
Price:
$159.99

MSIZ390-A PRO Intel ATX Motherboard

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1151
Brand: MSI
Chipset Manufacture: Intel
Form Factor: ATX
SLI Support: NONE
Crossfire Support: YES
Number of Memory Slots: 4 Slots
Max Memory: 64GB
Memory Type: DDR4
PCI Express x16 Slots: 2 Slots
PCI Express x1 Slots: 4 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: RAID 0/1/5/10
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: 1 Slots
NVMe Support: Yes
eSata Ports: None
Legacy Ports: NONE
USB 2.0 Ports: 2 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: 1 Port
DVI Ports: 1 Port
HDMI Ports: None


MSI Z390 A PRO ATX 9th Gen 300 Series


Form Factor

  • ATX, 12 in. x 9.6 in.

CPU

  • Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Chipset

  • Intel® Z390 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB[1] ?Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC) / 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz •Supports Dual Channel mode •Supports non-ECC, un-buffered memory •Supports Intel® Extreme Memory Profile (XMP)

Graphics

  • • 1 x VGA port, supports a maximum resolution of 2048 x 1536@50Hz, 2048 x 1280@60Hz, 1920 x 1200@60Hz • 1 x DVI-D port, supports a maximum resolution of 1920 x 1200@60Hz • 1 x DisplayPort, supports a maximum resolution of 4096 x 2304@60Hz

Multi-Graphics

  • Supports 2-Way AMD® CrossFire™ Technology

Expansion Slots

  • • 2 x PCIe 3.0 x16 slots • 4 x PCIe 3.0 x1 slots • 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

Storage

  • Intel® Z390 Chipset; • 6 x SATA 6Gb/s ports[1] • 1 x M.2 slot (Key M) ?Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ? Intel® Optane™ Memory Ready[2] 1 - The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot. 2 - Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. Intel® Z390 Chipset; • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

Audio

  • Realtek® ALC892 Codec; • 7.1-Channel High Definition Audio

USB Ports

  • Intel® Z390 Chipset; • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel) • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x 6-pin ATX 12V power connector • 6 x SATA 6Gb/s connectors • 2 x M.2 slots (1 M-Key slot,1 E-Key slot) • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) • 1 x 4-pin CPU fan connector • 1 x 4-pin Water Pump connector • 5 x 4-pin system fan connectors • 1 x Front panel audio connector • 2 x System panel connectors • 1 x Chassis Intrusion connector • 1 x 4-pin RGB LED connector • 1 x Serial Port connector • 1 x Clear CMOS jumper • 1 x Parallel port connector • 1 x TPM module connector • 1 x thunderbolt Add-on card connector • 1 x Front OC button connector

Back I/O Ports

  • 1 x PS/2 Combo Port, 2 x USB 2.0 Ports,3 x USB 3.1 Gen2 Type-A Ports, 1 x USB 3.1 Gen2 TypeC Port, VGA Port, DVI-D Port, DisplayPort, RJ-45 Port, 6 x HD Audio Connectors
